Thermalright Peerless Vision 360 ARGB White V2 Review: High-Pressure LCD Liquid Cooling

Mizex is reader-supported. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.
● HIGHLY RATED
Site Score
4.4 / 5.0
Buyer Guidance: An ideal choice for builders seeking premium LCD pump telemetry and formidable thermal displacement without paying typical flagship cooler premiums, provided fan curves are tuned to mitigate full-speed noise.
Check Availability & Pricing
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.5 / 5.0
Build Quality & Physical Design (20%) 4.3 / 5.0
Thermal, Power & Acoustics (20%) 4.0 / 5.0
Reliability & Stability (20%) 4.5 / 5.0
Buyer Value (10%) 4.7 / 5.0
Score Rationale
Potent static pressure delivery and an integrated 3.95-inch 480x480 LCD pump display anchor the composite rating of 4.4. Engineering & Architecture (4.5) is marked by a 3000 RPM PWM pump, comprehensive Intel LGA1851 and AMD AM5 socket support, and dedicated TRCC software telemetry integration. Build quality (4.3) reflects a rigid aluminum radiator assembly, clean white aesthetic tolerances, and durable S-FDB fan bearings. Thermal and acoustic profile (4.0) balances massive 85.35 CFM airflow and 2.95 mm H2O static pressure against elevated peak acoustics of 33.3 dBA at 2400 RPM. Long-term reliability (4.5) is backed by a 5-year manufacturer warranty and a closed-loop system free of community defect reports, while buyer value (4.7) is exceptional for a high-performance 360 mm liquid cooler equipped with an onboard digital display.
Audited today
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
Scores adjust dynamically as verified community ratings accumulate.
✔ Pros
  • Integrated 3.95-inch 480x480 pump LCD display provides real-time system monitoring and custom graphics via TRCC software
  • Upgraded TL-N12W-R9-S V2 fans deliver exceptional static pressure (2.95 mm H2O) and airflow (85.35 CFM)
  • Full compatibility with modern platforms including Intel LGA1851/1700 and AMD AM5/AM4
  • Generous 5-year manufacturer warranty with long-life S-FDB fan bearings
✖ Cons
  • Peak fan rotational speed of 2400 RPM generates noticeable acoustic noise reaching 33.3 dBA under maximum load
  • Removes legacy Intel LGA2011 and LGA2066 HEDT socket mounting present on the previous revision

Overview

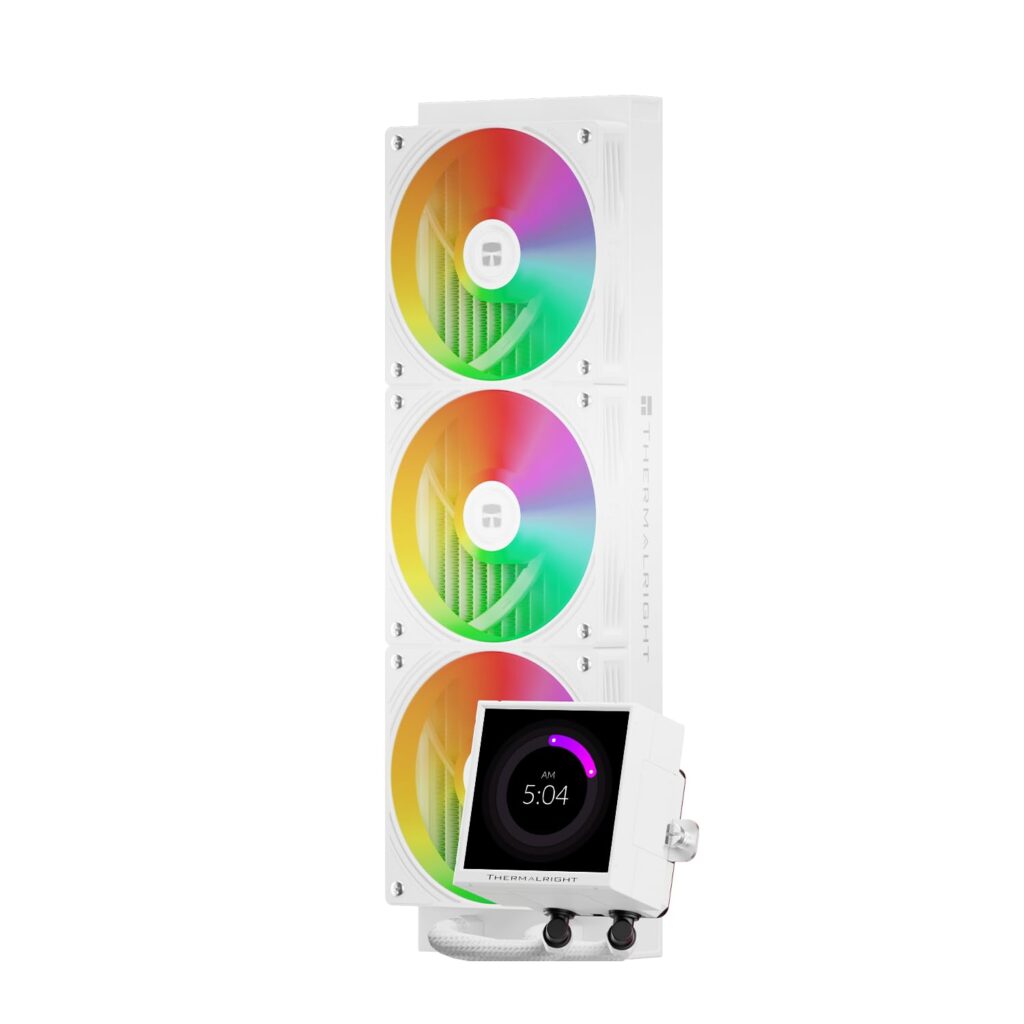

Engineered around an expansive 397 mm aluminum radiator and a high-resolution 3.95-inch pump-cap display, this liquid cooling assembly merges aggressive thermal displacement with customizable hardware monitoring. The water block houses a 3000 RPM PWM-regulated pump motor driven by a 12V DC rail, circulating coolant through sealed low-permeation tubing to maintain continuous fluid velocity across modern CPU heat spreaders. Surrounding the pump assembly, a 480×480 resolution square display interfaces with Thermalright’s TRCC control software, delivering real-time telemetry updates and visual diagnostics directly above the socket area.

Thermal dissipation across the 27 mm fin stack relies on three 120 mm TL-N12W-R9-S V2 fans rated up to 2400 RPM. Driven by fluid dynamic S-FDB bearings, each fan pushes up to 85.35 CFM of airflow against a maximum static pressure of 2.95 mm H2O, overcoming radiator fin resistance at the cost of higher peak acoustics reaching 33.3 dBA under unrestricted PWM loads. Standard 4-pin PWM and 3-pin 5V ARGB cabling ensures modular motherboard integration and daisy-chaining, avoiding proprietary controller lock-in.

Socket support spans current consumer platforms, including Intel LGA1851, LGA1700, and AMD AM5/AM4, though legacy high-end desktop sockets such as LGA2011 and LGA2066 have been dropped in this V2 revision. Supported by a 5-year manufacturer warranty and a robust mounting bracket system, the unit establishes a reliable, serviceable closed-loop cooling solution for modern thermal envelopes.

Technical Specifications

Brand Thermalright
Model Peerless Vision 360 ARGB White V2
Radiator Dimensions 15.63 x 4.72 x 1.06 in (397 x 120 x 27 mm)
Radiator Material Aluminum
Pump Dimensions 3.19 x 3.11 x 2.66 in (81 x 79 x 67.6 mm)
Pump Rated Speed 3000 RPM ± 10%
Pump Rated Voltage 12V DC
Pump Connector 4-Pin PWM
Display Size 3.95 in (100.3 mm)
Display Resolution 480 x 480
Fan Model TL-N12W-R9-S V2
Fan Dimensions 4.72 x 4.72 x 0.98 in (120 x 120 x 25 mm)
Fan Rated Speed 2400 RPM ± 10%
Fan Maximum Airflow 85.35 CFM
Fan Maximum Static Pressure 2.95 mm H2O
Fan Maximum Noise Level 33.3 dBA
Fan Bearing Type S-FDB Bearing
Fan Connector 4-Pin PWM
ARGB Connector 3-Pin 5V ARGB
Socket Compatibility (Intel) LGA115X / 1200 / 1700 / 1851
Socket Compatibility (AMD) AM4 / AM5
Software Support TRCC Control Software
Warranty 5 Years
📋
