- Integrated 3.95-inch 480x480 square pump block display for hardware telemetry and visual customization
- High-performance TL-N12-R9-S V2 fans delivering up to 85.35 CFM airflow and 2.95 mm H2O static pressure
- Comprehensive platform compatibility including modern Intel LGA1851/1700 and AMD AM5 sockets
- Long-term operational peace of mind backed by a 5-year manufacturer warranty
- Elevated acoustic output reaching up to 33.3 dBA under maximum 2400 RPM fan speeds
- Substantial 15.63 in (397 mm) radiator footprint requires careful case clearance verification
Overview

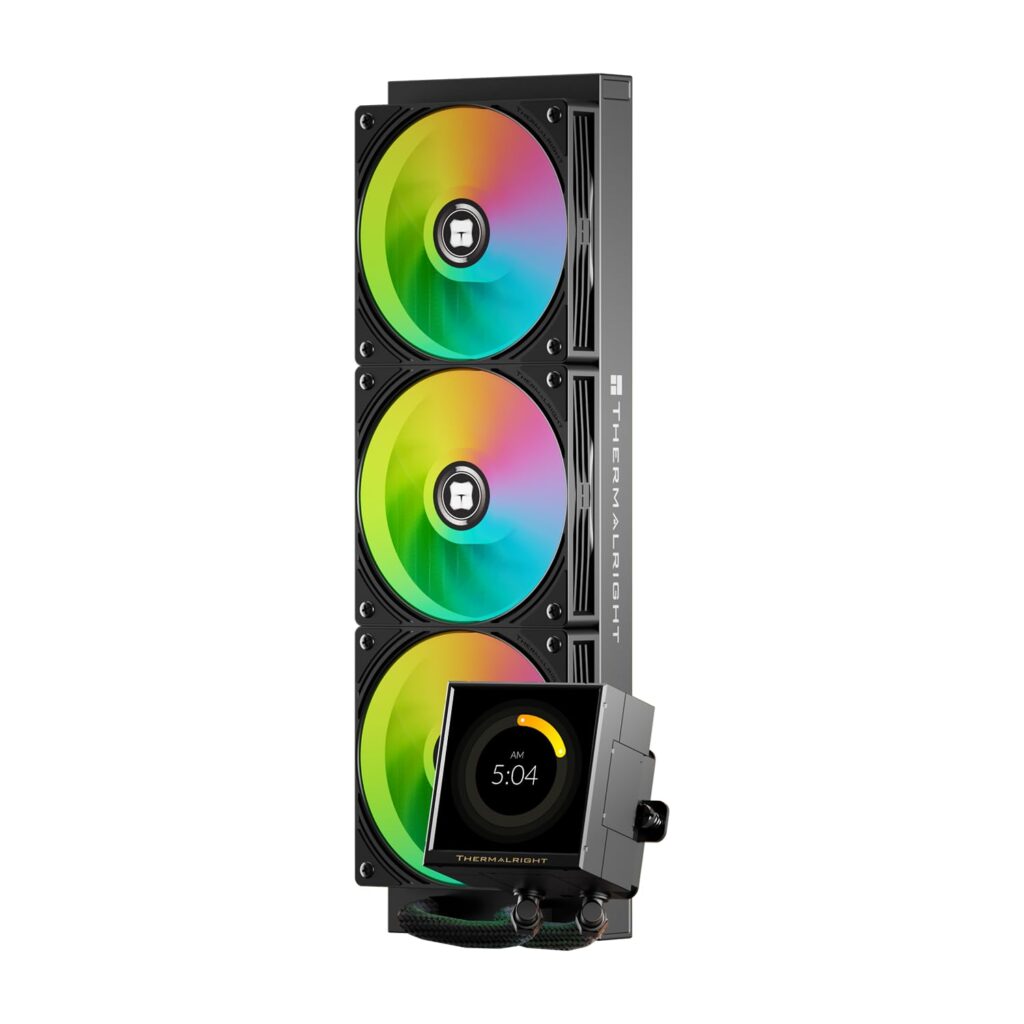

Combining a high-flow 3000 RPM pump mechanism with a dense 360 mm aluminum radiator assembly, Thermalright’s Peerless Vision 360 ARGB Black V2 targets demanding thermal envelopes by driving fluid across micro-channel cooling fins and exhausting heat through three high-pressure fans. The liquid loop relies on a closed-loop architecture driven by a 12V DC pump operating via a 4-pin PWM connector, enabling precise rotational throttling between idle states and maximum 3000 RPM flow. At the core of the pump block, an integrated 3.95 in (100.3 mm) square display delivers 480×480 resolution for real-time hardware telemetry and custom visuals, consolidating thermal monitoring directly onto the CPU socket footprint without requiring external secondary screens.
Airflow is delivered by a trio of 120 x 120 x 25 mm (4.72 x 4.72 x 0.98 in) TL-N12-R9-S V2 fans equipped with S-FDB (Stalgorithm Fluid Dynamic Bearing) assemblies engineered for minimal shaft friction and rotational runout. Under full PWM duty cycles, each fan reaches up to 2400 RPM, producing a rated peak airflow of 85.35 CFM and a static pressure of 2.95 mm H2O to penetrate the 27 mm (1.06 in) thick radiator fins. While this pressure curve delivers strong thermal dissipation headroom for modern high-wattage desktop platforms, acoustic output scales commensurately to a rated ceiling of 33.3 dBA at maximum rotational velocity. System builders must also account for physical packaging constraints: the overall radiator length of 15.63 in (397 mm) demands strict chassis and top-panel clearance verification to avoid collisions with tall motherboard VRM heatsinks or high-profile memory modules.
Platform integration spans modern consumer architectures, with out-of-the-box hardware mounting for Intel LGA115X, 1200, 1700, and upcoming LGA1851 sockets alongside AMD AM4 and AM5 platforms. Standardized 4-pin PWM headers govern pump and fan curves through standard motherboard BIOS profiles, while 3-pin 5V ARGB cabling ensures vendor-agnostic addressable illumination synchronization. Backed by a 5-year manufacturer warranty and the long-term wear resistance of fluid dynamic bearings, the assembly provides dependable closed-loop mechanical reliability for sustained daily workloads.
Technical Specifications
| Brand | Thermalright |
| Model | Peerless Vision 360 ARGB Black V2 |
| Radiator Dimensions | 15.63 x 4.72 x 1.06 in (397 x 120 x 27 mm) |
| Radiator Material | Aluminum |
| Pump Dimensions | 3.19 x 3.11 x 2.66 in (81 x 79 x 67.6 mm) |
| Pump Speed | 3000 RPM ± 10% |
| Pump Rated Voltage | 12V DC |
| Pump Connector | 4-pin PWM |
| Display Size | 3.95 in (100.3 mm) |
| Display Resolution | 480 x 480 |
| Fan Model | TL-N12-R9-S V2 |
| Fan Quantity | 3 |
| Fan Dimensions | 4.72 x 4.72 x 0.98 in (120 x 120 x 25 mm) |
| Fan Speed | 2400 RPM (MAX) |
| Fan Airflow | 85.35 CFM (MAX) |
| Fan Static Pressure | 2.95 mm H2O (MAX) |
| Fan Noise Level | 33.3 dBA (MAX) |
| Fan Bearing Type | S-FDB Bearing |
| Fan Connector | 4-pin PWM |
| Lighting Connector | 3-pin 5V ARGB |
| Supported Intel Sockets | LGA115X / 1200 / 1700 / 1851 |
| Supported AMD Sockets | AM4 / AM5 |
| Warranty | 5 Years |
Primary Sources & Audited Citations
Recommended Alternatives in CPU Coolers (AIO & Air)
At a Glance
How reliable is the Thermalright Peerless Vision 360 ARGB Black V2 Review: High Static Pressure With LCD Telemetry according to Mizex audits?
Builders seeking comprehensive system telemetry and aggressive thermal dissipation will find exceptional value in this 360 mm AIO, provided chassis clearance accommodates the 15.63 in (397 mm) radiator assembly and fan curves are tuned to avoid peak 33.3 dBA acoustics.
What are the known quirks or drawbacks of the Thermalright Peerless Vision 360 ARGB Black V2 Review: High Static Pressure With LCD Telemetry?
Our reliability audit identified the following documented caveats:
- Elevated acoustic output reaching up to 33.3 dBA under maximum 2400 RPM fan speeds
- Substantial 15.63 in (397 mm) radiator footprint requires careful case clearance verification
What are the key engineering highlights of the Thermalright Peerless Vision 360 ARGB Black V2 Review: High Static Pressure With LCD Telemetry?
The top strengths recorded in our evaluation include:
- Integrated 3.95-inch 480x480 square pump block display for hardware telemetry and visual customization
- High-performance TL-N12-R9-S V2 fans delivering up to 85.35 CFM airflow and 2.95 mm H2O static pressure
- Comprehensive platform compatibility including modern Intel LGA1851/1700 and AMD AM5 sockets
- Long-term operational peace of mind backed by a 5-year manufacturer warranty
