Corsair Nautilus II 360 RS LCD Review: DisplayPort Telemetry Meets Unified Airflow

Mizex is reader-supported. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.
● HIGHLY RATED
Site Score
4.4 / 5.0
Buyer Guidance: An excellent choice for enthusiasts demanding fluid 60Hz on-pump telemetry, provided your GPU has a spare DisplayPort connection to drive the display.
Check Availability & Pricing
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.5 / 5.0
Build Quality & Physical Design (20%) 4.4 / 5.0
Thermal, Power & Acoustics (20%) 4.3 / 5.0
Reliability & Stability (20%) 4.6 / 5.0
Buyer Value (10%) 4.2 / 5.0
Score Rationale
A dedicated DisplayPort video pipeline powering the 3.5-inch 60Hz IPS pump display sets a high engineering standard (4.5), bypassing common USB data bandwidth bottlenecks found in competing smart liquid coolers. Build quality (4.4) benefits substantially from a unified frame that encases the three RS II fans, eliminating structural flex and frame vibration during operation. Thermal management (4.3) is driven by a redesigned cold plate engineered for enhanced CPU IHS contact paired with the FlowDrive 2S pump across the 360 mm radiator. Reliability (4.6) is reinforced by simplified daisy-chained 4-pin PWM wiring and a comprehensive 5-year manufacturer warranty. Buyer value (4.2) remains compelling for enthusiasts seeking secondary screen telemetry, though it requires dedicating a physical graphics display output to the cooling loop.
Audited today
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
Scores adjust dynamically as verified community ratings accumulate.
✔ Pros
  • Direct DisplayPort interface drives the 3.5-inch 480x640 IPS screen at a smooth 60Hz as an auxiliary display
  • Unified three-fan frame structure reduces vibration and simplifies chassis installation
  • Daisy-chained 4-pin PWM fan connectivity significantly minimizes cable clutter
  • Robust 5-year manufacturer warranty backing the FlowDrive 2S closed loop
✖ Cons
  • Requires an available physical DisplayPort output from the host graphics system
  • Unified fan frame prevents replacing individual fans independently

Overview

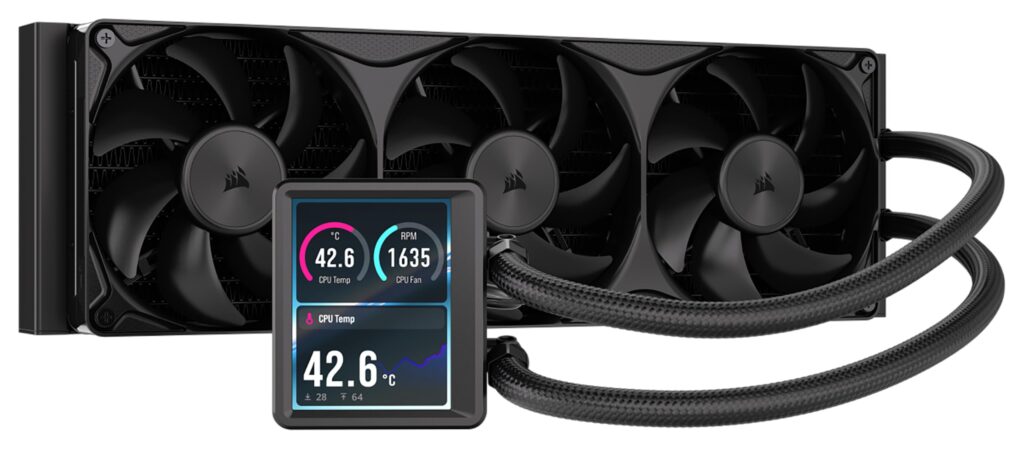

Routing video signals over a direct DisplayPort interface fundamentally alters how the integrated 3.5-inch 480×640 IPS LCD interacts with host hardware. Rather than relying on bandwidth-constrained USB pipelines that can introduce frame pacing stutter or high CPU overhead, the cooler exposes its 60Hz panel directly as an auxiliary operating system monitor. This display architecture is complemented by a streamlined wiring harness featuring daisy-chained 4-pin PWM fan headers, substantially reducing internal cable clutter across the chassis.

At the core of the fluid loop, the FlowDrive 2S pump works alongside a redesigned cold plate engineered to optimize thermal transfer over modern multi-die Intel and AMD socket geometries. Forced convection is handled by three RS II fans cast into a singular unified frame structure, which increases torsional rigidity and minimizes acoustic resonances between adjacent fan housings as air pushes across the 360 mm (14.17 in) radiator. System orchestration and real-time telemetry rendering are managed through Corsair iCUE and dedicated desktop widgets, while the entire closed-loop assembly is backed by a 5-year warranty.

Technical Specifications

Brand Corsair
Model Nautilus II 360 RS LCD
Radiator Size 360 mm (14.17 in)
Cooler Type All-in-One Liquid CPU Cooler
Pump Model FlowDrive 2S
Display Type IPS LCD
Display Size 3.5 in (88.9 mm)
Display Resolution 480 x 640 native
Display Refresh Rate 60 Hz
Display Interface DisplayPort
Fan Configuration Three RS II fans in unified frame
Fan Connector Daisy-chained 4-pin PWM
Cold Plate Redesigned copper cold plate
Socket Compatibility Intel and AMD
Software Ecosystem Corsair iCUE with iCUE Widgets
Color Options Black, White
Warranty 5 Years
📋
