Thermalright Mjolnir Vision 360 ARGB Black V2 Review: High-Static Pressure Liquid Cooling Array

Mizex is reader-supported. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.
● HIGHLY RATED
Site Score
4.4 / 5.0
Buyer Guidance: A reliable 360 mm closed-loop liquid cooler suited for multi-platform desktop builds, provided your chassis accommodates its 15.63 in (397 mm) radiator length.
Check Availability & Pricing
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.4 / 5.0
Build Quality & Physical Design (20%) 4.3 / 5.0
Thermal, Power & Acoustics (20%) 4.3 / 5.0
Reliability & Stability (20%) 4.6 / 5.0
Buyer Value (10%) 4.6 / 5.0
Score Rationale
Extensive multi-generational socket compatibility and a 5-year manufacturer warranty anchor the composite score of 4.4. Reliability (4.6) is reinforced by fluid dynamic S-FDB V2 bearings and standardized PWM/ARGB wiring that avoids proprietary controller failure points. Buyer value (4.6) is bolstered by turnkey support for both modern Intel LGA1851 and AMD AM5 platforms as well as legacy sockets. Engineering & Architecture (4.4) reflects solid pump block integration with 4-pin PWM modulation and TRCC software utility support. Build quality (4.3) exhibits tight structural tolerances across the 397 mm aluminum radiator, though clearance demands in compact cases require verification. Thermal management and acoustic profile (4.3) balances an airflow capacity of 69 CFM and 2.87 mm H2O static pressure against a 27 dBA ceiling at full 2150 RPM load.
Audited today
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
Scores adjust dynamically as verified community ratings accumulate.
✔ Pros
  • Triple TL-K12 fans with S-FDB V2 bearings provide 69 CFM airflow and 2.87 mm H2O static pressure
  • Extensive multi-socket compatibility covering Intel LGA1851/1700/1200/115X/2011/2066 and AMD AM4/AM5
  • Non-proprietary 4-pin PWM and 3-pin 5V ARGB interfaces prevent vendor lock-in
  • Backed by a 5-year manufacturer warranty
✖ Cons
  • Extended 15.63 in (397 mm) radiator footprint and 2.56 in (65 mm) pump height necessitate strict chassis clearance checks
  • Acoustic output rises to 27 dBA under maximum 2150 RPM operation

Overview

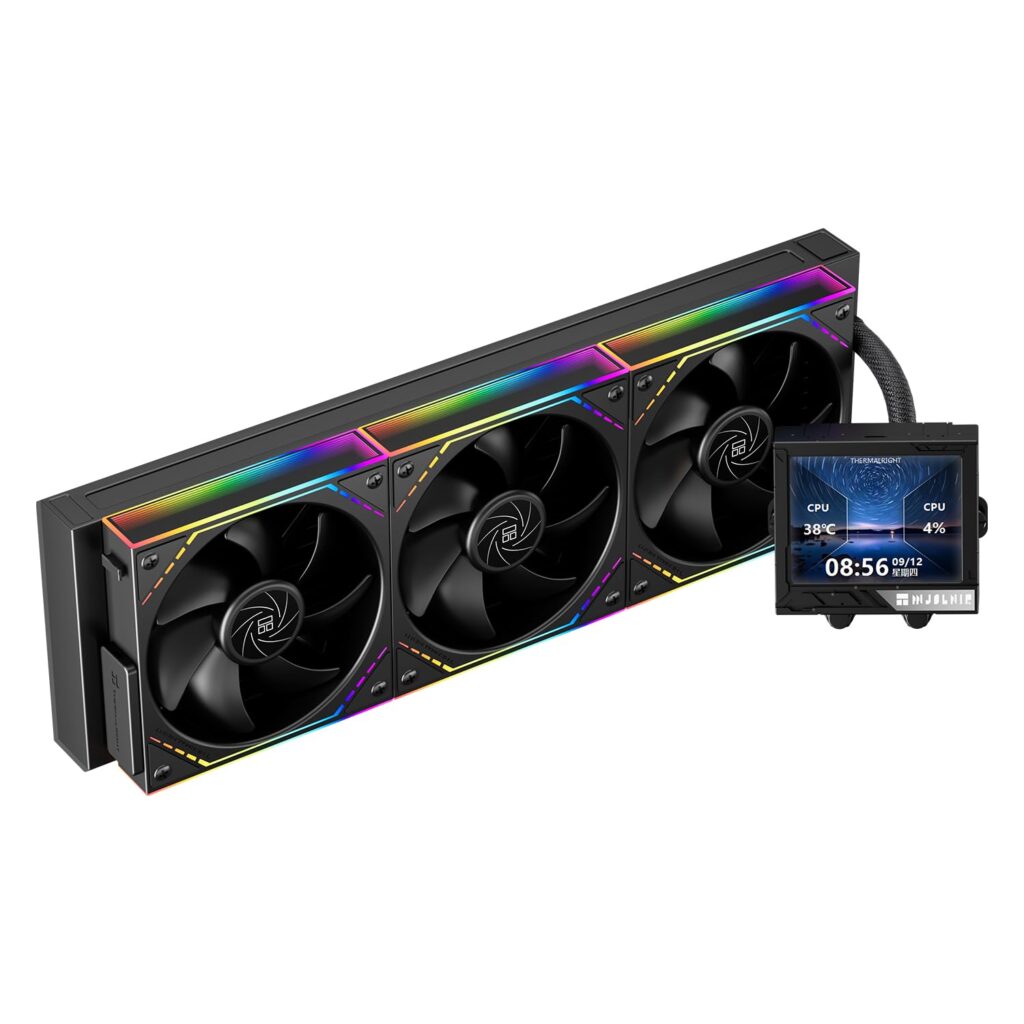

Generating up to 2.87 mm H2O of static pressure across a 15.63 x 4.72 x 1.06 in (397 x 120 x 27 mm) aluminum heat exchanger, fluid dynamic mechanical airflow defines the operational envelope of this closed-loop cooler. The thermal assembly deploys three 120 mm TL-K12 fans utilizing S-FDB V2 fluid dynamic bearings, moving up to 69 CFM of airflow through the dense fin stack. Operating acoustics reach an upper boundary of 27 dBA at the maximum 2150 RPM ceiling, enabling standard motherboard PWM fan curves to balance quiet day-to-day operation against peak cooling performance under sustained processor workloads.

Coolant circulation is managed by an 85 x 74 x 65 mm (3.35 x 2.91 x 2.56 in) pump block operating on a 12V DC rail. Speed modulation connects via a standard 4-pin PWM header, allowing direct motherboard telemetry and fan-curve slaving without requiring proprietary controller hardware. Hardware monitoring and visual control interface with the TRCC Control Software, while illumination conforms to standard 3-pin 5V ARGB pinouts for wide compatibility with existing motherboard lighting ecosystems. The mounting assembly includes broad multi-generational hardware encompassing Intel LGA115X, LGA1200, LGA1700, LGA1851, LGA2011, and LGA2066 alongside AMD AM4 and AM5 sockets.

Practical deployment inside standard mid-tower and full-tower chassis demands careful consideration of physical clearances. The 15.63 in (397 mm) total radiator length and 2.56 in (65 mm) pump block height require verified clearance in top-mount and front-mount locations, particularly when paired with high-profile motherboard heatsinks or tall memory modules. A 5-year manufacturer warranty reinforces the system’s long-term mechanical reliability, providing dependable closed-loop thermal mitigation for high-wattage desktop platforms.

Technical Specifications

Brand Thermalright
Model Mjolnir Vision 360 ARGB Black V2
Radiator Dimensions 15.63 x 4.72 x 1.06 in (397 x 120 x 27 mm)
Radiator Material Aluminum
Pump Dimensions 3.35 x 2.91 x 2.56 in (85 x 74 x 65 mm)
Pump Rated Voltage 12V DC
Pump Connector 4-pin PWM
Fan Model TL-K12
Fan Dimensions 4.72 x 4.72 x 0.98 in (120 x 120 x 25 mm)
Fan Weight 7.76 oz (220 g)
Fan Speed Max 2150 RPM ± 10%
Fan Airflow Max 69 CFM
Fan Static Pressure Max 2.87 mm H2O
Fan Noise Level Max 27 dBA
Fan Bearing Type S-FDB V2 Bearing
Fan Connector 4-pin PWM
Argb Connector 3-pin 5V ARGB
Socket Compatibility Intel LGA115X / LGA1200 / LGA1700 / LGA1851 / LGA2011 / LGA2066
Socket Compatibility Amd AM4 / AM5
Warranty 5 Years
Control Software TRCC Control Software
📋
