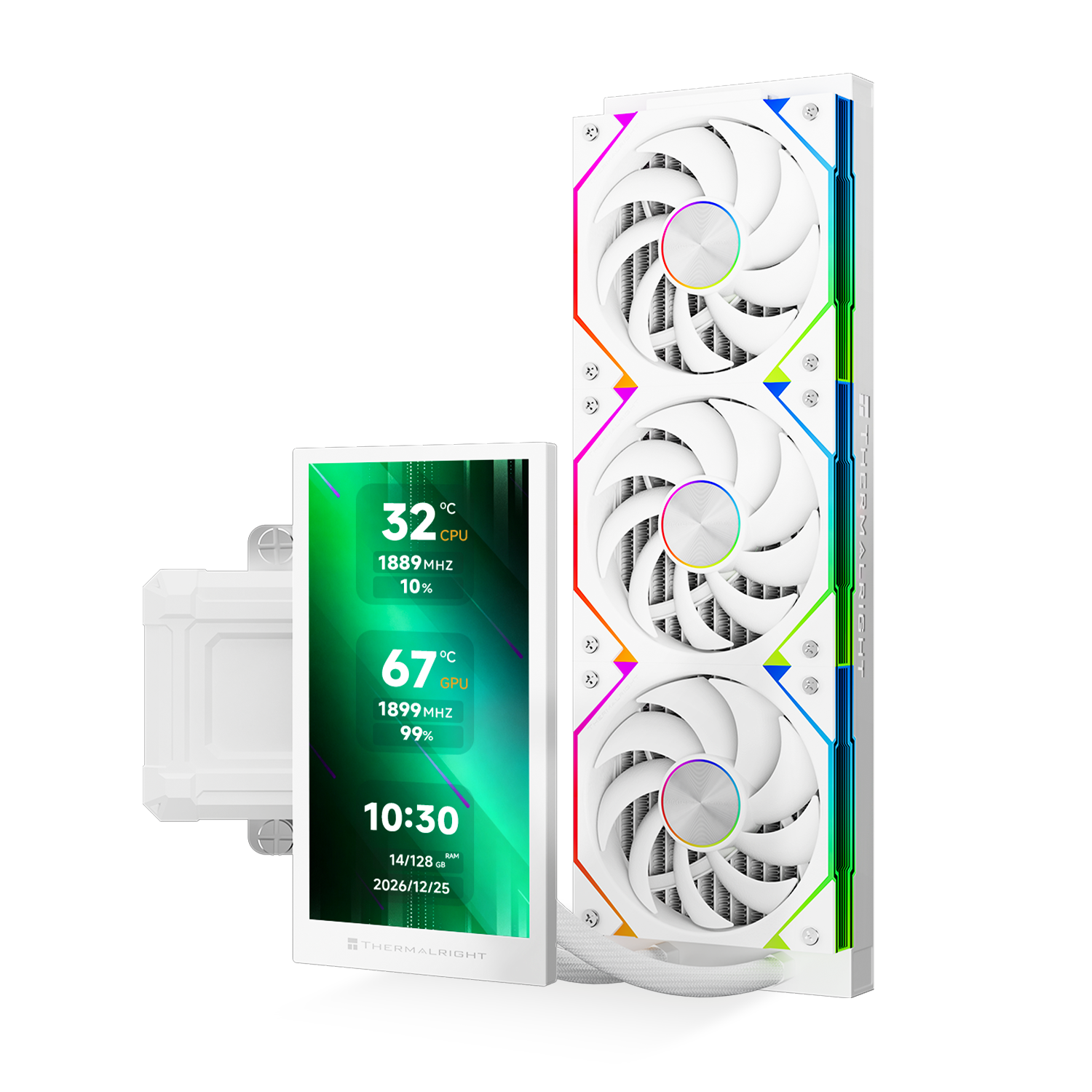

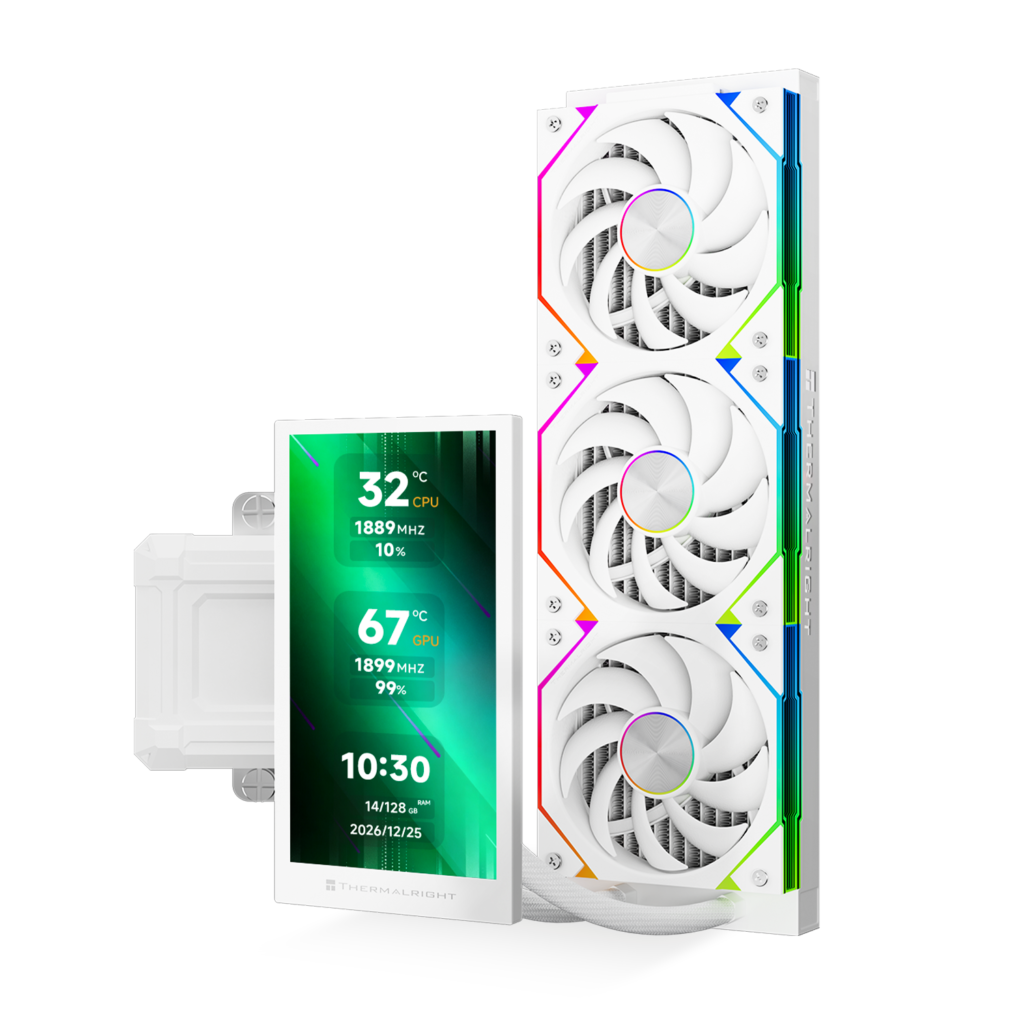

Thermalright Dynamic Vision Pro 360 ARGB White Review: Active VRM Airflow with Articulated LCD

Thermalright Dynamic Vision Pro 360 ARGB White Review: Active VRM Airflow with Articulated LCD
● HIGHLY RATED
Site Score
4.4 / 5.0
Buyer Guidance: Ideal for high-TDP desktop builders seeking custom LCD monitoring and auxiliary motherboard VRM cooling without paying premium flagship liquid cooler prices.
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.4 / 5.0
Build Quality & Physical Design (20%) 4.3 / 5.0
Thermal, Power & Acoustics (20%) 4.1 / 5.0
Reliability & Stability (20%) 4.4 / 5.0
Buyer Value (10%) 4.7 / 5.0
Score Rationale
Exceptional price-to-performance market positioning anchors this evaluation, where dominant buyer value (4.7) delivers a premium 5.5-inch articulated IPS display and active VRM cooling at a fraction of competing flagship costs. Engineering and architecture (4.4) scores strongly through the inclusion of the 60 mm motherboard downdraft fan and a 6400 RPM high-speed pump, tempered slightly by Windows-dependent software telemetry. Real-world reliability (4.4) is bolstered by durable S-FDB V2 fan bearings, sealed rotary fittings, and a comprehensive 5-year warranty. Build quality (4.3) exhibits solid radiator fin density and a rigid unibody fan frame. Thermal and acoustic management (4.1) maintains robust cooling headroom under demanding multi-core loads, though acoustic profiles require custom PWM curve tuning to mitigate 34.59 dBA peak fan noise and high-RPM pump resonance.
Audited yesterday
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
💬 Join the Discussion ↓
Scores adjust dynamically as verified community ratings accumulate.

Overview

Designed to eliminate socket-area thermal dead zones inherent to closed-loop liquid coolers, an active 60 mm auxiliary fan spinning up to 2500 RPM sits embedded within the pump housing to channel continuous airflow directly over motherboard power delivery phases and primary M.2 storage. The cooling architecture pairs a 15.83 x 4.72 x 1.06 in (402 x 120 x 27 mm) aluminum radiator with a micro-channel skived copper cold plate, driven by an internal pump operating up to 6400 RPM. Heat dissipation across the radiator core is managed by a unified TL-UC36 triple-fan array measuring 14.17 x 4.72 x 0.98 in (360 x 120 x 25 mm). Spinning up to 2400 RPM on S-FDB V2 fluid dynamic bearings, each fan section generates up to 71.5 CFM of airflow and 2.69 mm H2O of static pressure at a peak acoustic output of 34.59 dBA.

The centerpiece of the pump block assembly is an articulated 5.5-inch IPS LCD panel with a 960 x 540 resolution, engineered with full 360-degree rotation and 157-degree tilt adjustment to maintain optimal viewing angles across horizontal and vertical chassis orientations. Display telemetry and custom animations interface with the system via an internal 9-pin USB 2.0 header and Thermalright Control Center (TRCC) software on Windows. While TRCC facilitates custom video and hardware metric readouts, community-developed Linux utilities are required outside Windows environments due to the lack of native multi-platform daemon support. Structurally, braided sleeved tubing with reinforced rotary fittings and a single unibody fan frame streamline cable management and installation, eliminating redundant daisy-chain wiring while providing broad socket compatibility across Intel LGA1851/1700 and AMD AM4/AM5 platforms.

Technical Specifications

Brand Thermalright
Model Dynamic Vision Pro 360 ARGB White
Cooling Type All-in-One Liquid CPU Cooler
Radiator Dimensions 15.83 x 4.72 x 1.06 in (402 x 120 x 27 mm)
Radiator Material Aluminum
Pump Dimensions 2.72 x 2.99 x 3.62 in (69 x 76 x 92 mm)
Pump Speed 6400 RPM ±10%
Pump Connector 4-Pin PWM
Base Plate Copper Cold Plate with Micro-Channels
Display Specifications 5.5-inch IPS LCD, 960 x 540 resolution, 360° rotation, 157° tilt
Embedded Pump Fan 60 mm, up to 2500 RPM (active VRM/RAM airflow)
Fan Dimensions (Total Frame) 14.17 x 4.72 x 0.98 in (360 x 120 x 25 mm)
Fan Speed Up to 2400 RPM ±10%
Fan Airflow 71.5 CFM (per fan)
Fan Static Pressure 2.69 mm H2O
Fan Noise Level Up to 34.59 dBA
Fan Bearing Type S-FDB V2 Bearing
Lighting Addressable RGB (ARGB) with dual rings and infinity mirror accents
Tubing Braided sleeved rubber tubing
Socket Compatibility Intel LGA1851/1700/1200/115X/2011/2066, AMD AM4/AM5
Software Interface Thermalright Control Center (TRCC) via internal USB 2.0 header
Warranty 5 Years
✔ Pros
  • Articulated 5.5-inch 960x540 IPS display supports 360-degree rotation and 157-degree tilt for flexible viewing angles.
  • Integrated 60 mm pump housing fan delivers active downdraft airflow to cool motherboard VRMs and M.2 storage.
  • Unibody TL-UC36 fan assembly reduces cable clutter while delivering up to 71.5 CFM airflow and 2.69 mm H2O static pressure.
  • Exceptional cooling performance and feature set backed by a 5-year manufacturer warranty.
✖ Cons
  • Acoustic output reaches 34.59 dBA at full 2400 RPM fan speed, requiring custom PWM curve configuration for quiet operation.
  • Proprietary TRCC software is Windows-only with no official native Linux utility support.

Where To Buy

Amazon
Check current stock & pricing

Disclosure: Mizex is an independent hardware database & audit index. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.

100% Sponsor-Free Platform
Zero paid placement • Zero brand bias

Support Independent Hardware Research

Mizex is an independent hardware intelligence platform. We accept zero manufacturer sponsorships, paid product reviews, or promotional placements. Every hardware profile, specification breakdown, and reliability rating is researched objectively from public documentation and verified community telemetry. If our database helped guide your build or purchase, consider supporting our research.

✓ Community-Driven ✓ Open Research ✓ 100% Objective Data
Compare & Research

Recommended Alternatives in CPU Coolers (AIO & Air)

Compare Other Models →

At a Glance

How reliable is the Thermalright Dynamic Vision Pro 360 ARGB White Review: Active VRM Airflow with Articulated LCD according to Mizex audits?
Mizex Composite Score: 4.4 / 5.0 ● HIGHLY RATED

Ideal for high-TDP desktop builders seeking custom LCD monitoring and auxiliary motherboard VRM cooling without paying premium flagship liquid cooler prices.

What are the known quirks or drawbacks of the Thermalright Dynamic Vision Pro 360 ARGB White Review: Active VRM Airflow with Articulated LCD?

Our reliability audit identified the following documented caveats:

  • Acoustic output reaches 34.59 dBA at full 2400 RPM fan speed, requiring custom PWM curve configuration for quiet operation.
  • Proprietary TRCC software is Windows-only with no official native Linux utility support.
What are the key engineering highlights of the Thermalright Dynamic Vision Pro 360 ARGB White Review: Active VRM Airflow with Articulated LCD?

The top strengths recorded in our evaluation include:

  • Articulated 5.5-inch 960x540 IPS display supports 360-degree rotation and 157-degree tilt for flexible viewing angles.
  • Integrated 60 mm pump housing fan delivers active downdraft airflow to cool motherboard VRMs and M.2 storage.
  • Unibody TL-UC36 fan assembly reduces cable clutter while delivering up to 71.5 CFM airflow and 2.69 mm H2O static pressure.
  • Exceptional cooling performance and feature set backed by a 5-year manufacturer warranty.
