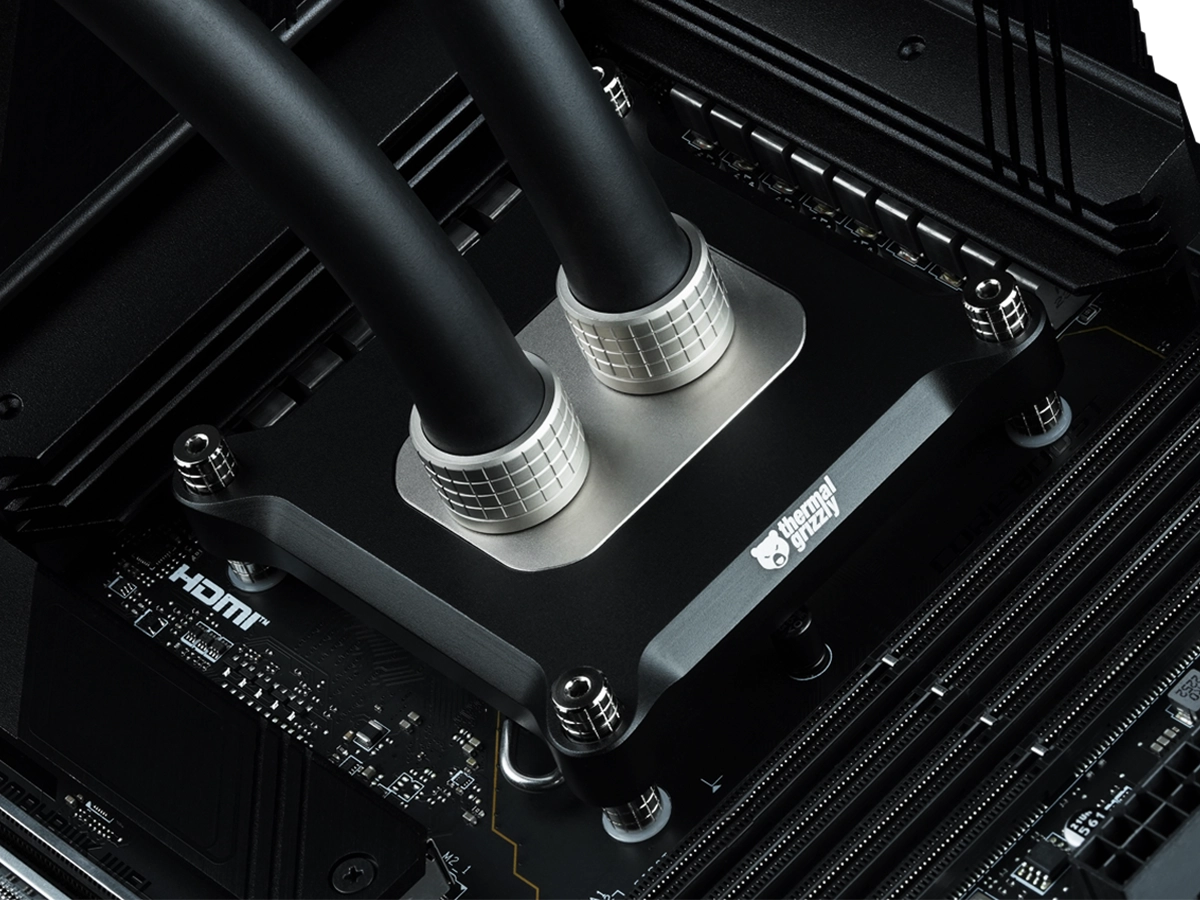

Thermal Grizzly Mycro Pro Stainless Steel

Overview

The Thermal Grizzly Mycro Pro Stainless Steel is an enthusiast-grade custom liquid cooling CPU water block engineered for standard integrated heat spreader (IHS) applications. Structurally anchored by a heavy-duty S304 stainless steel top housing and an anodized aluminum mounting frame, the block prioritizes mechanical rigidity and pressure resistance over cosmetic plastics. At its thermal core lies an unplated bare copper cold plate featuring an ultra-dense microfin array with 0.2 mm fins and 0.2 mm slot channels—specifically configured with 68 microfins for AMD platforms and 70 microfins for Intel platforms to maximize heat exchange surface area. The hydraulic chamber is sealed using commercial-grade EPDM rubber O-rings that resist ozone, heat, and fluid degradation, connecting seamlessly into standard open-loop systems via standard G1/4-inch threaded ports.

Thermally, omitting nickel plating eliminates interfacial thermal barrier resistance, facilitating direct metal-to-fluid heat flux across modern high-density processor dies. Because the block operates as a purely passive hydraulic component, acoustic performance is dictated entirely by loop flow resistance and external pump or radiator fan speeds, introducing zero localized noise or electrical interference. Operating without microcontrollers, integrated RGB headers, or proprietary software, the assembly requires zero firmware maintenance and guarantees lifelong operating system independence. In practical deployment, prospective builders must account for its standard IHS limitation—as it is incompatible with direct-die delidded configurations—and anticipate natural superficial oxidation and cosmetic tarnishing on the unplated copper base over prolonged exposure to atmospheric humidity and liquid coolants.
