- Near-saturation PCIe 4.0 burst transfer speeds reaching 7,466 MB/s read and 6,761 MB/s write
- Modern 12nm Silicon Motion SM2268XT controller with responsive Host Memory Buffer architecture
- Slim single-sided M.2 2280 physical layout fits effortlessly in thin laptops and tight chassis
- Below-average 960 TBW endurance rating for a 2TB drive paired with a 3-year warranty period
- Pronounced write speed drop to native TLC levels once dynamic SLC cache is exhausted during continuous writes
- Ships without an integrated heatsink, mandating motherboard heat spreaders under heavy sustained I/O
Overview
Saturating the PCIe 4.0 x4 interface through a DRAM-less architecture, the Taimi Phoenix TME48SB2T centers its design on Silicon Motion’s SM2268XT controller paired with high-density 3D TLC NAND flash. Fabricated on a 12nm process, the dual-core ARM Cortex-R8 controller operates across four NAND channels at up to 3,200 MT/s, delivering peak sequential throughput verified at 7,466 MB/s read and 6,761 MB/s write. To circumvent the board footprint and power overhead of dedicated onboard DRAM, the drive utilizes Host Memory Buffer (HMB) architecture, allocating a small allocation of host system RAM over the PCIe bus to manage translation lookup tables. While everyday bursts and read-dominant client workloads approach the physical ceiling of the PCIe 4.0 interface, continuous write workloads reveal the physical boundaries of dynamic pseudo-SLC caching: once the allocation pool fills during massive sequential transfers, sustained throughput drops sharply to native TLC direct-to-die write speeds.

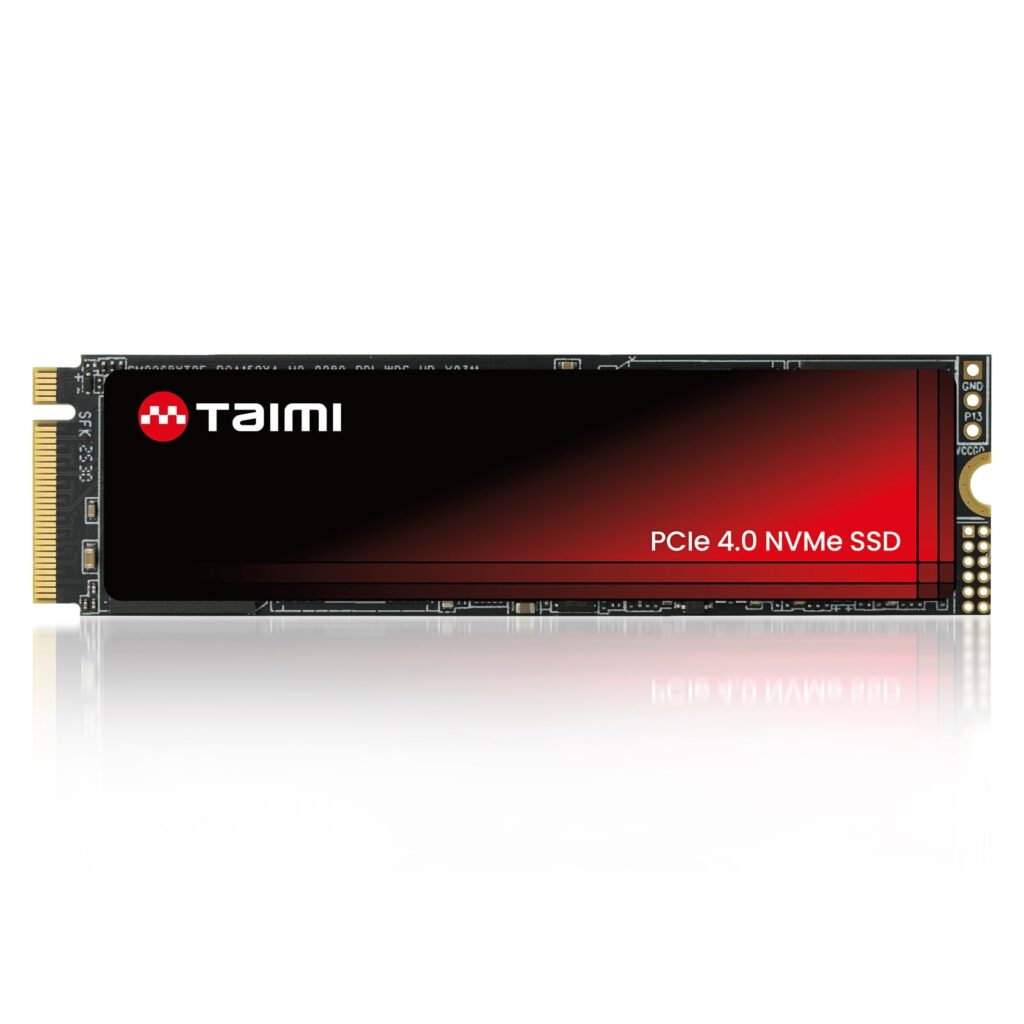

Constructed on a standard single-sided M.2 2280 printed circuit board, the physical layout measures 3.15 x 0.87 x 0.08 in (80.0 x 22.0 x 2.15 mm), providing broad mechanical clearance for space-constrained laptops and thin external enclosures. The bare PCB package omits an integrated metal heat spreader or pre-applied thermal dissipation label, leaving the bare controller silicon in direct contact with ambient airflow. Although the 12nm controller manages modest operational power draw during typical desktop tasks, intense multi-gigabyte sequential writes generate concentrated heat on the controller package. Without the thermal mitigation of a motherboard-integrated heatsink or dedicated chassis thermal pad, the controller will engage thermal throttling under sustained heavy I/O loads.
Long-term reliability is framed by an endurance rating of 960 TBW over a 3-year warranty window, a conservative figure that trails the 1,200 TBW standard established by mainstream 2TB TLC competitors. Firmware deployment reflects a factory-direct OEM model, lacking proprietary desktop companion suites, automated over-the-air firmware update utilities, or dedicated drive health monitoring software. For mainstream PC gaming builds, secondary storage pools, and standard client workloads where read operations predominate and motherboard heatsinks are readily available, the drive delivers snappy burst responsiveness, though it remains ill-suited for sustained write-heavy workloads, write caching pools, or enterprise duty cycles.
Technical Specifications
| Brand | Taimi |
| Model | TME48SB2T 2TB NVMe SSD |
| Form Factor | M.2 2280 (Single-Sided) |
| Interface | PCIe 4.0 x4, NVMe |
| Capacity | 2TB (2,048 GB) |
| Controller | Silicon Motion SM2268XT (12nm, Dual-Core ARM Cortex-R8) |
| NAND Flash Type | 3D TLC |
| DRAM Cache | DRAM-less (Host Memory Buffer / HMB) |
| Sequential Read Speed | 7,466 MB/s |
| Sequential Write Speed | 6,761 MB/s |
| Endurance Rating | 960 TBW |
| Warranty | 3 Years |
| Dimensions | 3.15 x 0.87 x 0.08 in (80.0 x 22.0 x 2.15 mm) |
| Weight | 0.25 oz (7.0 g) |
Recommended Alternatives in Storage (SSDs & HDDs)
At a Glance
How reliable is the Taimi TME48SB2T 2TB NVMe SSD Review: DRAM-Less Speed Meets Endurance Trade-Offs according to Mizex audits?
An aggressive burst-performance PCIe 4.0 SSD ideal for secondary gaming storage or budget PC builds, provided buyers pair it with a motherboard heatsink and accept its conservative 960 TBW endurance rating.
What are the known quirks or drawbacks of the Taimi TME48SB2T 2TB NVMe SSD Review: DRAM-Less Speed Meets Endurance Trade-Offs?
Our reliability audit identified the following documented caveats:
- Below-average 960 TBW endurance rating for a 2TB drive paired with a 3-year warranty period
- Pronounced write speed drop to native TLC levels once dynamic SLC cache is exhausted during continuous writes
- Ships without an integrated heatsink, mandating motherboard heat spreaders under heavy sustained I/O
What are the key engineering highlights of the Taimi TME48SB2T 2TB NVMe SSD Review: DRAM-Less Speed Meets Endurance Trade-Offs?
The top strengths recorded in our evaluation include:
- Near-saturation PCIe 4.0 burst transfer speeds reaching 7,466 MB/s read and 6,761 MB/s write
- Modern 12nm Silicon Motion SM2268XT controller with responsive Host Memory Buffer architecture
- Slim single-sided M.2 2280 physical layout fits effortlessly in thin laptops and tight chassis
