Overview
Saturating the four-lane PCIe 4.0 physical bus through an NVMe 1.4 protocol stack, internal hardware design centers on 112-layer BiCS5 3D TLC NAND paired with a dedicated 1GB DDR4 DRAM cache. Integrating discrete DRAM bypasses the latency bottlenecks associated with Host Memory Buffer architectures, keeping mapping tables on-die to sustain sequential throughput ceilings of up to 7,300 MB/s read and 6,300 MB/s write. Flash memory organization and controller scheduling manage steady write distribution across the TLC array, matching high-bandwidth pipeline demands during dense asset streaming and continuous block transfers.

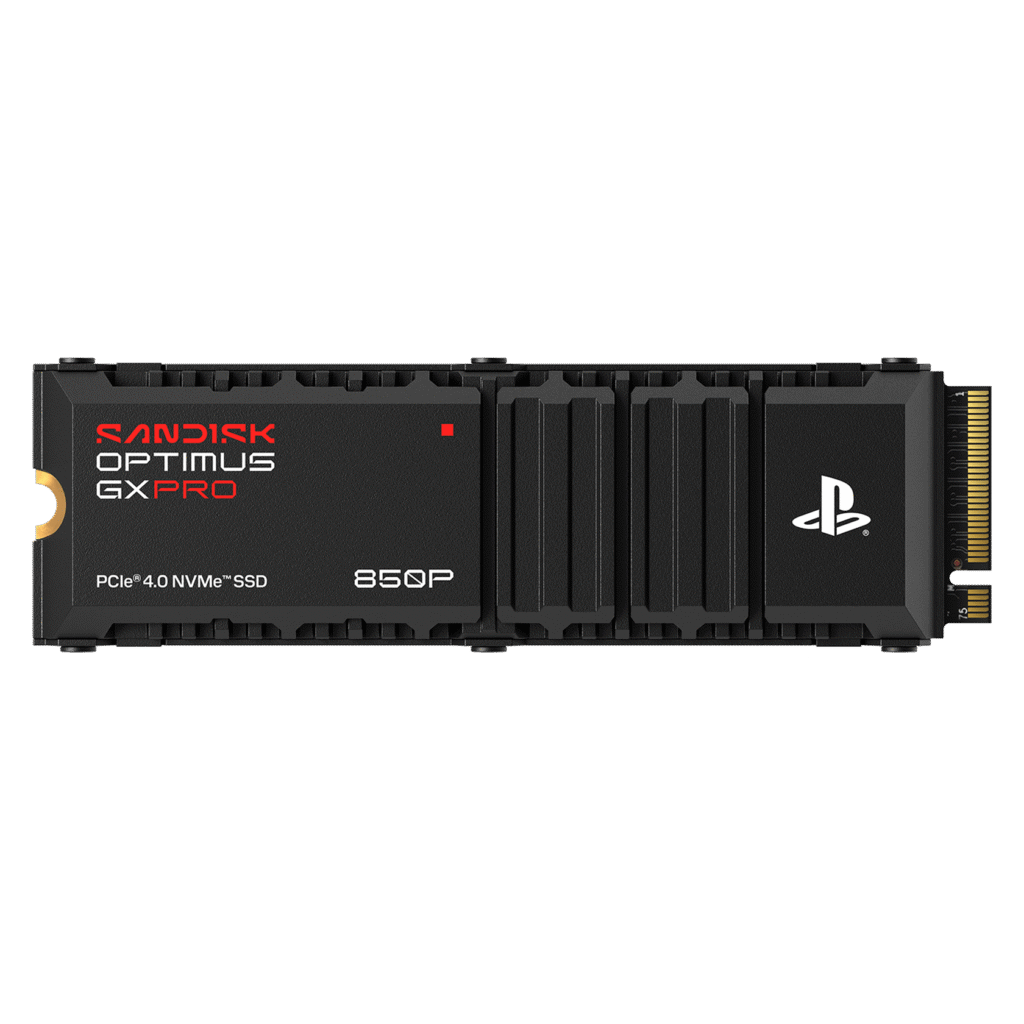

Physical construction is dominated by a factory-fitted low-profile extruded aluminum heatsink clamped across the M.2 2280 module. Engineered specifically to comply with the strict internal clearance constraints of Sony PlayStation 5 and PlayStation 5 Pro expansion bays, the heat spreader draws thermal energy away from the controller and NAND packages into an enclosed air channel without exceeding standard slot height envelopes. While this permanent thermal assembly provides passive conduction in space-constrained console cavities, its rigid mechanical attachment precludes easy removal, creating installation conflicts on desktop motherboards that mandate the use of vendor-specific M.2 armor shields.
Long-term data integrity is rated at 600 TBW for the 1TB capacity, reflecting standard operational longevity for high-density 3D TLC flash under continuous read and write cycles. Firmware management maintains reliable drive enumeration and power-state transitions across both console and PC operating environments, preventing sleep-wake dropped-drive errors. For prospective deployments, the hardware presents a balanced, plug-and-play storage expansion path where pre-installed thermal management and dedicated caching justify the brand premium over bare, uncooled Gen4 modules.
Technical Specifications
| Brand | SanDisk |
| Model | Optimus GX PRO 850P 1TB SSD |
| Form Factor | M.2 2280 (0.87 x 3.15 in / 22 x 80 mm) |
| Interface | PCIe 4.0 x4, NVMe 1.4 |
| Capacity | 1TB |
| Sequential Read Speed | Up to 7,300 MB/s |
| Sequential Write Speed | Up to 6,300 MB/s |
| NAND Flash Type | BiCS5 112-layer 3D TLC |
| DRAM Cache | 1GB DDR4 |
| Endurance Rating | 600 TBW |
| Cooling | Integrated low-profile aluminum heatsink |
| Console Compatibility | Sony PlayStation 5, PlayStation 5 Pro |
- PCIe 4.0 x4 interface reaching sequential speeds up to 7,300 MB/s read and 6,300 MB/s write
- Factory-installed low-profile aluminum heatsink custom-sized for PlayStation 5 and PS5 Pro bays
- Dedicated 1GB DDR4 DRAM cache ensures low-latency address translation during sustained writes
- BiCS5 112-layer 3D TLC NAND backed by an endurance rating of 600 TBW
- Integrated heatsink is not easily removable for motherboards with built-in M.2 armor shields
- Carries a brand pricing markup compared to equivalent unshielded PCIe 4.0 NVMe drives
Primary Sources & Audited Citations
Recommended Alternatives in Storage (SSDs & HDDs)
At a Glance
How reliable is the SanDisk Optimus GX PRO 850P 1TB SSD Review: Dedicated Caching Meets Console Expansion according to Mizex audits?
An ideal plug-and-play storage upgrade for PlayStation 5 and PC users who need verified Gen4 transfer speeds with pre-installed cooling, provided your setup does not require a bare drive for motherboard M.2 armor.
What are the known quirks or drawbacks of the SanDisk Optimus GX PRO 850P 1TB SSD Review: Dedicated Caching Meets Console Expansion?
Our reliability audit identified the following documented caveats:
- Integrated heatsink is not easily removable for motherboards with built-in M.2 armor shields
- Carries a brand pricing markup compared to equivalent unshielded PCIe 4.0 NVMe drives
What are the key engineering highlights of the SanDisk Optimus GX PRO 850P 1TB SSD Review: Dedicated Caching Meets Console Expansion?
The top strengths recorded in our evaluation include:
- PCIe 4.0 x4 interface reaching sequential speeds up to 7,300 MB/s read and 6,300 MB/s write
- Factory-installed low-profile aluminum heatsink custom-sized for PlayStation 5 and PS5 Pro bays
- Dedicated 1GB DDR4 DRAM cache ensures low-latency address translation during sustained writes
- BiCS5 112-layer 3D TLC NAND backed by an endurance rating of 600 TBW
