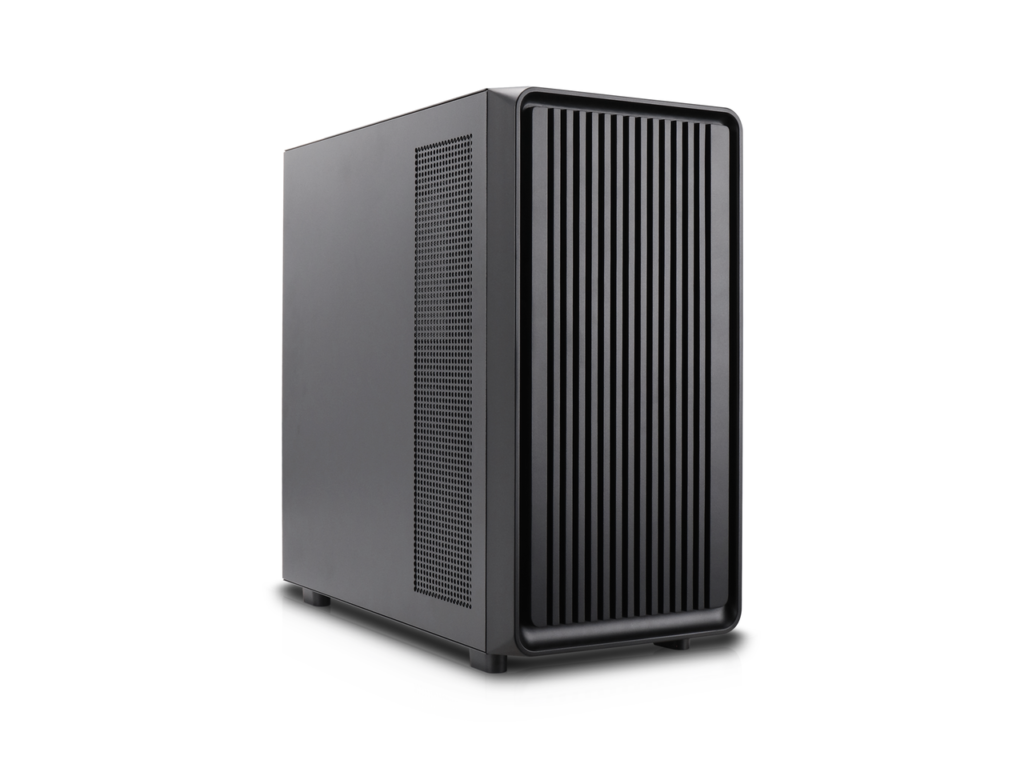

Rosewill Helium NAS Duo Review: High-Density DIY Storage Chassis

● HIGHLY RATED
Site Score
4.4 / 5.0
Buyer Guidance: An exceptional chassis for home server and NAS builders requiring high-capacity 3.5-inch drive arrays without forfeiting full-length GPU clearance or modern USB-C front connectivity.
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.4 / 5.0
Build Quality & Physical Design (20%) 4.2 / 5.0
Thermal, Power & Acoustics (20%) 4.3 / 5.0
Reliability & Stability (20%) 4.5 / 5.0
Buyer Value (10%) 4.6 / 5.0
Score Rationale
High-density eight-bay mechanical storage integrated into a standard mid-tower chassis anchors the overall 4.4 rating. Engineering & Architecture (4.4) stands out by supporting reverse-connector BTF motherboards alongside front USB 3.2 Type-C connectivity and 360 mm (14.17 in) radiator capacity. Build quality (4.2) delivers rigid steel construction supplemented by perimeter dust filtration, though front fascia styling relies on standard plastic trim. Thermal management and acoustic profile (4.3) benefit significantly from four pre-installed 140 mm (5.51 in) PWM fans pushing directed airflow straight across the drive stack to prevent hotspot accumulation in dense storage arrays. Long-term reliability (4.5) is reinforced by simple mechanical drive mounting trays and passive structural simplicity devoid of failure-prone proprietary backplanes. Buyer value (4.6) is exceptional for storage-focused homelab enthusiasts, offering out-of-the-box cooling and extensive expansion room without requiring aftermarket bracket kits.
Audited today
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
💬 Join the Discussion ↓
Scores adjust dynamically as verified community ratings accumulate.

Overview

Configuring a dedicated local storage server typically forces builders to choose between bulky 4U rackmount enclosures or space-constrained consumer towers, but the internal architecture of the Rosewill Helium NAS Duo prioritizes high-density multi-drive arrays within a standard ATX mid-tower envelope. The internal bay configuration dedicates space for eight 3.5-inch mechanical hard drives alongside two 2.5-inch solid-state drives, giving home lab operators and DIY NAS builders massive raw volume potential. Component clearance remains generous despite the internal drive column, accommodating graphics cards up to 390 mm (15.35 in) in length and tall tower CPU air coolers reaching 180 mm (7.09 in) in height. Motherboard support extends from Mini ITX up to E-ATX, including compatibility with BTF reverse-connector mainboards to route data and power harnesses directly behind the tray for unobstructed internal intake.

Chassis cooling is anchored by four factory-installed 140 mm (5.51 in) PWM fans—three positioned behind the ventilated front mesh and one serving as a rear exhaust. This positive-pressure airflow path channels intake air directly over the stacked 3.5-inch drive cages to mitigate thermal buildup across tightly clustered spinning platters, while full-coverage dust filtration keeps ambient particulate out of the drive sleds. Liquid cooling options allow front radiator configurations up to 360 mm (14.17 in), pairing workstation-grade compute cooling with dense storage. Structural rigidity relies on a steel main frame paired with practical plastic front trim, providing stable damping against multi-drive rotational vibration while retaining seven standard PCIe expansion slots and a front I/O cluster featuring USB 3.2 Type-C, USB 3.0, and integrated audio.

Technical Specifications

Brand Rosewill
Model Helium NAS Duo
Form Factor ATX Mid Tower
Chassis Materials Steel, Plastic
Motherboard Compatibility E-ATX, ATX, Micro ATX, Mini ITX, BTF
3.5 Inch Drive Bays 8
2.5 Inch Drive Bays 2
Expansion Slots 7
Pre Installed Fans 4 x 140 mm (5.51 in) PWM
Front Fan Mounts 3 x 120 mm (4.72 in) or 3 x 140 mm (5.51 in)
Rear Fan Mounts 1 x 120 mm (4.72 in) or 1 x 140 mm (5.51 in)
Radiator Support Up to 360 mm (14.17 in) Front
Maximum GPU Clearance 390 mm (15.35 in)
Maximum CPU Cooler Height 180 mm (7.09 in)
Front Panel I/O 1 x USB 3.2 Type-C, 1 x USB 3.0, Audio In/Out
Dust Filtration Front and Intake Filters Included
✔ Pros
  • High internal storage density accommodating eight 3.5-inch and two 2.5-inch drives
  • Equipped out of the box with four 140 mm (5.51 in) PWM fans for high-volume drive cage cooling
  • Extensive clearance supporting GPUs up to 390 mm (15.35 in) and CPU coolers up to 180 mm (7.09 in)
  • Modern front I/O with USB 3.2 Type-C and support for back-connect BTF motherboards
✖ Cons
  • High-density eight-drive layout necessitates meticulous cable routing behind the storage cage
  • Exhaust mounts are limited to the single rear fan position without top panel fan mounting options
📋
