Overview

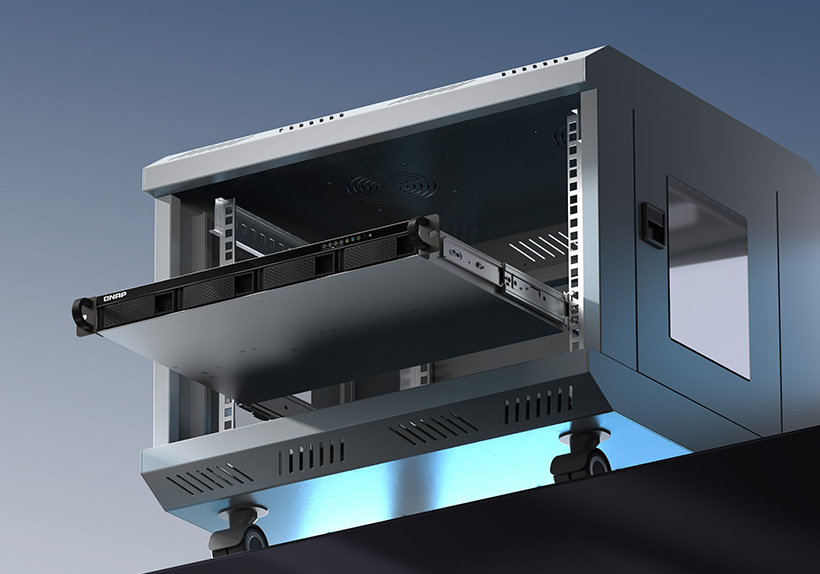

The QNAP TS-432XeU is engineered specifically for space-constrained edge and small-to-medium business infrastructure, housing a four-bay storage array within an ultra-shallow 292.12 mm (11.5-inch) 1U rackmount form factor. Built around a durable sheet-metal chassis with reinforced front rack ears, the unit fits seamlessly into shallow wall-mount cabinets and telecom racks where standard-depth servers cannot operate. At its core, the platform is powered by a 64-bit AnnapurnaLabs Alpine AL324 quad-core ARM Cortex-A57 processor running at 1.7 GHz, paired with a single DDR4 SO-DIMM slot supporting up to 16 GB with optional ECC memory support for enhanced data integrity. Four hot-swappable drive trays accommodate both 3.5-inch and 2.5-inch SATA 6Gb/s drives, providing dependable raw capacity in an exceptionally compact footprint.
Thermal dissipation within the dense 1U enclosure is managed by a trio of 12V DC 40mm cooling fans positioned to draw air across the drive caddies, system board, and integrated 100W internal power supply. The energy-efficient ARM architecture maintains low thermal overhead under sustained I/O, though the small-diameter fans generate the characteristic mid-to-high frequency acoustic signature typical of rackmount gear under heavier workloads. In typical shallow-depth network closet or utility room installations, this acoustic profile remains well within acceptable operational bounds while ensuring the internal components remain securely within their 0°C to 40°C operating window.
On the software and connectivity front, the TS-432XeU delivers enterprise-grade networking through a dedicated 10GbE SFP+ port alongside dual 2.5GbE RJ45 interfaces with SMB Multichannel capability, complemented by four 5 Gbps USB 3.2 Gen 1 ports. Operating under QTS 5.2, the NAS benefits from consistent security updates, multi-version snapshots, and comprehensive backup services. While the 64-bit ARM architecture precludes running x86-exclusive virtualization packages and the lack of internal M.2 NVMe slots rules out dedicated flash caching without sacrificing a SATA bay, the platform serves as a reliable, high-throughput centralized storage and backup appliance for high-bandwidth local area networks.
Technical Specifications
| Processor | AnnapurnaLabs Alpine AL324 (4-core, up to 1.7 GHz, ARM Cortex-A57) |
| System Memory | 4 GB DDR4 non-ECC (expandable up to 16 GB, ECC supported) |
| Memory Slots | 1 x DDR4 SO-DIMM |
| Drive Bays | 4 x 3.5-inch / 2.5-inch SATA 6Gb/s, 3Gb/s (hot-swappable) |
| Network Interfaces | 1 x 10GbE SFP+, 2 x 2.5GbE RJ45 |
| Usb Ports | 4 x USB 3.2 Gen 1 (5 Gbps) |
| Form Factor | 1U short-depth rackmount |
| Cooling System | 3 x 40mm 12V DC fans |
| Power Supply | 100W (100–240V AC) |
| Operating System | QTS 5.2 |
| Dimensions | 43.3 x 430 x 292.12 mm (1.7 x 16.9 x 11.5 in) |
| Weight | 4.91 kg (10.8 lbs) |
| Operating Temperature Range | 0°C to 40°C (32°F to 104°F) |
- Ultra-compact 292.12 mm short-depth 1U chassis ideal for shallow wall-mount and telecom racks
- Integrated 10GbE SFP+ and dual 2.5GbE RJ45 ports with SMB Multichannel capability
- Supports up to 16 GB DDR4 memory with optional ECC module compatibility
- Four hot-swappable SATA bays supporting 3.5-inch hard drives and 2.5-inch SSDs
- ARM Cortex-A57 architecture lacks compatibility with x86-specific virtualization and packages
- No integrated M.2 NVMe slots for dedicated SSD cache acceleration
- Single SO-DIMM slot limits memory expansion paths and lacks multi-channel bandwidth
