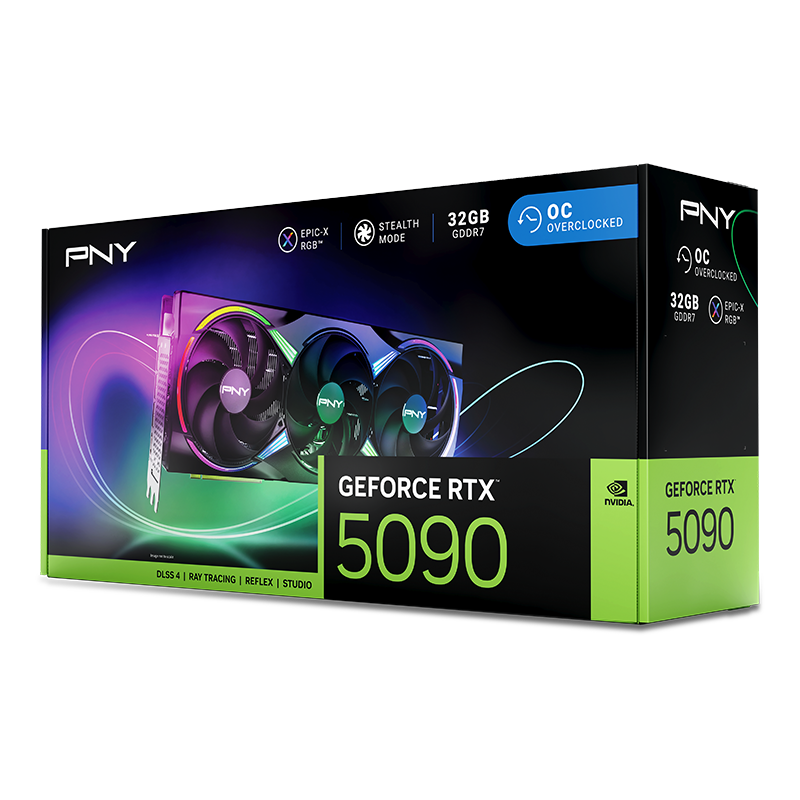

PNY GeForce RTX 5090

PNY GeForce RTX 5090
▲ DOCUMENTED QUIRKS
Site Score
3.9 / 5.0
Buyer Guidance: An ultra-enthusiast compute titan delivering unmatched performance, but requiring rigorous attention to 16-pin power connections, expansive case clearance, and immense 575W thermal headroom.
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.6 / 5.0
Build Quality & Physical Design (20%) 4.0 / 5.0
Thermal, Power & Acoustics (20%) 3.5 / 5.0
Reliability & Stability (20%) 3.6 / 5.0
Buyer Value (10%) 3.8 / 5.0
Score Rationale
The composite score of 3.9 reflects extraordinary architectural capability balanced against critical thermal and electrical considerations. Engineering & Architecture (4.6) is exceptional, driven by 21,760 Blackwell CUDA cores, 32 GB of GDDR7 on a 512-bit bus, and PCIe 5.0 x16 connectivity. Build quality (4.0) showcases a rigid 3.5-slot footprint, with comprehensive internal material tolerances awaiting retail teardowns. Thermal management (3.5) reflects the immense dissipation demands of a 575W TDP managed by a conventional triple-fan assembly. Reliability (3.6) is tempered by documented reports of 16-pin connector overheating and strict warranty requirements concerning cable usage. Buyer value (3.8) balances top-tier performance against heavy system-wide infrastructure and power supply requirements.
Audited today
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
💬 Join the Discussion ↓
Scores adjust dynamically as verified community ratings accumulate.

Overview

The PNY GeForce RTX 5090 is engineered around NVIDIA’s Blackwell architecture, delivering extreme computational throughput via 21,760 CUDA cores and a 2,527 MHz boost clock over a high-bandwidth PCIe 5.0 x16 interface. Its primary technical highlight is an advanced memory subsystem packing 32 GB of GDDR7 VRAM across an ultra-wide 512-bit bus operating at an effective 28 Gbps. Display connectivity is modernized to support cutting-edge ultra-high-resolution setups, providing three DisplayPort 2.1b ports and one HDMI 2.1b output capable of driving multi-display arrays up to 8K resolution alongside DLSS 4.0 and hardware ray-tracing acceleration.

To accommodate its substantial 575W thermal design power, the card adopts an imposing 3.5-slot physical profile cooled by an open-air triple-fan shroud. Power is ingested via a single high-power 16-pin connector with a bundled quad 8-pin adapter for power supply compatibility. While the full-profile chassis structure and exterior layout are established, comprehensive evaluation of internal thermal interface materials, vapor chamber engineering, and acoustic decibel curves remains pending formal retail physical teardown and instrumented acoustic testing.

In practical implementation, the card represents an apex graphics solution that demands rigorous operational safeguards and expansive system housing. Early hardware telemetry notes isolated incidents of plastic scorching and pin-contact overheating on the 16-pin connector even under minimal 2D load, compounded by vendor customer support scrutiny regarding the use of native power supply cables versus the bundled adapter. Prospective deployments require high-wattage power delivery infrastructure, careful cable routing without acute bend radii, and ample chassis clearance.

Technical Specifications

GPU Chipset NVIDIA GeForce RTX 5090
Architecture NVIDIA Blackwell
CUDA Cores 21760
Boost Clock 2527 MHz
VRAM Capacity 32 GB
Memory Type GDDR7
Memory Bus Width 512-bit
Effective Memory Speed 28 Gbps
Interface PCIe 5.0 x16
TDP 575W
Cooling Solution Triple Fan
Slot Width 3.5-slot
Display Outputs 1x HDMI 2.1b, 3x DisplayPort 2.1b
Maximum Resolution 7680 x 4320
Multi Monitor Support 4
Power Connectors 1x 16-pin (1x 16-pin to 4x 8-pin adapter included)
API & Feature Support DLSS 4.0, Ray Tracing, VR Ready
✔ Pros
  • Massive compute density with 21,760 Blackwell CUDA cores and high-throughput PCIe 5.0 x16 interface
  • Next-generation 32 GB GDDR7 memory subsystem across an ultra-wide 512-bit bus at 28 Gbps
  • Modern display connectivity supporting three DisplayPort 2.1b outputs and one HDMI 2.1b port for 8K resolution
✖ Cons
  • Extremely high thermal output and energy consumption rated at 575W TDP
  • Massive 3.5-slot expansion footprint requiring significant internal chassis clearance
  • Documented risk of 16-pin power connector overheating and warranty friction regarding cable origin
📋
