darkFlash DB330M Sanrio Kuromi Review: Pillarless Showcase Meets Clearance Constraints

Mizex is reader-supported. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.
▲ DOCUMENTED QUIRKS
Site Score
4.2 / 5.0
Buyer Guidance: An eye-catching showcase chassis suited for mid-range Micro-ATX builds, provided your graphics card measures under 12.0 in (305 mm) and you do not require front-panel USB Type-C connectivity.
Check Availability & Pricing
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.1 / 5.0
Build Quality & Physical Design (20%) 4.3 / 5.0
Thermal, Power & Acoustics (20%) 4.0 / 5.0
Reliability & Stability (20%) 4.5 / 5.0
Buyer Value (10%) 4.1 / 5.0
Score Rationale
A visually striking 270-degree panoramic glass enclosure paired with a generous five-fan bundle anchors the rating at 4.2, offset primarily by clearance limits and legacy front I/O ports. Build quality earns a 4.3 through clean steel tooling and seamless pillarless glass panel alignment. Engineering & Architecture rates 4.1 for an accommodating 180 mm CPU tower clearance and smart dual-chamber layout, though it is hindered by the omission of a front USB Type-C port and a 305 mm GPU length constraint. Thermal management achieves a 4.0, where five pre-installed ARGB fans drive effective bottom-to-top vertical airflow to counteract the solid glass panels. Long-term reliability stands at 4.5 thanks to robust chassis stamping, durable mechanical power switches, and standard fan cabling. Finally, buyer value lands at 4.1, rewarding the complete pre-installed fan setup and licensed styling while factoring in modest expansion headroom.
Audited today
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
Scores adjust dynamically as verified community ratings accumulate.
✔ Pros
  • Seamless 270-degree dual tempered glass panoramic view with officially licensed Sanrio Kuromi graphics
  • Generous 7.1 in (180 mm) CPU cooler clearance easily fits tall dual-tower air heatsinks
  • Equipped with five pre-installed ARGB fans supporting vertical bottom-to-top airflow
  • Accommodates up to a 240 mm liquid cooling radiator along the top panel
✖ Cons
  • Maximum GPU clearance is restricted to 12.0 in (305 mm), excluding larger triple-fan graphics cards
  • Front panel I/O lacks a USB Type-C port, relying on legacy USB 3.0 and USB 2.0 Type-A ports
  • Limited internal storage capacity restricted to a single 3.5-inch HDD and two 2.5-inch SSDs

Overview

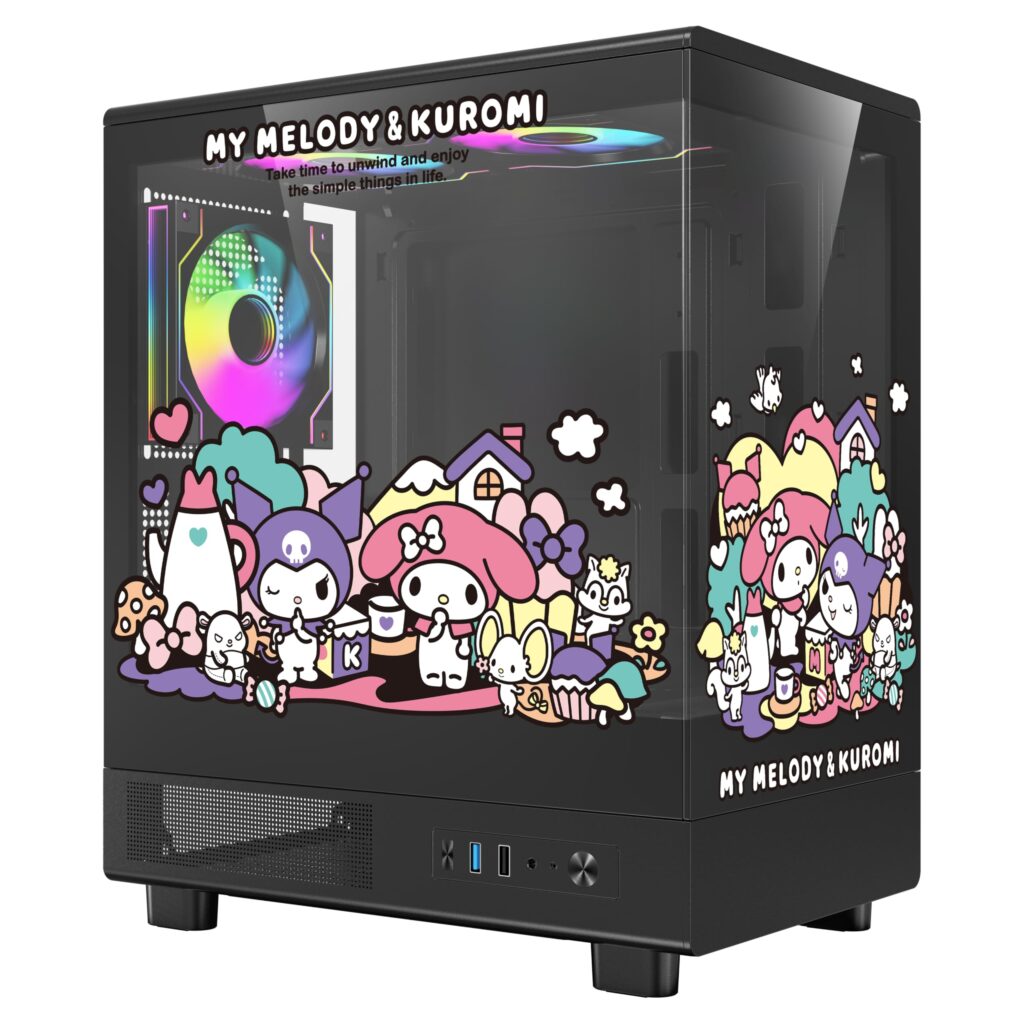

Showcase-oriented mini-towers frequently force builders to choose between compact desktop footprints and internal component visibility, but this Kuromi-themed Micro-ATX chassis bridges that divide with a pillarless 270-degree panoramic perspective. The dual tempered-glass panels meet seamlessly at the front-left seam, providing an uninterrupted view of the internal hardware and character-themed accents. Beneath the decorative styling, the chassis relies on a stamped steel frame designed to house either Micro-ATX or Mini-ITX motherboards across four PCIe expansion slots, maintaining structural stability without adding unnecessary bulk to a desk setup.

Component clearance strikes an interesting balance between expansive vertical headroom and restrained horizontal space. The internal chamber accommodates massive CPU air coolers up to 7.1 in (180 mm) in height alongside top-mounted liquid radiators up to 240 mm, an unusually tall allowance for a compact enclosure. To counteract the thermal restriction inherent to non-perforated front glass, cooling relies on a vertical chimney pathway powered by five pre-installed ARGB fans. Fresh air enters through dual 120 mm intakes in the bottom floor, flowing upward across internal components before exhausting through the rear 120 mm port and dual top exhaust mounts.

Everyday system building reveals a few distinct hardware compromises that dictate component selection. Graphics card clearance tops out at 12.0 in (305 mm), ruling out the bulkier triple-fan flagships on the market today and requiring careful dimension checks before purchasing a GPU. Storage options are similarly restrained to a pair of 2.5-inch solid-state drives and a single 3.5-inch hard drive. Additionally, the top I/O cluster sticks to legacy connectivity with one USB 3.0 Type-A port and two USB 2.0 ports alongside audio jacks, entirely skipping a modern front-panel USB Type-C interface. For builders constructing a mid-range themed rig within these clear boundary lines, the integrated fan suite and distinct visual identity deliver a straightforward assembly experience.

Technical Specifications

Brand darkFlash
Model DB330M Sanrio Kuromi
Chassis Type Micro-ATX Mini Tower
Motherboard Support Micro-ATX, Mini-ITX
Dimensions 15.7 x 8.6 x 13.1 in (400 x 218 x 333 mm)
Materials Steel, Tempered Glass
Panel Configuration Dual-panel 270° panoramic view
Color & Theme Black (Sanrio Kuromi Edition)
PCIe Expansion Slots 4
Maximum GPU Clearance 12.0 in (305 mm)
Maximum CPU Cooler Height 7.1 in (180 mm)
Internal Drive Bays 2 x 2.5" SSD, 1 x 3.5" HDD
Pre Installed Fans 5 x ARGB fans
Fan Mount Support Top: 2 x 120 mm / 2 x 140 mm; Rear: 1 x 120 mm; Bottom: 2 x 120 mm
Radiator Support Top: up to 240 mm; Rear: up to 120 mm
Front Panel I/O 1 x USB 3.0 Type-A, 2 x USB 2.0 Type-A, HD Audio, Power Button
📋

Primary Sources & Audited Citations

Compare & Research

Recommended Alternatives in PC Cases

Compare Other Models →
Equal Rating
Okinos Aqua UNO

Okinos Aqua UNO

Seamless Panoramic Glass In Tight Quarters

Index: 4.2 / 5.0
Read Full Audit →
+0.1 Higher Rating
Colorful BA26M-G Black Blade G

Colorful BA26M-G Black Blade G

Pillarless Panoramic Design With Vertical Airflow

Index: 4.3 / 5.0
Read Full Audit →
+0.1 Higher Rating
SilverStone SETA X1M

SilverStone SETA X1M

Quad Bay Micro-ATX Workhorse

Index: 4.3 / 5.0
Read Full Audit →

At a Glance

How reliable is the darkFlash DB330M Sanrio Kuromi Review: Pillarless Showcase Meets Clearance Constraints according to Mizex audits?
Mizex Composite Score: 4.2 / 5.0 ▲ DOCUMENTED QUIRKS

An eye-catching showcase chassis suited for mid-range Micro-ATX builds, provided your graphics card measures under 12.0 in (305 mm) and you do not require front-panel USB Type-C connectivity.

What are the known quirks or drawbacks of the darkFlash DB330M Sanrio Kuromi Review: Pillarless Showcase Meets Clearance Constraints?

Our reliability audit identified the following documented caveats:

  • Maximum GPU clearance is restricted to 12.0 in (305 mm), excluding larger triple-fan graphics cards
  • Front panel I/O lacks a USB Type-C port, relying on legacy USB 3.0 and USB 2.0 Type-A ports
  • Limited internal storage capacity restricted to a single 3.5-inch HDD and two 2.5-inch SSDs
What are the key engineering highlights of the darkFlash DB330M Sanrio Kuromi Review: Pillarless Showcase Meets Clearance Constraints?

The top strengths recorded in our evaluation include:

  • Seamless 270-degree dual tempered glass panoramic view with officially licensed Sanrio Kuromi graphics
  • Generous 7.1 in (180 mm) CPU cooler clearance easily fits tall dual-tower air heatsinks
  • Equipped with five pre-installed ARGB fans supporting vertical bottom-to-top airflow
  • Accommodates up to a 240 mm liquid cooling radiator along the top panel
