Netac ZX20III EVO 1TB Portable SSD Review: Lightweight 5Gbps External Storage

Mizex is reader-supported. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.
▲ DOCUMENTED QUIRKS
Site Score
3.9 / 5.0
Community Score
— / 5.0
👥 Community
Buyer Guidance: Choose this drive for lightweight, cost-effective 1TB document and media backups, but opt for USB 3.2 Gen 2 or NVMe-based alternatives if your workflow demands sustained multi-gigabyte transfers or high-bitrate video editing.
Check on Amazon ➜
Mizex 5-Pillar Audit Breakdown
Engineering & Core Performance (30%) 3.8 / 5.0
Build Quality & Physical Design (20%) 3.7 / 5.0
Thermal, Power & Acoustics (20%) 4.0 / 5.0
Reliability & Stability (20%) 4.0 / 5.0
Buyer Value (10%) 4.2 / 5.0
Score Rationale
Bus bandwidth constraints and entry-level enclosure materials primarily anchor the overall evaluation, balancing accessible everyday storage against modest SATA-class throughput. Engineering & Architecture (3.8) reflects the straightforward USB 3.2 Gen 1 (5 Gbps) implementation and typical entry-level firmware maintenance. Build quality (3.7) highlights an ultra-lightweight 1.20 oz (34 g) profile, countered by an unreinforced ABS and polycarbonate casing devoid of metal shielding or ingress seals. Thermal management (4.0) benefits from the restrained power profile of a 5 Gbps bus, keeping operating temperatures stable under casual workloads despite the absence of an internal aluminum heat sink. Reliability (4.0) is grounded in proven mass storage class host compatibility, with component longevity aligned to standard consumer TLC flash. Buyer value (4.2) delivers affordable plug-and-play capacity for everyday backup tasks, though non-repairable sealed construction limits modular longevity.
Audited 42 days ago
✔ Pros
  • Ultra-lightweight 1.20 oz (34 g) footprint for effortless everyday pocket carry
  • Broad plug-and-play operating system compatibility via reversible USB Type-C
  • Modest power draw and heat generation within a 5 Gbps operational envelope
✖ Cons
  • Throughput capped at USB 3.2 Gen 1 speeds (550 MB/s) compared to 20 Gbps Gen 2x2 peers
  • All-plastic ABS/PC housing lacks aluminum heat sinking or ruggedized ingress protection

Overview

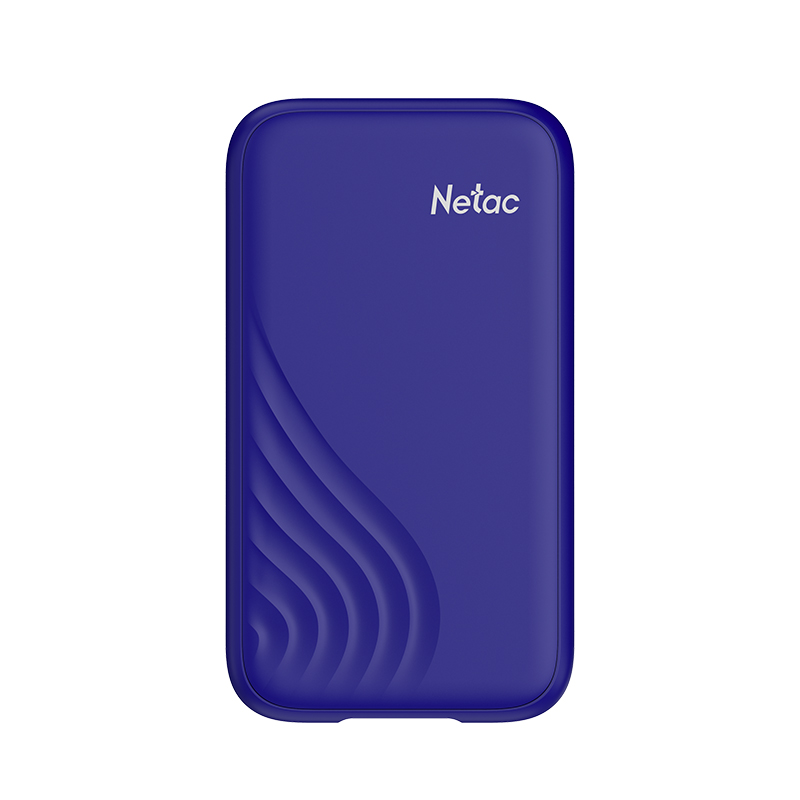

Operating across a USB 3.2 Gen 1 interface, external data delivery is anchored by a 5 Gbps host connection that caps sequential throughput at approximately 550 MB/s read and 480 MB/s to 500 MB/s write. This architectural envelope prioritizes SATA-class bandwidth and widespread controller compatibility rather than the high-bandwidth 20 Gbps signaling seen in higher-tier ZX20 variants. Encapsulated in a two-piece ABS and polycarbonate polymer enclosure measuring 3.66 x 2.05 x 0.35 in (93 x 52 x 9 mm), the chassis minimizes carrying mass down to 1.20 oz (34 g), integrating the flash controller and NAND package onto a single compact PCB terminating at a standard USB Type-C port.

Thermal dissipation relies on passive dissipation through the plastic housing, which maintains manageable surface temperatures under typical intermittent file transfers due to the low power envelope of the 5 Gbps bridge. Without an internal aluminum heat spreader, prolonged sequential writes inevitably saturate the pseudo-SLC cache buffer, after which write rates drop to native TLC steady-state speeds. Firmware updates follow standard entry-level storage practices with factory-flashed microcode and no dedicated desktop maintenance suite. The unit provides dependable plug-and-play mass storage across Windows, macOS, Linux, and Android hosts for general data transit and routine backups.

Technical Specifications

Brand Netac
Model ZX20III EVO 1TB Portable SSD
Storage Capacity 1TB
Host Interface USB 3.2 Gen 1 (5 Gbps)
Connector Type USB Type-C
Max Sequential Read Up to 550 MB/s
Max Sequential Write Up to 500 MB/s
Chassis Material ABS + Polycarbonate (PC) Plastic
Dimensions 3.66 x 2.05 x 0.35 in (93 x 52 x 9 mm)
Weight 1.20 oz (34 g)
Host Compatibility Windows, macOS, Linux, Android
📋
