Overview

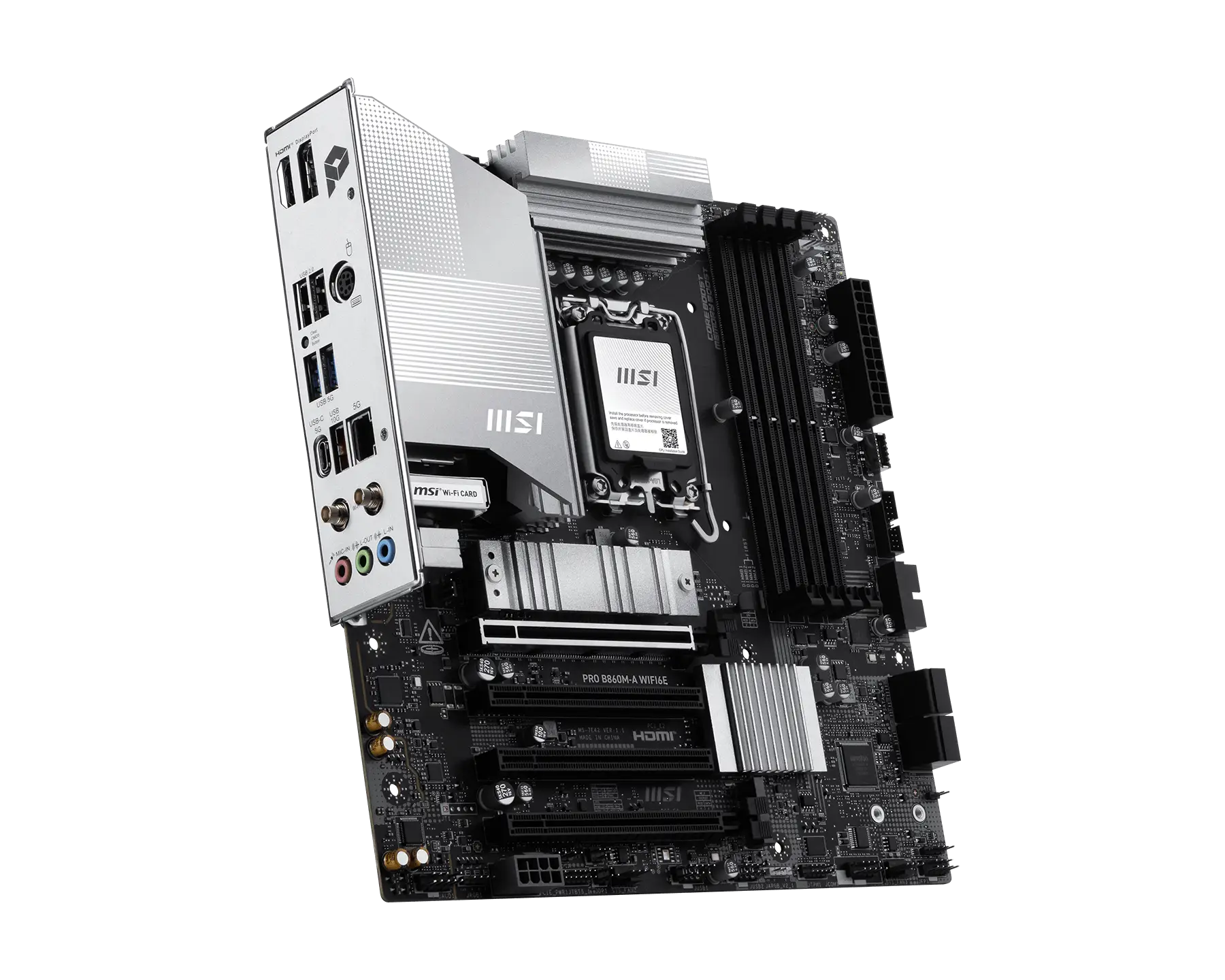

Routing high-bandwidth PCIe 5.0 lanes directly from the LGA 1851 socket to both the primary x16 expansion slot and the top M.2 storage interface, this micro-ATX platform establishes a modern I/O foundation for Intel Core Ultra Series 2 processors. Motherboard architecture centers around Intel’s B860 chipset, supporting high-density DDR5 memory configurations capable of reaching up to 8800+ MT/s via overclocking alongside standard JEDEC profiles from 4800 to 6400 MT/s. Peripheral expansion is reinforced through an onboard JTBT5 header supporting next-generation Thunderbolt 5 add-in cards with RTD3 power management, complementing the secondary PCIe 4.0 x4 and dual PCIe 4.0 x1 slots.
Thermal dissipation relies on an extended metal heatsink structure spanning the power delivery circuitry, paired with tool-less EZ M.2 Shield Frozr covers engineered to tame thermals on high-speed solid-state drives without requiring extra hardware tools. Networking integration stands out within this tier via a dedicated Realtek 8126 5Gbps Ethernet controller alongside tri-band Wi-Fi 6E delivering 160MHz channels up to 2.4Gbps across the 2.4GHz, 5GHz, and 6GHz spectrums. The streamlined micro-ATX footprint balances compact chassis integration with robust trace isolation, making it an efficient, low-overhead platform for demanding productivity and gaming builds.
Technical Specifications
| Brand | MSI |
| Model | PRO B860M-A WIFI6E |
| Chipset | Intel B860 |
| Form Factor | Micro-ATX |
| CPU Socket | LGA 1851 |
| Supported Processors | Intel Core Ultra Processors (Series 2) |
| Memory Standard | DDR5 |
| Memory Speed Support | Up to 8800+ MT/s (OC) / 6400-4800 MT/s (JEDEC) |
| PCIe Expansion Slots | 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4, 2x PCIe 4.0 x1 |
| M.2 Storage Interfaces | 1x M.2 PCIe 5.0 x4 (CPU), 2x M.2 PCIe 4.0 |
| Ethernet Controller | Realtek 8126 5Gbps LAN |
| Wireless Networking | Wi-Fi 6E (2.4GHz / 5GHz / 6GHz, 160MHz, up to 2.4Gbps) |
| Thunderbolt Support | Onboard Thunderbolt 5 header (JTBT5, RTD3) |
| Thermal Architecture | Extended Heatsink Design, EZ M.2 Shield Frozr |
- Native PCIe 5.0 x16 and PCIe 5.0 x4 M.2 slots driven directly by the CPU
- Integrated Realtek 8126 5Gbps LAN alongside tri-band Wi-Fi 6E
- Onboard Thunderbolt 5 expansion header (JTBT5) with RTD3 support
- Tool-less EZ M.2 Shield Frozr heatsink and drive installation
- Secondary and tertiary M.2 interfaces operate at PCIe 4.0 speeds rather than Gen 5
- Micro-ATX layout limits downstream expansion to one PCIe 4.0 x4 and two PCIe 4.0 x1 slots
Recommended Alternatives in Motherboards
At a Glance
How reliable is the MSI PRO B860M-A WIFI6E according to Mizex audits?
An ideal micro-ATX foundation for Intel Core Ultra Series 2 builds demanding 5Gbps wired networking, DDR5 memory scalability, and dual Gen 5 bandwidth without flagship platform overhead.
What are the known quirks or drawbacks of the MSI PRO B860M-A WIFI6E?
Our reliability audit identified the following documented caveats:
- Secondary and tertiary M.2 interfaces operate at PCIe 4.0 speeds rather than Gen 5
- Micro-ATX layout limits downstream expansion to one PCIe 4.0 x4 and two PCIe 4.0 x1 slots
What are the key engineering highlights of the MSI PRO B860M-A WIFI6E?
The top strengths recorded in our evaluation include:
- Native PCIe 5.0 x16 and PCIe 5.0 x4 M.2 slots driven directly by the CPU
- Integrated Realtek 8126 5Gbps LAN alongside tri-band Wi-Fi 6E
- Onboard Thunderbolt 5 expansion header (JTBT5) with RTD3 support
- Tool-less EZ M.2 Shield Frozr heatsink and drive installation
