MSI MEG Maestro 900R Review: Rotating test bench meets extreme weight

Mizex is reader-supported. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.
● HIGHLY RATED
Site Score
4.5 / 5.0
Buyer Guidance: An uncompromising luxury showcase chassis suited exclusively for flagship liquid-cooled builds and bench testing, provided you have the dedicated desk space and budget for a 33 kg enclosure.
Check Availability & Pricing
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.7 / 5.0
Build Quality & Physical Design (20%) 4.8 / 5.0
Thermal, Power & Acoustics (20%) 4.5 / 5.0
Reliability & Stability (20%) 4.6 / 5.0
Buyer Value (10%) 3.4 / 5.0
Score Rationale
The composite score of 4.4 reflects world-class craftsmanship paired with niche enthusiast utility. Engineering & Architecture (4.7) excels via the versatile four-way rotatable open test bench motherboard tray, comprehensive 60W USB-PD front I/O, and bundled PCIe 5.0 hardware. Build quality (4.8) is virtually peerless, employing heavy-gauge CNC-machined aluminum and triple tempered glass with zero structural flex. Thermal management (4.5) leverages high-volume chimney airflow with triple 160 mm reverse-blade intake fans and dual 420 mm radiator support. Reliability (4.6) is reinforced by industrial-grade chassis tolerances and robust mechanical retention mechanisms. Buyer value (3.4) reflects a steep enthusiast price barrier and extreme freight footprint, confining its appeal to showcase and bench-testing power users.
Audited 23 days ago
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
Scores adjust dynamically as verified community ratings accumulate.
✔ Pros
  • Detachable 4-way rotatable motherboard tray doubles as an independent open-air test bench
  • Heavyweight CNC-machined aluminum construction with triple-sided panoramic tempered glass
  • Outstanding liquid cooling capacity supporting simultaneous dual 420 mm radiators and up to 14 fans
  • Class-leading front I/O with five USB Type-C ports including 60W USB-PD and bundled PCIe 5.0 riser
✖ Cons
  • Enormous footprint and massive 33 kg unpopulated weight require reinforced desk support and two-person handling
  • Enthusiast-tier $699.99 pricing and substantial freight delivery logistics

Overview

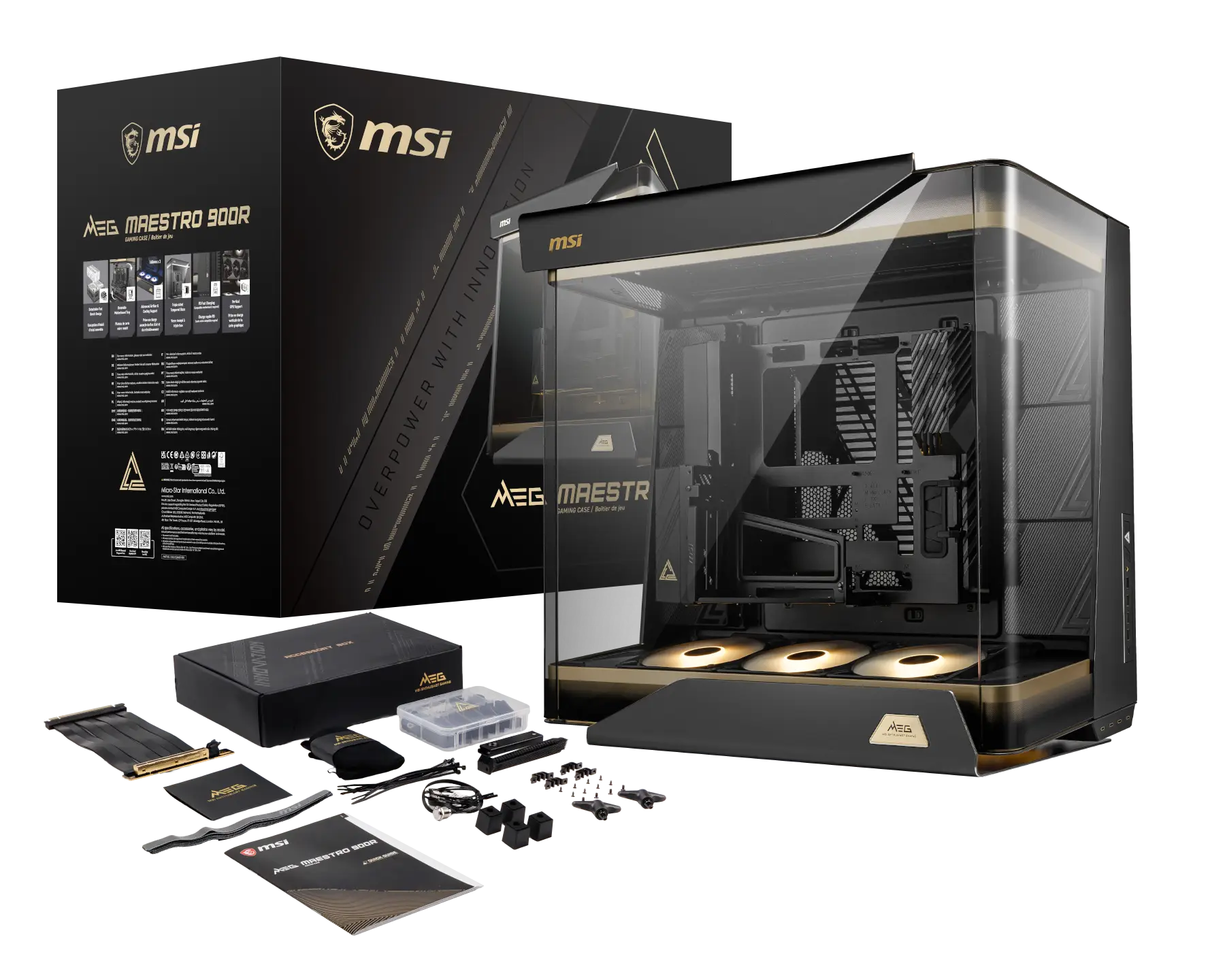

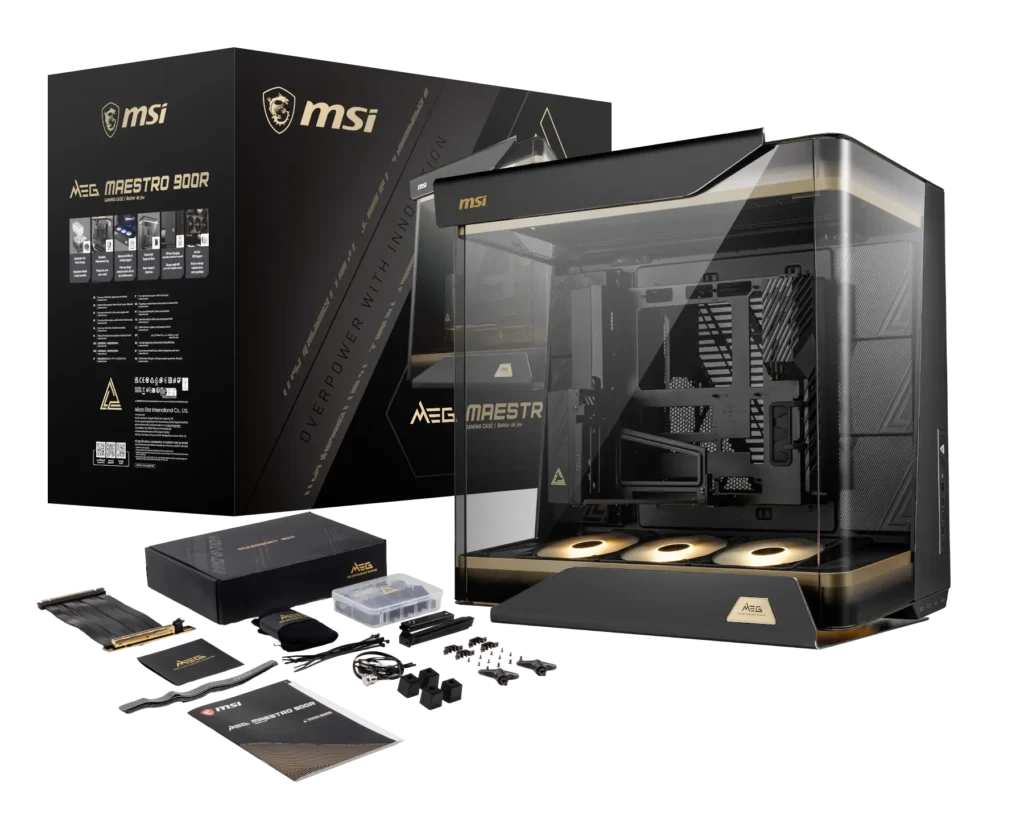

The MSI MEG Maestro 900R represents an ambitious showcase chassis engineered for flagship workstations and bespoke enthusiast systems. At the core of its architecture is an innovative detachable, four-way rotatable motherboard tray that unlatches to operate standalone as an open test bench, accommodating form factors from Mini-ITX up to E-ATX. The structural frame is constructed from precision CNC-machined aluminum wrapped in three-sided panoramic tempered glass panels, framing a centered component layout tailored for gallery presentation. Connectivity is exceptionally well-provisioned, integrating a comprehensive front I/O panel featuring five USB Type-C connections—including a high-speed 20Gbps port backed by 60W USB Power Delivery—alongside four USB 5Gbps Type-A ports, a dedicated LED control switch, and an included PCIe 5.0 riser assembly with a vertical GPU mounting bracket.

Thermal design is tailored toward extreme multi-radiator configurations, accommodating up to 14 cooling fans simultaneously with native support for dual 420 mm radiators across the top and bottom brackets. MSI delivers positive air pressure out of the box through three pre-installed 160 mm ARGB reverse-blade bottom intake fans, drawing ambient air smoothly up through the chassis floor while keeping mechanical fan hub structures visually hidden. In practical deployment, the Maestro 900R is a specialized engineering statement that demands significant physical accommodation, weighing an immense 33 kilograms unpopulated and requiring expansive desk space, making component installation a dedicated two-person procedure rewarded by exceptional structural rigidity and showcase aesthetics.

Technical Specifications

Brand MSI
Model MSI MEG Maestro 900R
Case Form Factor Full Tower
Motherboard Support E-ATX, ATX, Micro-ATX, Mini-ITX
Materials CNC-machined aluminum, triple-sided tempered glass
Dimensions 695 x 379 x 671 mm (27.36 x 14.92 x 26.42 in)
Net Weight 33 kg (72.75 lbs)
Expansion Slots 8 horizontal + 3 vertical
Max Gpu Clearance 440 mm
Max Cpu Cooler Clearance 170 mm
Max Psu Length 200 mm
Preinstalled Fans 3 x 160 mm ARGB reverse blade fans (bottom)
Fan Capacity Up to 14 fans (Top: 4x120/3x140/3x160mm, Side: 6x120mm, Bottom: 4x120/3x140/3x160mm)
Radiator Capacity Top: up to 420 mm, Side: up to 360 mm, Bottom: up to 420 mm
Front Io 1x USB 20Gbps Type-C (60W PD), 4x USB 10Gbps Type-C, 4x USB 5Gbps Type-A, 1x Audio/Mic combo
Drive Bays Up to 9 x 2.5" SSD / Up to 5 x 3.5" HDD
Special Features Detachable 4-way rotatable motherboard tray (open test bench), PCIe 5.0 riser cable included
📋
