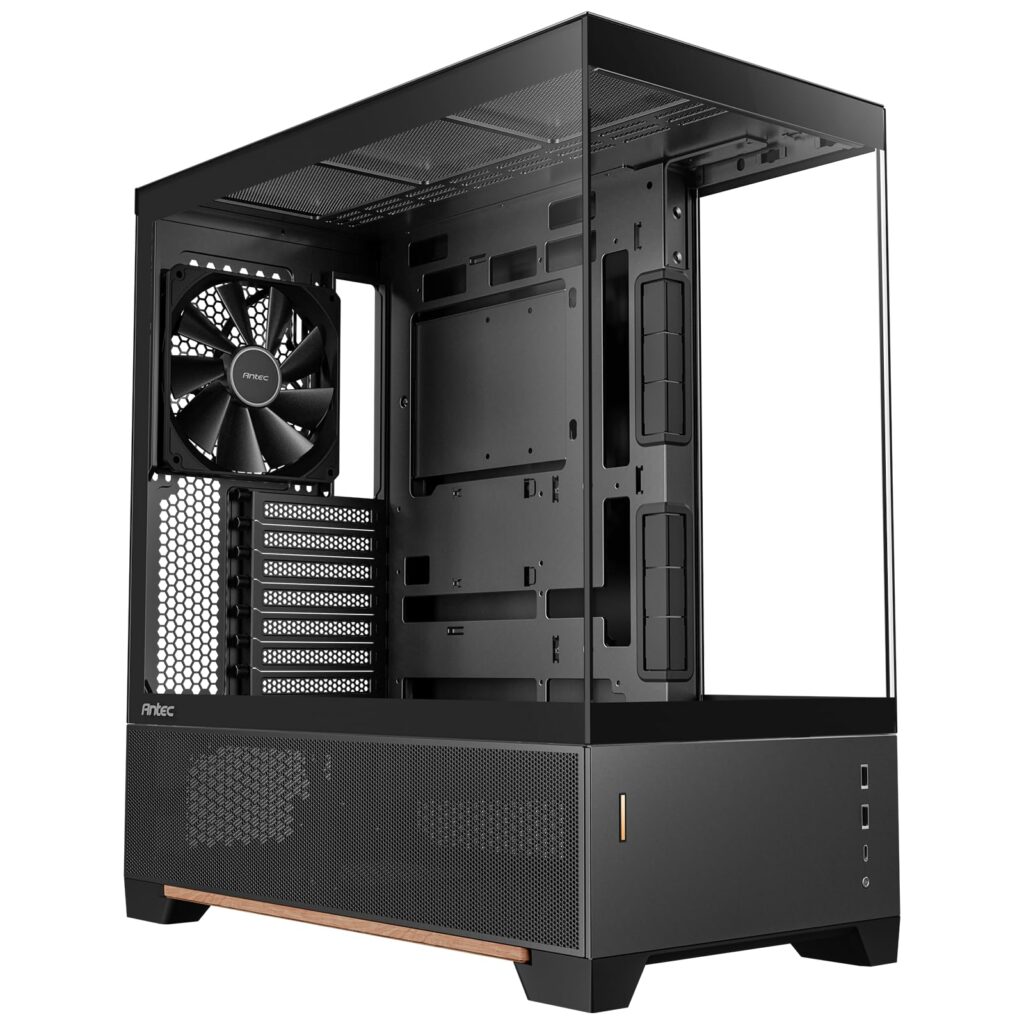

Antec C6 Wood Review: Walnut Accents Meet Back-Connect Architecture

Mizex is reader-supported. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.
● HIGHLY RATED
Site Score
4.5 / 5.0
Buyer Guidance: An exceptional mid-tower enclosure for clean builds requiring native back-connect motherboard routing, genuine walnut aesthetics, and physical clearance for flagship RTX 5090 graphics cards.
Check Availability & Pricing
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.5 / 5.0
Build Quality & Physical Design (20%) 4.6 / 5.0
Thermal, Power & Acoustics (20%) 4.4 / 5.0
Reliability & Stability (20%) 4.5 / 5.0
Buyer Value (10%) 4.5 / 5.0
Score Rationale
Native back-connect motherboard compatibility combined with genuine walnut wood architectural accents anchors this 4.5 composite evaluation. Build quality (4.6) stands out with seamless panoramic tempered glass, refined wood inlay, and sturdy tool-free ball-stud retention mechanisms. Engineering & Architecture (4.5) demonstrates thoughtful layout execution through a side-mounted power supply chamber, dedicated floating clearance for flagship GPUs including the RTX 5090, and a 10 Gbps front USB-C interface. Long-term reliability (4.5) is reinforced by a certified 13A internal power extension cable, full-length pull-out dust filtration, and durable clip mechanisms. Thermal management (4.4) is well supported out of the box via three pre-installed PWM fans—including two reverse-intake units—and 360 mm (14.17 in) top radiator accommodation, while buyer value (4.5) remains strong thanks to the bundled reverse fan configuration and modern internal routing.
Audited today
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
Scores adjust dynamically as verified community ratings accumulate.
✔ Pros
  • Native compatibility with back-connect motherboards for completely concealed cable routing
  • Pre-installed cooling layout including two 120 mm (4.72 in) PWM reverse intake fans and one 140 mm (5.51 in) PWM exhaust fan
  • Generous floating GPU clearance accommodating flagship graphics cards up to the RTX 5090
  • Premium walnut wood accent trim integrated into front framing and pull-out bottom dust filter
✖ Cons
  • Side-mounted power supply placement requires routing AC input through an internal 13A extension cable
  • Total fan capacity is capped at six fan mounts, offering less expansion than larger dual-chamber cases

Overview

Pairing architectural walnut wood accent trim with panoramic tempered glass, the chassis architecture is engineered to eliminate visible front-facing cabling while maintaining direct airflow paths for high-draw GPUs. The internal layout supports both standard ATX motherboards and rear-connecting back-connect standards, redirecting all power and data routing behind the main tray to preserve an unobstructed main display chamber. Structural versatility is reinforced by a floating graphics card clearance design engineered to support flagship GPUs up to the GeForce RTX 5090, enabled by a side-mounted power supply chamber that frees vertical lower intake volume.

Thermal airflow management is anchored by a factory three-fan configuration consisting of two 120 mm (4.72 in) reverse-blade PWM intake fans alongside a single 140 mm (5.51 in) PWM exhaust fan, expandable to six fan mounts across the chassis. Liquid cooling headroom is provided along the top panel with support for radiators up to 360 mm (14.17 in), venting rising thermal plumes away from the GPU intake chamber. The lower intake zone is shielded by a full-length pull-out dust filter framed in matching walnut trim, allowing maintenance extraction without lifting or tilting the chassis.

Chassis servicing centers on a tool-free mounting system using ball-stud panel latches, rear clip release handles, and hook-secured lower mesh panels that detach smoothly without fasteners. Power delivery safety is maintained through an included 13A high-specification internal extension cable designed specifically for the side-mounted PSU orientation, preserving proper gauge margins and preventing sharp terminal bend angles. Front I/O connectivity provides modern high-speed peripherals with a 10 Gbps USB Type-C port, two USB 3.0 Type-A ports, and a 3.5 mm (0.14 in) audio combo jack.

Technical Specifications

Brand Antec
Model C6 Wood
Side Panel Panoramic tempered glass
Materials & Accents Walnut wood accent trim, mesh ventilation panels, tempered glass
Pre Installed Fans 2x 120 mm (4.72 in) PWM reverse fans, 1x 140 mm (5.51 in) PWM fan
Maximum Fan Capacity Up to 6 fans
Top Radiator Support Up to 360 mm (14.17 in)
Motherboard Compatibility Standard and Back-Connect motherboards
Graphics Card Clearance Floating GPU design, supports NVIDIA GeForce RTX 5090
Front I/O Interface 1x USB Type-C (10 Gbps), 2x USB 3.0 Type-A, 1x 3.5 mm (0.14 in) Headphone/Mic Combo Jack, Power button
Power Supply Mounting Side-mounted PSU chamber with included 13A high-spec extension cable
Dust Filtration Pull-out bottom dust filter with walnut wood accent trim
Panel Assembly Mechanism Tool-free design with rear clip handles, ball studs, and hook-secured lower mesh
📋
