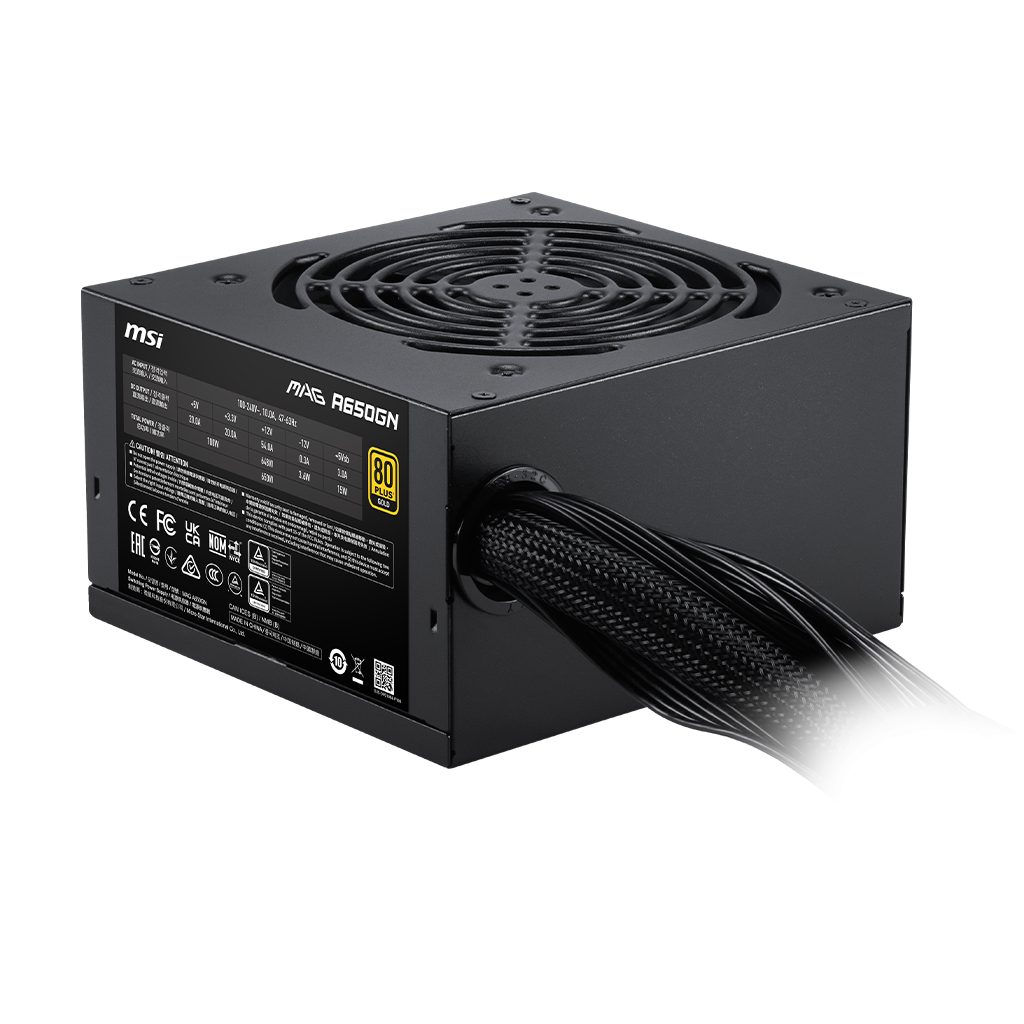

MSI MAG A650GN II Review: Affordable ATX 3.1 Power Architecture

MSI MAG A650GN II Review: Affordable ATX 3.1 Power Architecture
▲ DOCUMENTED QUIRKS
Site Score
4.1 / 5.0
Buyer Guidance: Ideal for budget-conscious builders needing native 12V-2x6 GPU power support, provided your chassis has ample basement space to tuck away the non-modular cable harness.
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.4 / 5.0
Build Quality & Physical Design (20%) 3.9 / 5.0
Thermal, Power & Acoustics (20%) 4.0 / 5.0
Reliability & Stability (20%) 4.1 / 5.0
Buyer Value (10%) 4.2 / 5.0
Score Rationale
Native ATX 3.1 compliance paired with Full-Bridge LLC resonant topology and DC-to-DC conversion establishes strong Engineering & Architecture (4.4), ensuring modern transient spike handling for PCIe 5.1 graphics cards. Real-World Reliability (4.1) benefits from a complete five-tier protection suite including over-temperature and over-current safeguards, offset slightly by a sleeve bearing cooling fan with lower rated endurance than fluid dynamic alternatives. Build quality (3.9) reflects a sturdy, compact 140 mm steel chassis compromised by a stiff, non-modular fixed cable harness that complicates enclosure routing. Thermal management and acoustic profile (4.0) maintains controlled operating temperatures through 80 PLUS Gold efficiency, while buyer value (4.2) delivers an accessible route to next-generation power standards despite the absence of modular cable flexibility.
Audited today
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
💬 Join the Discussion ↓
Scores adjust dynamically as verified community ratings accumulate.

Overview

Engineered around the updated ATX 3.1 standard, power delivery centers on accommodating modern GPU transient spikes up to 2x total system excursion and 3x GPU power excursion across a dedicated 16-pin 12V-2×6 connector. The internal electrical architecture incorporates a Full-Bridge LLC resonant converter paired with DC-to-DC rectification rails, converting 100-240 VAC line voltage into tightly regulated internal rails with 80 PLUS Gold electrical efficiency. Rated for 650W continuous output, the unit integrates a complete protection suite covering over-voltage (OVP), over-current (OCP), over-power (OPP), over-temperature (OTP), and short-circuit protection (SCP) to maintain system safety during severe electrical faults.

From a physical chassis perspective, an abbreviated 5.51 in (140 mm) depth alongside standard 5.91 in (150 mm) width and 3.39 in (86 mm) height maximizes PSU shroud clearance across compact mid-tower enclosures. Thermal dissipation relies on a 4.72 in (120 mm) cooling fan cycling airflow through stamped ventilation grilles, assisted by the low thermal dissipation overhead of 80 PLUS Gold efficiency. However, the cooling assembly utilizes a sleeve bearing rather than a fluid dynamic bearing, representing an operational trade-off that yields higher friction and lower rated mechanical longevity across prolonged horizontal thermal cycles.

Integration ergonomics reflect a strictly non-modular layout, anchoring all flat black ribbon cables—including the 24-pin ATX, 8-pin (4+4) EPS, dual (6+2) PCIe, and peripheral lines—directly to the internal PCB. While the low-profile flat profile assists individual runs along case trays, managing unused harness segments requires generous under-shroud basement storage. For system builders assembling mid-range rigs with modern PCIe 5.1 graphics cards, the unit delivers stable electrical fundamentals and next-generation connector safety, accepting cable clutter and basic fan bearing specifications as the primary trade-offs.

Technical Specifications

Brand MSI
Model MAG A650GN II
Rated Wattage 650W
Form Factor ATX
Efficiency Certification 80 PLUS Gold
ATX Standard ATX 3.1
PCIe Standard PCIe 5.1
Modularity Non-Modular
Cable Type Flat black cables
Cooling Fan Size 4.72 in (120 mm)
Fan Bearing Type Sleeve bearing
Topology Full-Bridge LLC Resonant with DC-DC
Power Excursion Capacity Up to 2x total power excursion, 3x GPU power excursion
Connectors 1x 24-pin ATX, 1x 8-pin EPS (4+4), 1x 12V-2x6 (16-pin), 2x PCIe (6+2 pin), SATA, Molex
Hardware Protections OVP, OCP, OPP, OTP, SCP
Dimensions 5.51 x 5.91 x 3.39 in (140 x 150 x 86 mm)
AC Input Voltage 100-240 VAC
AC Input Frequency 50-60 Hz
✔ Pros
  • Native ATX 3.1 compliance and dedicated 12V-2x6 connector accommodate 2x total and 3x GPU transient power excursions
  • Full-Bridge LLC resonant topology with DC-to-DC conversion ensures stable rail regulation and 80 PLUS Gold efficiency
  • Full industrial electrical protection suite comprising OVP, OCP, OPP, OTP, and SCP
  • Compact 5.51 in (140 mm) chassis depth provides broad compatibility in smaller cases
✖ Cons
  • Non-modular fixed cable design increases chassis basement clutter and complicates routing
  • Sleeve bearing fan exhibits lower rated mechanical operating lifespan compared to fluid dynamic bearing designs
📋

Primary Sources & Audited Citations

Where To Buy

Amazon
Check current stock & pricing

Disclosure: Mizex is an independent hardware database & audit index. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.

100% Sponsor-Free Platform
Zero paid placement • Zero brand bias

Support Independent Hardware Research

Mizex is an independent hardware intelligence platform. We accept zero manufacturer sponsorships, paid product reviews, or promotional placements. Every hardware profile, specification breakdown, and reliability rating is researched objectively from public documentation and verified community telemetry. If our database helped guide your build or purchase, consider supporting our research.

✓ Community-Driven ✓ Open Research ✓ 100% Objective Data
Compare & Research

Recommended Alternatives in Power Supplies (PSUs)

Compare Other Models →

At a Glance

How reliable is the MSI MAG A650GN II Review: Affordable ATX 3.1 Power Architecture according to Mizex audits?
Mizex Composite Score: 4.1 / 5.0 ▲ DOCUMENTED QUIRKS

Ideal for budget-conscious builders needing native 12V-2x6 GPU power support, provided your chassis has ample basement space to tuck away the non-modular cable harness.

What are the known quirks or drawbacks of the MSI MAG A650GN II Review: Affordable ATX 3.1 Power Architecture?

Our reliability audit identified the following documented caveats:

  • Non-modular fixed cable design increases chassis basement clutter and complicates routing
  • Sleeve bearing fan exhibits lower rated mechanical operating lifespan compared to fluid dynamic bearing designs
What are the key engineering highlights of the MSI MAG A650GN II Review: Affordable ATX 3.1 Power Architecture?

The top strengths recorded in our evaluation include:

  • Native ATX 3.1 compliance and dedicated 12V-2x6 connector accommodate 2x total and 3x GPU transient power excursions
  • Full-Bridge LLC resonant topology with DC-to-DC conversion ensures stable rail regulation and 80 PLUS Gold efficiency
  • Full industrial electrical protection suite comprising OVP, OCP, OPP, OTP, and SCP
  • Compact 5.51 in (140 mm) chassis depth provides broad compatibility in smaller cases
