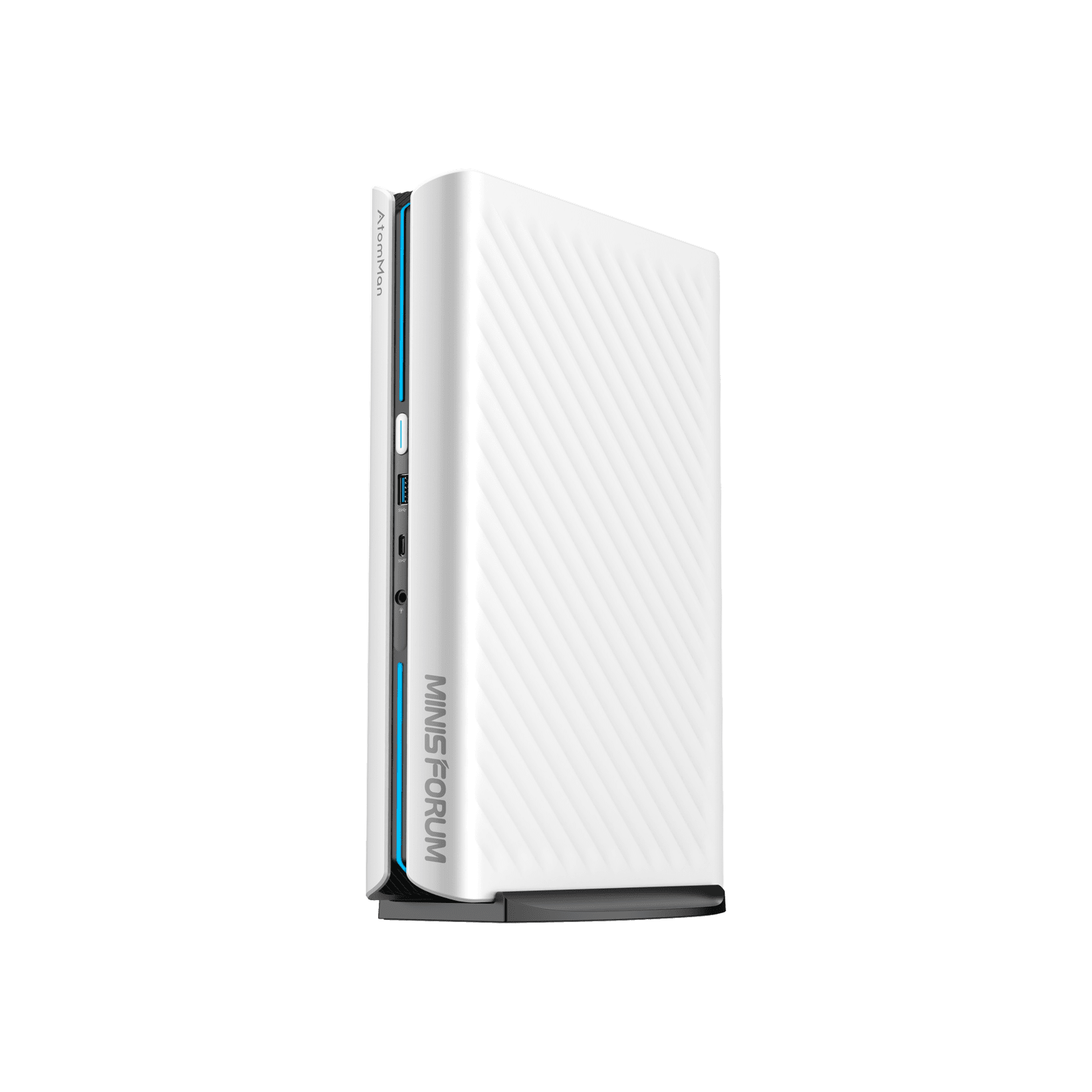

Minisforum AtomMan G1 Pro-89A6

Minisforum AtomMan G1 Pro-89A6
▲ DOCUMENTED QUIRKS
Site Score
4.3 / 5.0
Buyer Guidance: The Minisforum AtomMan G1 Pro-89A6 is a potent compact desktop delivering top-tier all-AMD processing and an internal power supply in a 3.8-liter chassis, though prospective buyers should account for audible fan noise under peak 3,600 RPM cooling loads.
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.5 / 5.0
Build Quality & Physical Design (20%) 4.2 / 5.0
Thermal, Power & Acoustics (20%) 3.9 / 5.0
Reliability & Stability (20%) 4.3 / 5.0
Buyer Value (10%) 4.6 / 5.0
Score Rationale
The composite score of 4.3 is anchored by ambitious engineering and architecture (4.5) that packages a 16-core Zen 4 processor, 16 GB discrete Radeon graphics, and an internal 350W power supply into a 3.8-liter footprint. Build quality (4.2) is demonstrated by a rigid, densely packaged chassis with dedicated cooling compartmentalization. Thermal and acoustic management (3.9) balances multi-pipe heat dissipation against an aggressive 3,600 RPM fan profile under heavy load, requiring acoustic tolerance during demanding workloads. Real-world reliability (4.3) benefits from eliminating external power brick failure points and deploying mature mobile-derived silicon, while buyer value (4.6) is reinforced by dual PCIe 4.0 storage slots and modular SO-DIMM expansion up to 96 GB.
Audited today
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
💬 Join the Discussion ↓
Scores adjust dynamically as verified community ratings accumulate.

Overview

The Minisforum AtomMan G1 Pro-89A6 represents an ambitious compact desktop architecture, packing a 16-core, 32-thread AMD Ryzen 9 8945HX processor alongside an AMD Radeon RX 9060 XT discrete graphics module with 16 GB of VRAM into a dense 3.8-liter enclosure. Moving away from the unwieldy external power bricks common to high-power mini PCs, the chassis integrates an internal 350W power supply with segregated internal airflow channels. Connectivity is thoroughly modern across the platform, integrating a 5 Gbps RJ45 Ethernet controller, Wi-Fi 7, Bluetooth 5.4, and an expansive video display matrix that includes DisplayPort 2.1b, DisplayPort 1.4a, and dual HDMI 2.1 outputs split across discrete and integrated graphics pipelines.

Thermal dissipation is handled by a specialized multi-zone configuration utilizing five copper heat pipes, dividing dissipation duties between a dedicated CPU blower fan and a triple-fan array cooling the 140W TGP discrete GPU. Under peak multi-threaded compute and gaming workloads, cooling fans spin up to a verified ceiling of 3,600 RPM, trading acoustic discretion for thermal headroom within a constrained small-form-factor chassis. While comprehensive board-level component longevity and decibel telemetry await further retail physical teardowns, user serviceability remains strong thanks to accessible dual SO-DIMM slots supporting up to 96 GB of DDR5 memory and two PCIe 4.0 M.2 storage slots supporting up to 8 TB in aggregate.

Technical Specifications

Brand Minisforum
Model AtomMan G1 Pro-89A6
Processor AMD Ryzen 9 8945HX (16 Cores, 32 Threads, up to 5.4 GHz Boost, Zen 4)
Graphics AMD Radeon RX 9060 XT (16 GB VRAM, 140W TGP)
Memory 32 GB DDR5-5200 (2x SO-DIMM slots, upgradeable up to 96 GB)
Storage 1 TB M.2 PCIe SSD (dual M.2 PCIe 4.0 x4 slots, up to 8 TB total supported)
Chassis Volume 3.8 L
Power Supply 350W integrated internal power supply
Cooling Architecture Dual cooling solution with 5 copper heat pipes, CPU blower fan, triple GPU fan array, compartmentalized PSU cooling (fans up to 3,600 RPM)
Networking 5 Gbps RJ45 Ethernet, Wi-Fi 7, Bluetooth 5.4
Front Interfaces 1x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x 3.5 mm audio combo jack
Rear Interfaces 1x DisplayPort 2.1b (dGPU), 1x DisplayPort 1.4a (dGPU), 2x HDMI 2.1 (1x iGPU, 1x dGPU), 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 2 Type-A, 1x 5 GbE RJ45 LAN
✔ Pros
  • Exceptional compute and graphics density pairing a 16-core Ryzen 9 with 16 GB Radeon RX 9060 XT in a 3.8-liter volume
  • Integrated 350W internal power supply eliminates cumbersome external power bricks
  • High physical serviceability supporting up to 96 GB DDR5 SO-DIMM memory and dual M.2 PCIe 4.0 SSDs up to 8 TB
  • Advanced I/O connectivity including 5 GbE LAN, Wi-Fi 7, and native DisplayPort 2.1b
✖ Cons
  • Cooling fans ramp aggressively up to 3,600 RPM under demanding sustained processing loads
  • Limited to a single hardware configuration at launch (32 GB RAM, 1 TB SSD)
📋

Primary Sources & Audited Citations

Where To Buy

Minisforum Official Store
Check current stock & pricing

Disclosure: Mizex is an independent hardware database & audit index. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.

100% Sponsor-Free Platform
Zero paid placement • Zero brand bias

Support Independent Hardware Research

Mizex is an independent hardware intelligence platform. We accept zero manufacturer sponsorships, paid product reviews, or promotional placements. Every hardware profile, specification breakdown, and reliability rating is researched objectively from public documentation and verified community telemetry. If our database helped guide your build or purchase, consider supporting our research.

✓ Community-Driven ✓ Open Research ✓ 100% Objective Data
Compare & Research

Recommended Alternatives in Mini PCs

Compare Other Models →

At a Glance

How reliable is the Minisforum AtomMan G1 Pro-89A6 according to Mizex audits?
Mizex Composite Score: 4.3 / 5.0 ▲ DOCUMENTED QUIRKS

The Minisforum AtomMan G1 Pro-89A6 is a potent compact desktop delivering top-tier all-AMD processing and an internal power supply in a 3.8-liter chassis, though prospective buyers should account for audible fan noise under peak 3,600 RPM cooling loads.

What are the known quirks or drawbacks of the Minisforum AtomMan G1 Pro-89A6?

Our engineering teardown identified the following documented caveats:

  • Cooling fans ramp aggressively up to 3,600 RPM under demanding sustained processing loads
  • Limited to a single hardware configuration at launch (32 GB RAM, 1 TB SSD)
What are the key engineering highlights of the Minisforum AtomMan G1 Pro-89A6?

The top strengths recorded in our teardown include:

  • Exceptional compute and graphics density pairing a 16-core Ryzen 9 with 16 GB Radeon RX 9060 XT in a 3.8-liter volume
  • Integrated 350W internal power supply eliminates cumbersome external power bricks
  • High physical serviceability supporting up to 96 GB DDR5 SO-DIMM memory and dual M.2 PCIe 4.0 SSDs up to 8 TB
  • Advanced I/O connectivity including 5 GbE LAN, Wi-Fi 7, and native DisplayPort 2.1b
