Overview

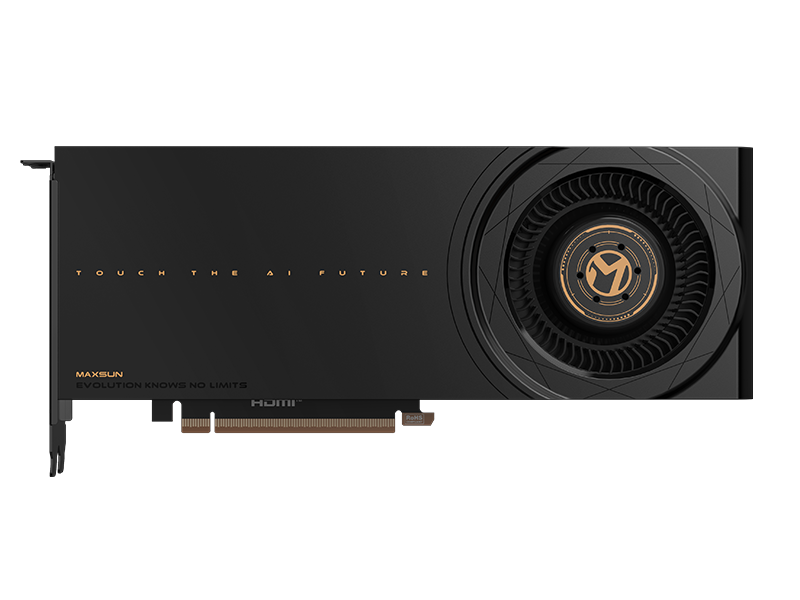

Deploying 32GB of high-density GDDR6 memory across a 256-bit bus, MAXSUN’s implementation of the Intel Xe2-HPG architecture targets memory-intensive workstation compute and local AI acceleration. Operating 32 Xe cores at a base clock of 2600 MHz with a 2800 MHz maximum boost, the processor yields 608 GB/s of dedicated bandwidth while interfacing over a high-throughput PCIe 5.0 x16 connection. Modern display pipelines are fully accounted for via three DisplayPort 2.1 connectors and a single HDMI 2.1a port, ensuring expansive multi-panel or high-refresh visual workflows directly from the rear bracket.
Physical construction adheres strictly to professional rack and workstation enclosure requirements. Measuring 10.51 x 4.37 x 1.52 in (267 x 111 x 38.65 mm), the card occupies a disciplined dual-slot envelope reinforced by a full-length metal backplate to resist structural deflection. Thermal dissipation is managed by a lateral turbo blower mated to an integrated vapor chamber base, funneling waste heat directly through the rear exhaust plate rather than recirculating warm air inside the host chassis. This configuration maintains thermal isolation in dense multi-GPU configurations, even as the 290W total board power demands consistent airflow and a dedicated 12V-2×6 power connection.
Technical Specifications
| Brand | MAXSUN |
| Model | Intel Arc Pro B70 32G Turbo |
| GPU Architecture | Intel Xe2-HPG |
| Compute Cores | 32 Xe Cores |
| Base Graphics Clock | 2600 MHz |
| Maximum Graphics Clock | 2800 MHz |
| Memory Capacity | 32GB |
| Memory Type | GDDR6 |
| Memory Speed | 19 Gbps |
| Memory Bus Width | 256-bit |
| Memory Bandwidth | 608 GB/s |
| Bus Interface | PCIe 5.0 x16 |
| Total Board Power (TBP) | 290W |
| Power Connector | 1 x 12V-2x6 |
| Cooling Design | Turbo blower with vapor chamber and metal backplate |
| Dimensions | 10.51 x 4.37 x 1.52 in (267 x 111 x 38.65 mm) |
| Form Factor | Dual-slot |
| Display Outputs | 3 x DisplayPort 2.1, 1 x HDMI 2.1a |
- Generous 32GB GDDR6 memory pool across a 256-bit bus delivering 608 GB/s bandwidth for AI and compute workflows
- True dual-slot lateral blower cooling with integrated vapor chamber and metal backplate, ideal for multi-GPU clustering
- Modern high-speed I/O featuring PCIe 5.0 x16 interface, three DisplayPort 2.1 outputs, and one HDMI 2.1a port
- Substantial 290W total board power requires a 12V-2x6 power connection and robust chassis ventilation
- Single-fan turbo blower design inherently exhibits higher acoustic output under sustained compute workloads
Primary Sources & Audited Citations
Recommended Alternatives in Graphics Cards (GPUs)
At a Glance
How reliable is the MAXSUN Intel Arc Pro B70 32G Turbo Review: High-Density 32GB Blower Workstation according to Mizex audits?
An optimal pick for multi-GPU AI inference and professional compute rigs requiring 32GB of VRAM in a strict dual-slot envelope, provided your workstation accommodates a 290W 12V-2x6 power delivery.
What are the known quirks or drawbacks of the MAXSUN Intel Arc Pro B70 32G Turbo Review: High-Density 32GB Blower Workstation?
Our reliability audit identified the following documented caveats:
- Substantial 290W total board power requires a 12V-2x6 power connection and robust chassis ventilation
- Single-fan turbo blower design inherently exhibits higher acoustic output under sustained compute workloads
What are the key engineering highlights of the MAXSUN Intel Arc Pro B70 32G Turbo Review: High-Density 32GB Blower Workstation?
The top strengths recorded in our evaluation include:
- Generous 32GB GDDR6 memory pool across a 256-bit bus delivering 608 GB/s bandwidth for AI and compute workflows
- True dual-slot lateral blower cooling with integrated vapor chamber and metal backplate, ideal for multi-GPU clustering
- Modern high-speed I/O featuring PCIe 5.0 x16 interface, three DisplayPort 2.1 outputs, and one HDMI 2.1a port
