- Modular slide-lock interlocking design clusters up to four fans onto a single receiver connection
- Dual control versatility supports both 2.4 GHz L-Wireless software sync and direct 5V ARGB/PWM motherboard headers
- Generous 77.34 CFM airflow and 2.52 mmH2O static pressure backed by an extended 28 mm frame depth
- Dual-zone 24-LED illumination with independent fan blade and frame diffuser control
- Noticeable acoustic harmonic resonance and humming in the 1100 to 1350 RPM band
- L-Connect 3 software exhibits occasional sensor-polling RPM spikes without sync lock enabled
- Strict pin alignment requires mounting the FLEX receiver and adapter on the same side of the fan cluster
Overview

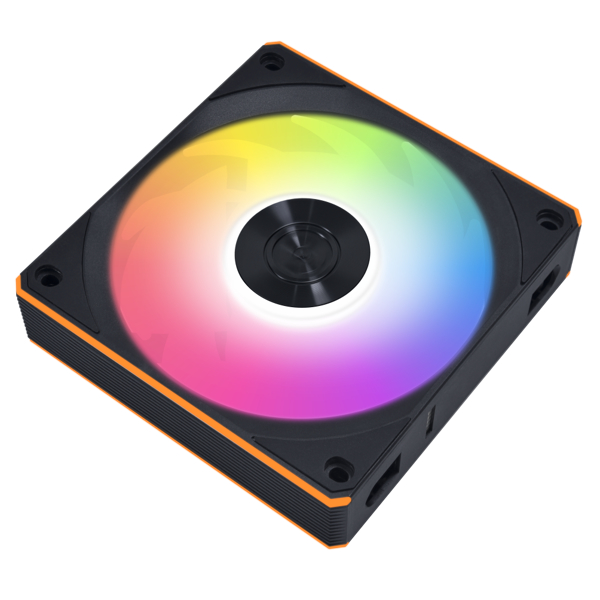

Interlocking pin-contact rails and a reinforced 1.10 in (28 mm) frame redirect cooling airflow while eliminating multi-cable wiring harnesses in modern PC enclosures. Measuring 4.72 x 4.88 x 1.10 in (120 x 124 x 28 mm), the chassis relies on polybutylene terephthalate (PBT) and polycarbonate construction paired with a brushed aluminum central medallion. Groups of up to four fans lock together mechanically via edge slide-clips, funneling power and PWM signaling through a single unified connection point to declutter internal chamber routing.
Aerodynamic delivery centers on a 9-blade standard impeller driven by a fluid dynamic bearing (FDB), operating across an active range of 250 to 2100 RPM alongside a true zero-RPM idle state. At maximum velocity, the standard blade configuration achieves 77.34 CFM of airflow and 2.52 mmH2O of static pressure while drawing 0.39 A (4.68 W) across a DC 6V to DC 13.2V operating window. Acoustic output tops out at 29.8 dBA under maximum load; however, harmonic resonance creates an audible motor hum between 1100 and 1350 RPM. Twenty-four independently addressable LEDs supply illumination across separate fan blade and perimeter frame zones.
Signal routing and profile management operate through the modular FLEX receiver, bridging dual control paradigms. Builders can pair the receiver with Lian Li’s 2.4 GHz L-Wireless controller to adjust curves and dual-zone lighting across 10 wireless device channels in L-Connect 3, or bypass proprietary software by connecting the included 4-pin PWM and 5V 3-pin ARGB leads directly to the motherboard header. Real-world implementation requires strict physical alignment, as mounting the receiver and adapter on opposing fan edges interrupts data continuity. Furthermore, intermittent sensor polling spikes within L-Connect 3 can cause brief uncommanded RPM surges unless the wireless synchronization lock is engaged or curve logic is handed off directly to motherboard BIOS.
Technical Specifications
| Brand | Lian Li |
| Model | UNI Fan CL Flex 120mm Normal Blade ARGB |
| Dimensions | 4.72 x 4.88 x 1.10 in (120 x 124 x 28 mm) |
| Blade Configuration | Standard (Normal Blade) |
| Fan Speed Range | 0, 250 - 2100 RPM |
| Max Airflow | 77.34 CFM |
| Max Static Pressure | 2.52 mmH2O |
| Acoustic Noise Level | 29.8 dBA |
| Bearing Type | Fluid Dynamic Bearing (FDB) |
| Chassis Materials | Polybutylene Terephthalate (PBT) / Polycarbonate (PC) / Aluminum |
| Input Power / Current | 4.68 W / 0.39 A |
| Operating Voltage | DC 6.0 V - 13.2 V |
| LED Illumination | 24 Addressable RGB LEDs (Dual-Zone) |
| Connectivity | Interlocking Pin Daisy-Chain, 4-Pin PWM, 5V 3-Pin ARGB, 2.4 GHz L-Wireless |
| Controller Compatibility | FLEX Receiver, L-Wireless Controller, Motherboard ARGB/PWM |
| Software Integration | L-Connect 3 / Motherboard BIOS Sync |
| Warranty | 3 Years (Fan and Receiver) |
Primary Sources & Audited Citations

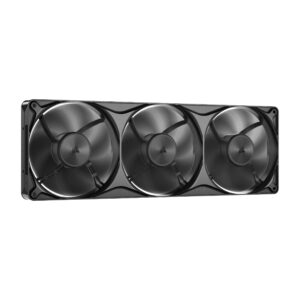

Recommended Alternatives in Case Fans
At a Glance
How reliable is the Lian Li UNI Fan CL Flex 120mm Normal Blade ARGB Review: Interlocking Cooling With Hybrid Control according to Mizex audits?
Choose the CL Flex 120 for clean, cable-minimized radiator or intake setups, but utilize direct motherboard PWM control if you wish to bypass L-Connect software revving quirks.
What are the known quirks or drawbacks of the Lian Li UNI Fan CL Flex 120mm Normal Blade ARGB Review: Interlocking Cooling With Hybrid Control?
Our reliability audit identified the following documented caveats:
- Noticeable acoustic harmonic resonance and humming in the 1100 to 1350 RPM band
- L-Connect 3 software exhibits occasional sensor-polling RPM spikes without sync lock enabled
- Strict pin alignment requires mounting the FLEX receiver and adapter on the same side of the fan cluster
What are the key engineering highlights of the Lian Li UNI Fan CL Flex 120mm Normal Blade ARGB Review: Interlocking Cooling With Hybrid Control?
The top strengths recorded in our evaluation include:
- Modular slide-lock interlocking design clusters up to four fans onto a single receiver connection
- Dual control versatility supports both 2.4 GHz L-Wireless software sync and direct 5V ARGB/PWM motherboard headers
- Generous 77.34 CFM airflow and 2.52 mmH2O static pressure backed by an extended 28 mm frame depth
- Dual-zone 24-LED illumination with independent fan blade and frame diffuser control
