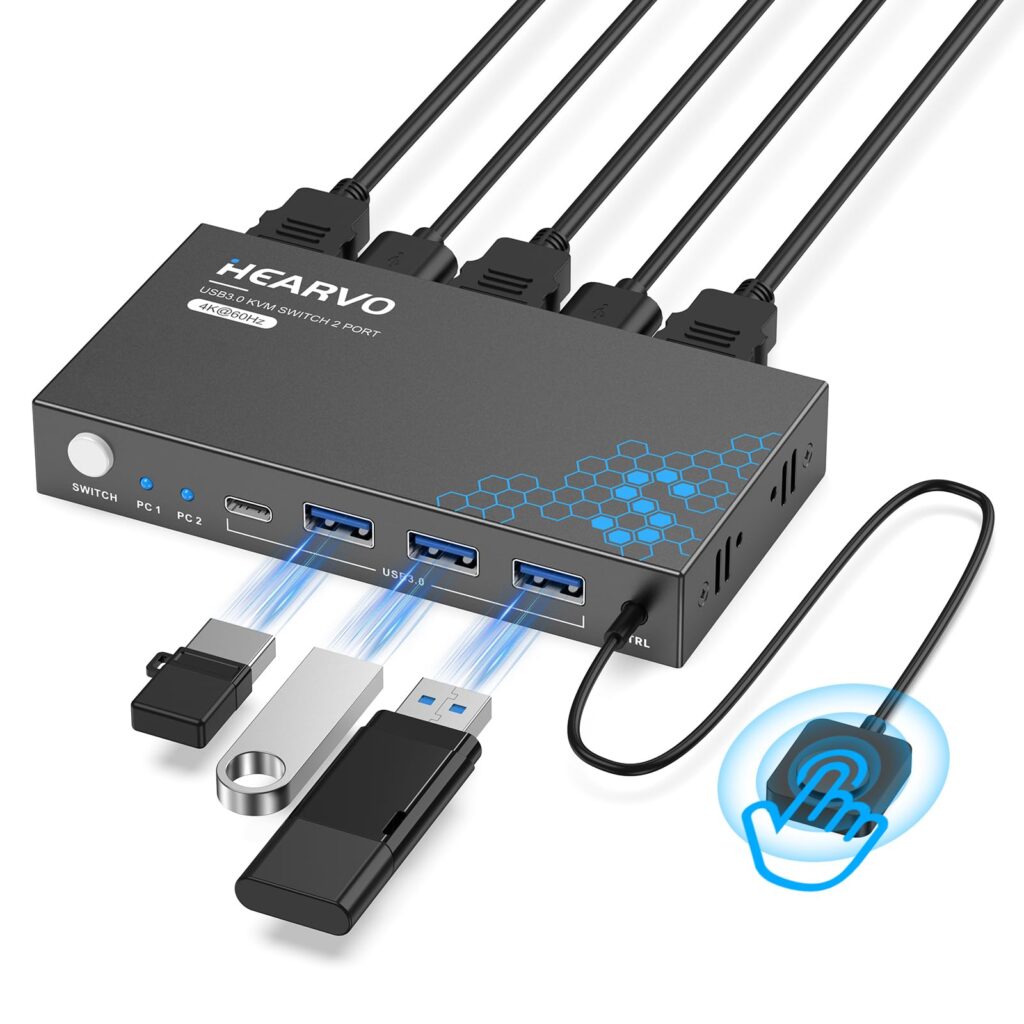

Hearvo USB 3.0 HDMI KVM Switch S7232H Review: Bus-Powered Dual-Host 4K Switching

Mizex is reader-supported. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.
▲ DOCUMENTED QUIRKS
Site Score
4.3 / 5.0
Buyer Guidance: Ideal for dual-system workstations requiring clean 4K60 video switching and shared peripherals, provided single-monitor output and external laptop charging are acceptable trade-offs.
Check Availability & Pricing
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.2 / 5.0
Build Quality & Physical Design (20%) 4.1 / 5.0
Thermal, Power & Acoustics (20%) 4.3 / 5.0
Reliability & Stability (20%) 4.4 / 5.0
Buyer Value (10%) 4.5 / 5.0
Score Rationale
Adaptive EDID handshake stability and plug-and-play dual-host switching anchor the 4.3 composite rating. Engineering & Architecture (4.2) delivers reliable 4K at 60Hz video routing and a four-port 5 Gbps hub, though it omits host Power Delivery and multi-display support. Build quality (4.1) provides a compact, functional chassis complemented by a dedicated desktop extension switcher. Thermal management (4.3) maintains steady passive dissipation under continuous bus power without requiring active cooling. Reliability (4.4) benefits from driverless cross-platform operation and seamless display re-acquisition, while Buyer value (4.5) remains strong for users seeking an accessible dual-PC sharing solution.
Audited today
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
Scores adjust dynamically as verified community ratings accumulate.
✔ Pros
  • Adaptive EDID emulation maintains display handshakes and prevents window repositioning during switching
  • Integrated 4-port 5 Gbps USB hub supporting both USB-A and USB-C peripherals
  • Dual switching controls via integrated push button and included wired desktop extension remote
  • Bus-powered driverless architecture operating across Windows, macOS, and Linux without an external AC brick
✖ Cons
  • Single-monitor output only, lacking dual-display workstation support
  • Lacks integrated USB-C Power Delivery (PD) pass-through charging for host laptops

Overview

Routing dual-host HDMI signals and high-speed peripheral data across a shared desktop environment, the Hearvo S7232H integrates HDMI 2.0 video routing with a 5 Gbps four-port USB hub. At the architectural level, the unit deploys adaptive EDID emulation across its dual HDMI input channels, preserving persistent display resolution profiles and handshake parameters when switching between connected systems. This emulation mitigates desktop re-enumeration delays and prevents open application windows from collapsing during input toggles. Operating entirely from host USB bus power, the device eliminates the clutter of dedicated external power supplies while regulating voltage across internal switching controllers and connected low-power peripherals.

Physical integration emphasizes flexible desk placement, offering dual operational control pathways via a top-mounted chassis push button and an external wired remote switch. The peripheral hub provides both USB-A and USB-C ports operating up to 5 Gbps, allowing simultaneous connection of input devices, storage drives, and desktop peripherals across Windows, macOS, and Linux hosts without supplemental driver installation. The chassis relies on passive convective dissipation to manage heat from internal video multiplexers during continuous 4K 60Hz transmission. While the hardware intentionally foregoes multi-monitor routing and laptop USB-C Power Delivery charging, its solid-state topology delivers dependable two-PC switching within single-display workspaces.

Technical Specifications

Brand Hearvo
Model USB 3.0 HDMI KVM Switch S7232H
Model Number S7232H
Host Computer Capacity 2 Systems
Display Output Channels 1x HDMI
Video Input Channels 2x HDMI
Maximum Resolution & Refresh 4K (3840x2160) @ 60Hz
Supported Video Modes 4K@60Hz, 4K@30Hz, 2K, 1080p, 3D
EDID Emulation Adaptive EDID Handshake Support
USB Hub Configuration 4x USB 3.0 (USB-A and USB-C)
USB Transfer Bandwidth 5 Gbps
Switching Interface Chassis Push Button, Wired Desktop Remote
Power Configuration Host USB Bus-Powered
Driver Requirements Driverless Plug-and-Play
Platform Support Windows, macOS, Linux
📋
