- True 1.0 unity power factor delivers a full 3,000 W active capacity matching its 3,000 VA rating
- Pre-installed NETWORK-M3 Gigabit management card with UL 2900-1 and IEC 62443-4-2 cybersecurity certifications
- Supports hitless remote firmware flashing without dropping connected load power
- ABM+ advanced battery charging technology extends cell operational lifespan by up to 50%
- Line-interactive topology exhibits a brief transfer switching time compared to continuous online double-conversion designs
- Requires a dedicated high-amperage 30A branch circuit for full 120V 3,000 VA operation
Overview
Engineered around a true 1.0 unity power factor architecture, the Eaton 5P Gen2 5P3000RTNG2 supplies a full 3,000 W of active output to match its 3,000 VA threshold, eliminating the conventional power derating penalties typical of legacy 120V line-interactive systems. The unit utilizes an automatic voltage regulation topology delivering clean, pure sine wave power while smoothing utility sags and surges without unnecessarily draining the internal battery array. Downstream loads connect through a robust receptacle layout consisting of a twist-lock NEMA L5-30R alongside six NEMA 5-15/20R outlets, divided into two distinct controllable load segments that facilitate prioritized load shedding during extended power outages.

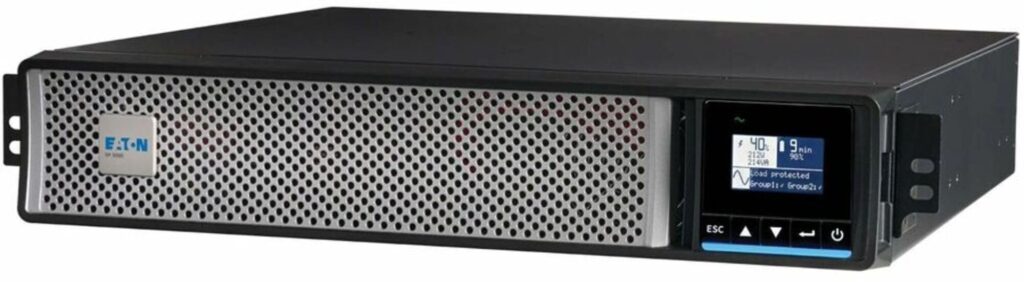

Built into a heavy-gauge steel 2U convertible enclosure designed for both rackmount rails and standalone tower orientations, the chassis provides accessible front-panel servicing for its hot-swappable, field-replaceable battery pack. Line-interactive operation minimizes internal heat generation compared to double-conversion topologies during normal line conditions, relying on managed fan cooling to expel thermal buildup across internal inductors and power switching circuits during voltage regulation or battery inverter operation. Battery health is governed by Eaton’s ABM+ charging algorithm, which utilizes sophisticated multi-stage charging cycles to counter float-charge plate corrosion and prolong operational cell longevity by up to 50%.
Network telemetry and administration are anchored by the factory-installed NETWORK-M3 Gigabit card, independently verified against UL 2900-1 and IEC 62443-4-2 cybersecurity standards. This network architecture provides isolated enterprise management over standard Gigabit Ethernet without exposing edge deployments to unauthenticated control vectors. Crucially, the system architecture supports hitless remote firmware updates, enabling IT administrators to push critical controller and network security patches without cutting power or dropping connected loads in mission-critical environments.
Technical Specifications
| Brand | Eaton |
| Model | 5P Gen2 5P3000RTNG2 3000VA Rack/Tower UPS |
| Model Number | 5P3000RTNG2 |
| Form Factor | 2U Rack/Tower |
| Topology | Line-interactive |
| Power Rating (VA) | 3000 VA |
| Power Rating (Watts) | 3000 W |
| Power Factor | 1.0 (Unity) |
| Input Voltage | 120V AC |
| Input Phase | Single-phase |
| Output Waveform | Pure sine wave |
| Output Receptacles | 1x NEMA L5-30R, 6x NEMA 5-15/20R |
| Load Segments | 2 managed outlet groups (four 5-15/20R outlets) |
| Voltage Regulation | Automatic Voltage Regulation (AVR) |
| Network Management Card | Pre-installed NETWORK-M3 Gigabit Network Management Card |
| Cybersecurity Compliance | UL 2900-1, IEC 62443-4-2 |
| Communication Ports | Ethernet 10/100/1000 (RJ45), USB, RS-232 |
| Battery Management | ABM+ (Advanced Battery Management) |
| Battery Serviceability | Hot-swappable, field-replaceable |
| Power Cord Length | 10 ft (3.05 m) |
Primary Sources & Audited Citations
Recommended Alternatives in Power Stations & UPS
At a Glance
How reliable is the Eaton 5P Gen2 5P3000RTNG2 3000VA Rack/Tower UPS Review: Unity Power Meets Hardened Security according to Mizex audits?
Ideal for edge IT deployments and server racks requiring true 3,000 W capacity, cybersecurity-certified remote monitoring, and hitless firmware maintenance.
What are the known quirks or drawbacks of the Eaton 5P Gen2 5P3000RTNG2 3000VA Rack/Tower UPS Review: Unity Power Meets Hardened Security?
Our reliability audit identified the following documented caveats:
- Line-interactive topology exhibits a brief transfer switching time compared to continuous online double-conversion designs
- Requires a dedicated high-amperage 30A branch circuit for full 120V 3,000 VA operation
What are the key engineering highlights of the Eaton 5P Gen2 5P3000RTNG2 3000VA Rack/Tower UPS Review: Unity Power Meets Hardened Security?
The top strengths recorded in our evaluation include:
- True 1.0 unity power factor delivers a full 3,000 W active capacity matching its 3,000 VA rating
- Pre-installed NETWORK-M3 Gigabit management card with UL 2900-1 and IEC 62443-4-2 cybersecurity certifications
- Supports hitless remote firmware flashing without dropping connected load power
- ABM+ advanced battery charging technology extends cell operational lifespan by up to 50%
