- True unity power factor (1.0 PF) delivering the full 1440 W output on standard 15 A utility feeds
- ABM+ cyclic charging algorithm extends battery service life up to 50% with predictive health analytics
- Hot-swappable front-accessible battery cartridge allows zero-downtime maintenance
- Comprehensive remote management slot compatible with cybersecurity-certified Network-M2 and Network-M3 cards
- No support for External Battery Modules (EBMs) to extend runtime beyond internal pack capacity
- Active cooling fan ramps sound levels above baseline <35 dBA during inverter discharge and high thermal loads
Overview
Drawing power right up to the absolute operational ceiling of a standard 120 V 15 A branch circuit, unity power factor (1.0 PF) topology anchors the electrical architecture of this 2U convertible power system. By matching 1440 VA directly with 1440 W of usable active power, the internal line-interactive inverter eliminates the derating typical of legacy 0.7 or 0.8 PF supplies, delivering full headroom to power-hungry modern server power supplies with active power factor correction. Automatic voltage regulation (AVR) continuously monitors utility line fluctuations across an input window of 89 V to 151 V, stepping voltage via buck and boost taps without engaging battery reserves, while a pure sine wave inverter switches over within a typical 10 ms window during blackout events. Power distribution across the rear panel divides eight NEMA 5-15R receptacles between primary outlets and two independently switched load segments, enabling load-shedding policies and remote power cycling of unresponsive network gear.

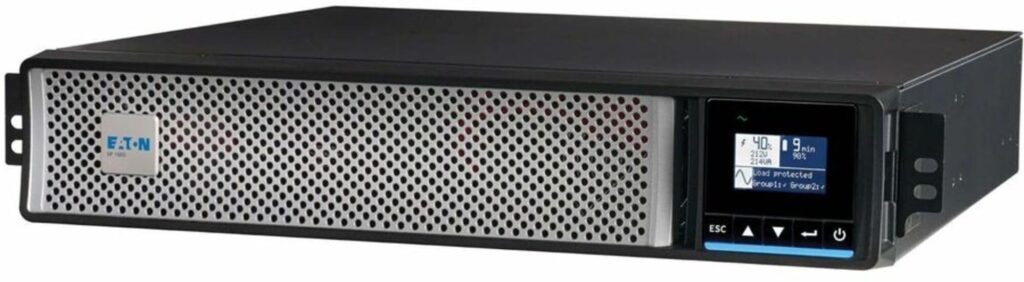

Encased in a rigid cold-rolled steel chassis measuring 3.37 x 17.24 x 17.64 in (85.5 x 438 x 448 mm) and weighing 50.7 lbs (23.0 kg), the enclosure is engineered for either standard four-post rack installation via an included sliding rail kit or freestanding vertical orientation with included tower pedestals. The front fascia integrates an intuitive graphical LCD that reports real-time load percentages, utility line quality, and operational status without requiring network tethering. Behind the front bezel lies a hot-swappable battery compartment housing four 12 V 9 Ah sealed lead-acid cells in a unified cartridge, permitting seamless live pack replacement without dropping connected loads. Thermal dissipation is managed through front-to-rear directed airflow paired with an internal variable-speed fan; operating within 32°F to 104°F (0°C to 40°C), the unit holds overall line efficiency at 98% during normal AC operation, restricting acoustic noise to under 35 dBA at one meter under nominal loads before ramping during active inverter discharge.
Battery chemistry preservation relies on the proprietary ABM+ algorithmic charging cycle, which implements a three-stage charging technique followed by periodic rest intervals to curb grid-induced plate corrosion, extending overall cell longevity by up to 50% compared to traditional float charging. Predictive maintenance analytics monitor thermal metrics and charge histories to forecast replacement dates well before catastrophic cell dry-out occurs. Network management expansion is handled via an integrated mini-slot compatible with Gigabit Network-M2 and Network-M3 cards compliant with UL 2900-1 and IEC 62443-4-2 cybersecurity standards. While scaling runtime via external battery enclosures is unsupported—a boundary reserved for larger modular platforms—the unit delivers approximately 15 minutes of reserve runtime at half load (720 W) and 5 minutes at full 1440 W capacity, backed by a comprehensive three-year warranty spanning both internal electronics and battery modules.
Technical Specifications
| Brand | Eaton |
| Model | 5P Gen2 5P1500RTG2 1440VA Rack/Tower UPS |
| Topology | Line-Interactive (Pure Sine Wave) |
| Power Rating | 1440 VA / 1440 W (Unity Power Factor 1.0) |
| Input Nominal Voltage | 120 V AC (Range: 89 V – 151 V AC) |
| Input Connection | NEMA 5-15P (10.0 ft / 3.05 m cord) |
| Output Receptacles | 8 x NEMA 5-15R (2 switched outlet groups + primary) |
| Form Factor | 2U Rackmount / Tower convertible |
| Dimensions (H X W X D) | 3.37 x 17.24 x 17.64 in (85.5 x 438 x 448 mm) |
| Weight | 50.7 lbs (23.0 kg) |
| Efficiency | Up to 98% in AC normal mode |
| Transfer Time | 10 ms typical |
| Battery Type | User-replaceable, hot-swappable sealed lead-acid (4 x 12V 9Ah VRLA) |
| Battery Management | Eaton ABM+ 3-stage charging with predictive analytics |
| Half Load Runtime (720 W) | ~15 minutes |
| Full Load Runtime (1440 W) | ~5 minutes |
| Acoustic Noise | <35 dBA at 1 m (typical load) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Relative Humidity | 20% to 90% non-condensing |
| Communication Ports | USB Type-B, RS-232 Serial, Mini-Slot for Network Card (Network-M2 / Network-M3) |
| Warranty | 3-year limited warranty (electronics and batteries) |
Recommended Alternatives in Power Stations & UPS
At a Glance
How reliable is the Eaton 5P Gen2 5P1500RTG2 1440VA Rack/Tower UPS Review: Unity Power Density Edge Architecture according to Mizex audits?
An ideal choice for IT professionals and homelab builders requiring maximum 1440 W wattage on a 15 A circuit with enterprise-grade remote monitoring, provided external battery pack expansion is not required.
What are the known quirks or drawbacks of the Eaton 5P Gen2 5P1500RTG2 1440VA Rack/Tower UPS Review: Unity Power Density Edge Architecture?
Our reliability audit identified the following documented caveats:
- No support for External Battery Modules (EBMs) to extend runtime beyond internal pack capacity
- Active cooling fan ramps sound levels above baseline <35 dBA during inverter discharge and high thermal loads
What are the key engineering highlights of the Eaton 5P Gen2 5P1500RTG2 1440VA Rack/Tower UPS Review: Unity Power Density Edge Architecture?
The top strengths recorded in our evaluation include:
- True unity power factor (1.0 PF) delivering the full 1440 W output on standard 15 A utility feeds
- ABM+ cyclic charging algorithm extends battery service life up to 50% with predictive health analytics
- Hot-swappable front-accessible battery cartridge allows zero-downtime maintenance
- Comprehensive remote management slot compatible with cybersecurity-certified Network-M2 and Network-M3 cards
