- Full unity power factor delivering 1440 W output matched to 1440 VA capacity
- Pre-installed NETWORK-M3 network management card for out-of-the-box remote administration
- Line-interactive topology with Automatic Voltage Regulation to mitigate voltage fluctuations
- Versatile 2U rackmount or tower form factor featuring 8 NEMA 5-15R receptacles
- Extended 9-hour recharge cycle required to achieve full battery capacity after deep discharge
Overview
Operating with a true unity power factor across a 1440 VA and 1440 W electrical envelope, line-interactive power delivery safeguards mission-critical IT infrastructure without derating active wattage against apparent power. The architecture integrates Automatic Voltage Regulation to compensate for sags and surges on the 120 V nominal input rail, correcting fluctuating utility conditions without depleting the internal battery string. Out-of-band management overhead is resolved directly out of the box via the factory-installed NETWORK-M3 network card, facilitating encrypted remote telemetry, firmware governance, and automated graceful shutdown sequencing over standard enterprise networks.

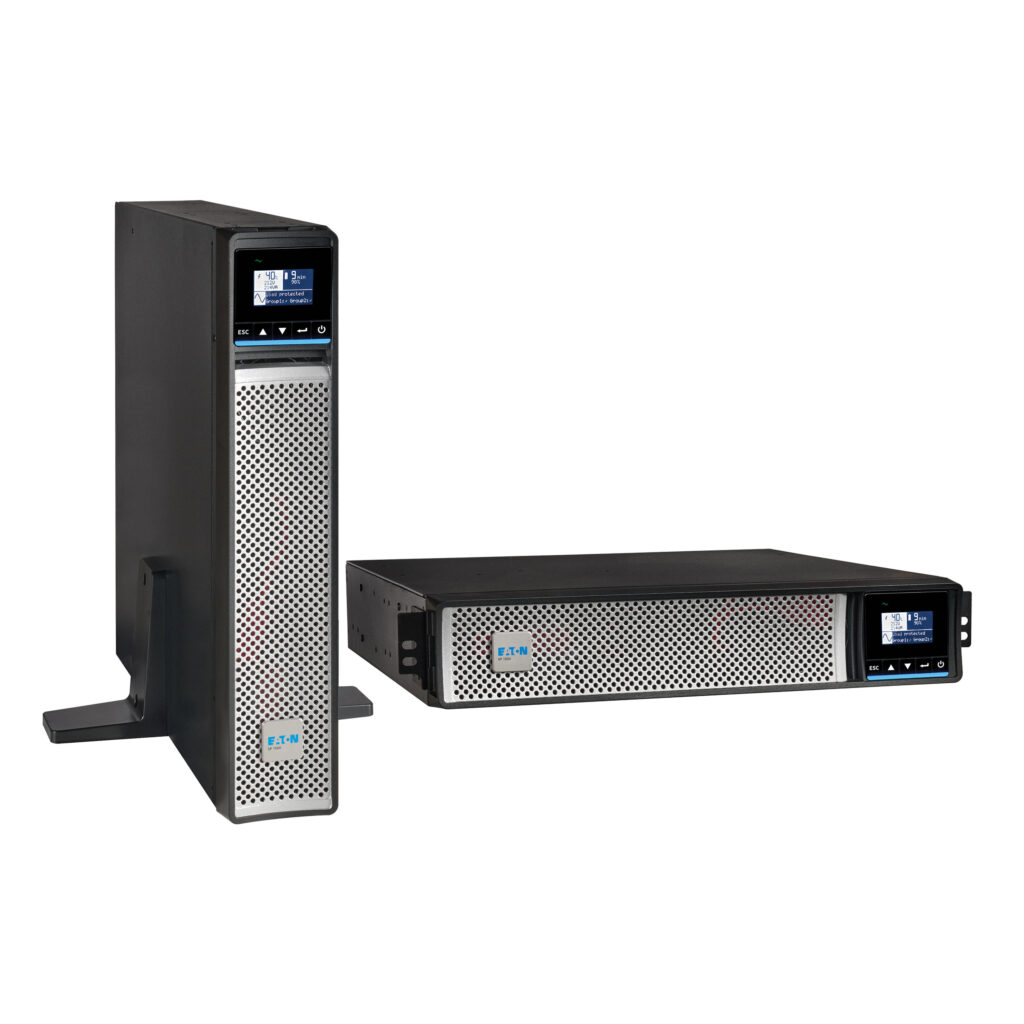

Constructed within a convertible 2U rackmount and tower chassis, the physical layout arranges eight standard NEMA 5-15R receptacles across the rear panel to distribute conditioned power to edge servers and switching equipment. The rigid metal chassis is engineered to handle standard four-post rack loading as well as standalone vertical orientations, maintaining physical stability and structural isolation for internal transformer assemblies and high-current busbars. Thermal management relies on directed internal airflow channels to shed heat generated during continuous buck and boost voltage regulation cycles, preserving component longevity and battery health across prolonged operational spans.
In practical deployment, the system balances dense electrical protection with straightforward integration into existing equipment racks. While the 9-hour recharge time represents an extended recovery cycle following deep discharge scenarios, the consolidation of unity output capacity with pre-installed enterprise network management delivers dependable, continuous uptime for distributed edge nodes and network closets.
Technical Specifications
| Model | Eaton 5P Gen2 5P1500RTNG2 |
| Topology | Line-Interactive |
| Power Capacity (VA) | 1440 VA |
| Power Capacity (Watts) | 1440 W |
| Power Factor | 1.0 (Unity) |
| Nominal Input Voltage | 120 V |
| Form Factor | 2U Rackmount / Tower |
| Output Receptacles | 8 x NEMA 5-15R |
| Voltage Regulation | Automatic Voltage Regulation (AVR) |
| Recharge Time | 9 hours |
| Network Management | Pre-installed NETWORK-M3 card |
Recommended Alternatives in Power Stations & UPS
At a Glance
How reliable is the Eaton 5P Gen2 5P1500RTNG2 Review: True Unity Factor Edge Protection according to Mizex audits?
An exceptional 2U line-interactive power protection choice for edge server racks requiring full unity power factor and integrated remote management out of the box.
What are the known quirks or drawbacks of the Eaton 5P Gen2 5P1500RTNG2 Review: True Unity Factor Edge Protection?
Our reliability audit identified the following documented caveats:
- Extended 9-hour recharge cycle required to achieve full battery capacity after deep discharge
What are the key engineering highlights of the Eaton 5P Gen2 5P1500RTNG2 Review: True Unity Factor Edge Protection?
The top strengths recorded in our evaluation include:
- Full unity power factor delivering 1440 W output matched to 1440 VA capacity
- Pre-installed NETWORK-M3 network management card for out-of-the-box remote administration
- Line-interactive topology with Automatic Voltage Regulation to mitigate voltage fluctuations
- Versatile 2U rackmount or tower form factor featuring 8 NEMA 5-15R receptacles
