Overview

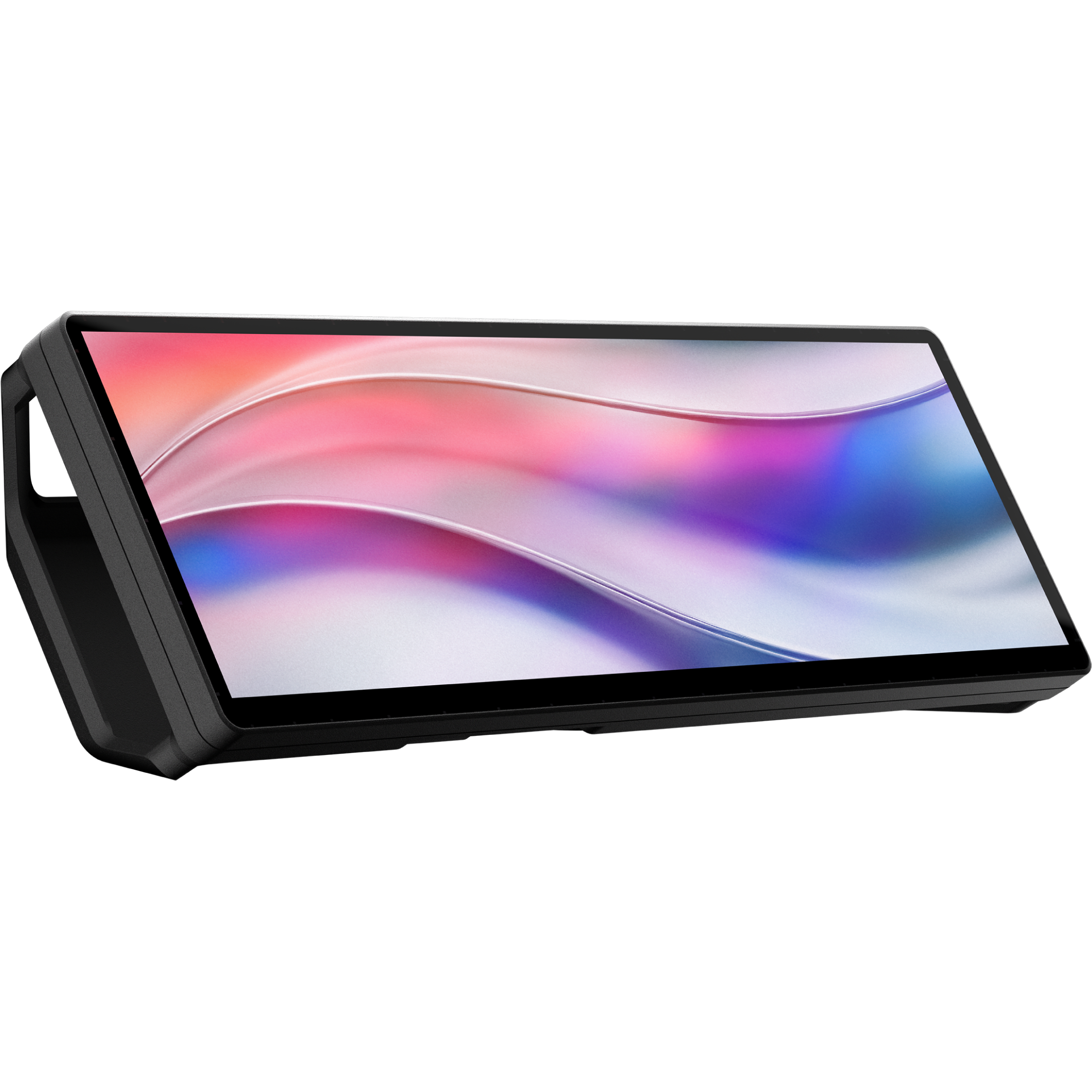

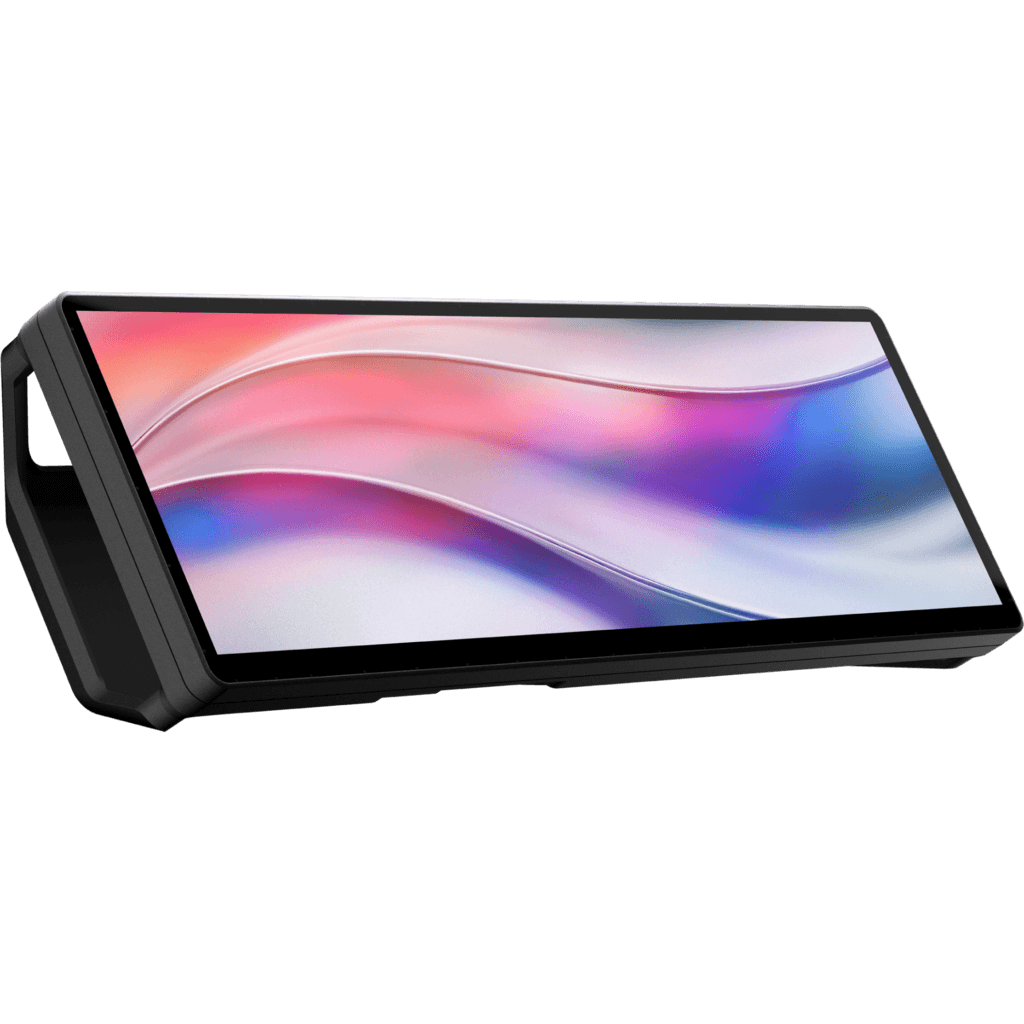

The Corsair XENEON Edge is an ultra-wide secondary touchscreen display engineered specifically for system telemetry, productivity dashboards, and streaming control. Measuring 372 by 120 by 20 mm, the unit integrates a 14.5-inch AHVA panel operating at a 2560×720 native resolution in an expansive 32:9 aspect ratio. With a sharp pixel density of 183.4 PPI and a maximum brightness of 350 cd/m², it presents hardware monitoring readouts, chat streams, and virtual Elgato Stream Deck button matrices with high graphical fidelity. Interface engineering focuses on low-friction deployment, utilizing a USB Type-C port supporting DisplayPort Alternate Mode for single-cable display and bus-powered operation, while retaining a dedicated HDMI port for broad video source compatibility.
Constructed within a slim, low-profile enclosure, the physical design is tailored for flexible workstation placement, incorporating direct mounting compatibility with standard 360 mm PC chassis fan brackets alongside an included desktop stand. Operating completely passively without internal cooling fans, the display delivers zero-decibel acoustic performance and maintains stable thermal dissipation under constant daily use. Practical operational trade-offs include a glossy screen finish that is sensitive to ambient light reflections, the omission of a standard VESA mounting pattern, and a refresh rate limited to 60 Hz. Despite these constraints, its responsive 5-point capacitive multi-touch interface and streamlined software ecosystem deliver a dependable, purpose-built telemetry experience.
Technical Specifications
| Brand | Corsair |
| Model | XENEON Edge |
| Screen Size | 14.5 inches |
| Native Resolution | 2560x720 |
| Aspect Ratio | 32:9 |
| Pixel Density | 183.4 PPI |
| Panel Technology | AHVA (8-bit) |
| Refresh Rate | 60 Hz |
| Touchscreen | 5-point capacitive multi-touch |
| Screen Coating | Glossy |
| Peak Brightness | 350 cd/m² |
| Viewing Angles | 178° horizontal / 178° vertical |
| Video Inputs | 1x USB-C (DisplayPort Alt Mode), 1x HDMI |
| Power Delivery | USB-C |
| Mounting Compatibility | Standard 360 mm PC case fan mounts, desktop stand |
| Dimensions | 372 x 120 x 20 mm |
| Bundled Cables | 1x USB Type-C to USB Type-C (1.8 m / 6 ft) |
| Software Integration | Virtual Elgato Stream Deck support |
- Ultra-wide 32:9 aspect ratio optimized for system telemetry, widgets, and live stream monitoring
- Single-cable operation with USB-C DisplayPort Alt Mode carrying both video and bus power
- Versatile mounting options accommodating standard 360 mm case fan brackets and desktop stand placement
- Responsive 5-point capacitive multi-touch interface with virtual Elgato Stream Deck support
- Refresh rate is capped at standard 60 Hz
- Glossy screen coating is prone to reflections in high ambient lighting
- Lacks standard VESA mounting pattern support
Primary Sources & Audited Citations
Recommended Alternatives in Monitors & Displays
At a Glance
How reliable is the Corsair XENEON Edge according to Mizex audits?
Ideal for power users, streamers, and enthusiasts seeking an ultra-wide companion display for chassis or desk telemetry, provided 60 Hz output and glossy reflections match your workspace lighting.
What are the known quirks or drawbacks of the Corsair XENEON Edge?
Our reliability audit identified the following documented caveats:
- Refresh rate is capped at standard 60 Hz
- Glossy screen coating is prone to reflections in high ambient lighting
- Lacks standard VESA mounting pattern support
What are the key engineering highlights of the Corsair XENEON Edge?
The top strengths recorded in our evaluation include:
- Ultra-wide 32:9 aspect ratio optimized for system telemetry, widgets, and live stream monitoring
- Single-cable operation with USB-C DisplayPort Alt Mode carrying both video and bus power
- Versatile mounting options accommodating standard 360 mm case fan brackets and desktop stand placement
- Responsive 5-point capacitive multi-touch interface with virtual Elgato Stream Deck support
