- Simultaneous 120V and 240V pure sine wave dual-voltage output from a single unit
- Substantial 3,840W continuous output with 7,680W surge capacity and 12kW grid bypass
- Extensive modular battery scalability ranging from 2,764.8 Wh up to 58 kWh
- Automotive-grade LiFePO4 battery chemistry engineered for an estimated 17-year operational lifespan
- Substantial base chassis weight of 85 lbs (38.56 kg) makes manual relocation difficult without a cart
- Requires proprietary external hubs (Hub A1, Hub D1) for specialized high-draw RV DC connections
Overview

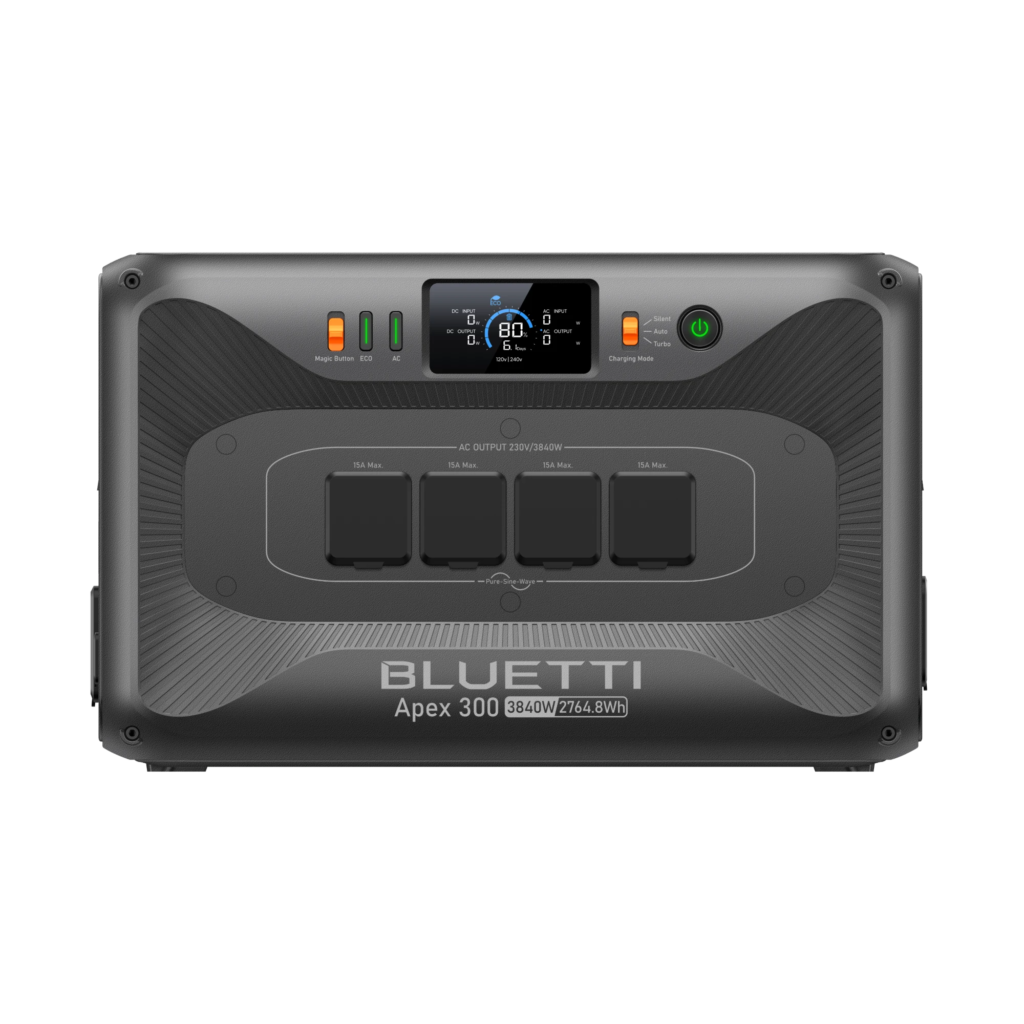

Simultaneous 120V and 240V split-phase power delivery forms the architectural core of the BLUETTI Apex 300, eliminating the traditional requirement of linking paired units to run heavy household circuits. The system is centered on a pure sine wave inverter delivering 3,840W of continuous output and a 7,680W surge rating, reinforced by an integrated 12kW grid bypass. This bypass topology allows high-draw residential equipment, such as central air conditioning systems and electric vehicle chargers, to operate straight from grid utility power without placing continuous conversion strain on the internal inverter, switching over within 0 ms to 20 ms during sudden blackouts. Onboard charging pathways accommodate up to 3,840W of AC grid input alongside 2,400W of native dual-MPPT solar input, expandable to 19.2 kW when configured with external solar management modules.
Physical construction relies on automotive-grade Lithium Iron Phosphate (LiFePO4) cell chemistry providing a base capacity of 2,764.8 Wh, specified for an estimated 17-year operational lifespan. The combination of dense cell packaging and heavy split-phase transformer circuitry results in a substantial chassis weight of 85 lbs (38.56 kg). While reinforced side grips assist with stationary positioning, the mass makes solo relocation difficult without an external rolling cart. Firmware logic incorporates Black Start protection to recover fully depleted packs exclusively from solar input, alongside weather-alert automation that initiates preemptive charging cycles ahead of severe storms.
In practical application, the system operates as a modular home energy hub scaling from its 2,764.8 Wh baseline up to 58 kWh via external B300, B300K, B300S, and B500K battery packs. However, accessing high-amperage direct RV DC connections or specialized multi-port distribution requires separate accessory modules like the Hub A1 and Hub D1 rather than integrated chassis sockets. For critical load backup and residential power security, the Apex 300 delivers robust high-capacity infrastructure that balances stationary energy resilience against notable physical heft.
Technical Specifications
| Brand | BLUETTI |
| Model | Apex 300 |
| Battery Capacity | 2,764.8 Wh (expandable up to 58 kWh) |
| Battery Chemistry | Automotive-grade LiFePO4 (LFP) |
| Inverter Type | Pure Sine Wave |
| Continuous AC Output | 3,840 W |
| Surge AC Output | 7,680 W |
| Output Voltage | 120V / 240V Simultaneous Dual-Voltage |
| AC Input Power | Up to 3,840 W (via 30A / 50A fast-charging cable) |
| Solar Input (Built In) | 2,400 W (Dual 1,200 W MPPT inputs) |
| Max Solar Input (Expanded) | Up to 19.2 kW (via SolarX 4K) |
| Bypass Capacity | 12 kW Grid Bypass |
| UPS Switchover Time | 0 ms - 20 ms |
| AC Outlets | 6 x AC ports |
| Expansion Battery Support | BLUETTI B300K, B300, B300S, B500K |
| Weight | 85 lbs (38.56 kg) |
| Emergency Features | Black Start capability, Extreme Weather Alert auto-charging |
Primary Sources & Audited Citations
Recommended Alternatives in Power Stations & UPS
At a Glance
How reliable is the BLUETTI Apex 300 Review: Split-Phase Inverter Meets Grid Bypass according to Mizex audits?
An exceptional choice for homeowners seeking simultaneous 120V/240V backup with high-capacity grid bypass, provided single-chassis transport weight and accessory-dependent RV DC ports are acceptable trade-offs.
What are the known quirks or drawbacks of the BLUETTI Apex 300 Review: Split-Phase Inverter Meets Grid Bypass?
Our reliability audit identified the following documented caveats:
- Substantial base chassis weight of 85 lbs (38.56 kg) makes manual relocation difficult without a cart
- Requires proprietary external hubs (Hub A1, Hub D1) for specialized high-draw RV DC connections
What are the key engineering highlights of the BLUETTI Apex 300 Review: Split-Phase Inverter Meets Grid Bypass?
The top strengths recorded in our evaluation include:
- Simultaneous 120V and 240V pure sine wave dual-voltage output from a single unit
- Substantial 3,840W continuous output with 7,680W surge capacity and 12kW grid bypass
- Extensive modular battery scalability ranging from 2,764.8 Wh up to 58 kWh
- Automotive-grade LiFePO4 battery chemistry engineered for an estimated 17-year operational lifespan
