- Reinforced Steel PCIe 5.0 x16 slot provides robust structural support for heavy modern GPUs
- Dual-channel DDR5 memory support up to 7200+ MHz (OC) with Intel XMP and AMD EXPO compatibility
- Realtek 2.5 Gbps Ethernet controller delivers high-speed wired network connectivity
- 7+1+1 power phase design equipped with dedicated aluminum heatsink cooling
- Storage expansion is restricted to a single Hyper M.2 PCIe Gen4 x4 slot
- Two DDR5 DIMM slots limit maximum memory capacity compared to four-slot motherboards
Overview

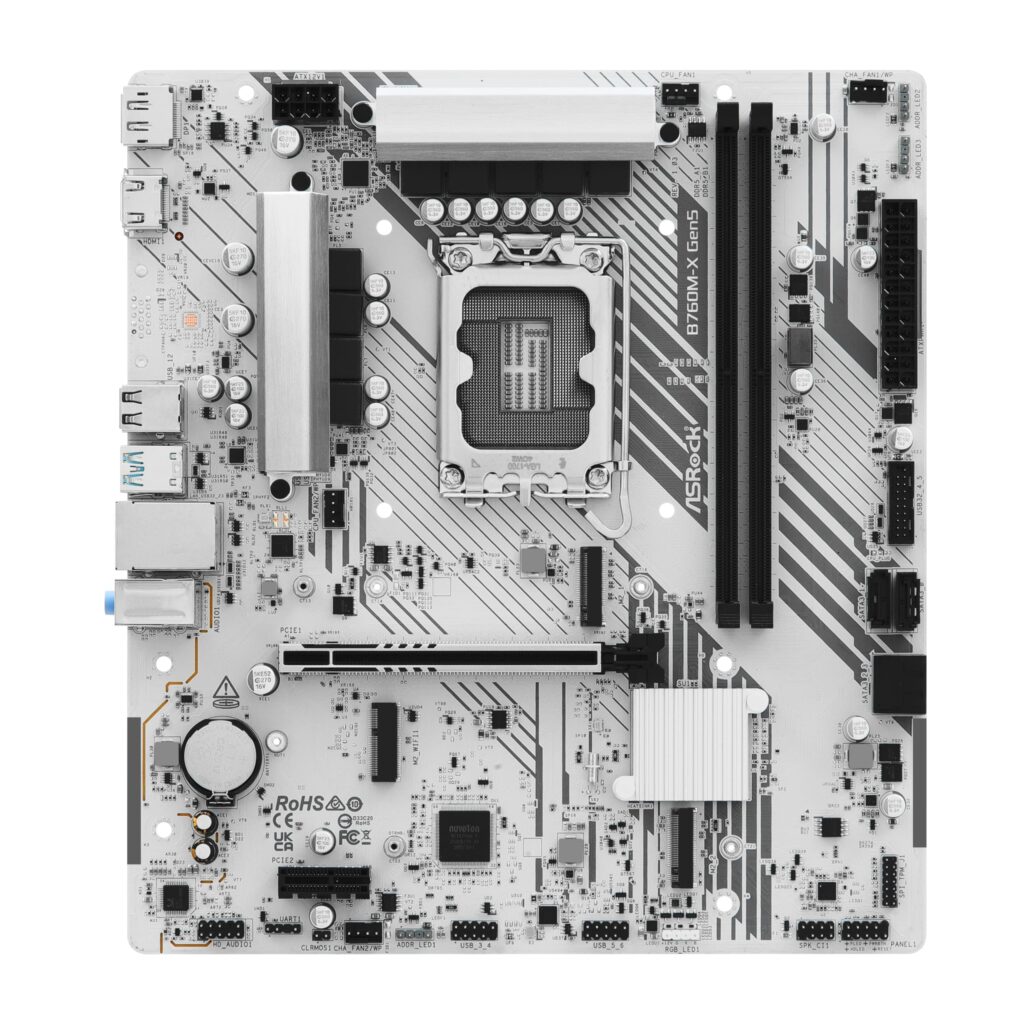

Bridging high-speed PCIe 5.0 graphics capabilities with cost-conscious desktop assembly, ASRock prioritizes core bandwidth essentials over superfluous aesthetic trimmings. The B760M-X Gen5 centers around Intel’s LGA 1700 socket, providing broad compatibility across 12th, 13th, and 14th Gen Intel Core processors in a space-saving Micro ATX footprint. A standout engineering choice in this price category is the primary PCIe 5.0 x16 expansion slot, which features a steel-reinforced frame to prevent PCB flex and physical slot damage when anchoring modern, multi-slot graphics cards. Memory is handled through two DDR5 DIMM slots supporting dual-channel configurations up to 7200+ MHz through Intel XMP and AMD EXPO profiles. While restricting memory to two slots caps total expansion capacity compared to four-slot boards, the simplified two-DIMM trace layout reduces electrical crosstalk and enhances high-frequency memory stability.
Power delivery relies on a 7+1+1 phase configuration paired with an extruded aluminum heatsink over the primary MOSFETs, balancing electrical stability with passive heat dissipation. This layout comfortably manages mainstream desktop tasks, everyday gaming, and 65W to 125W processors, though users pairing the board with high-wattage unlocked chips will need consistent chassis airflow to prevent elevated VRM temperatures during sustained all-core rendering. Storage and connectivity are tailored around compact efficiency, featuring a single Hyper M.2 slot operating over PCIe Gen4 x4 bandwidth. The absence of a secondary M.2 connector means builders relying on multiple high-speed NVMe drives will need to plan their storage layout around SATA drives or single high-capacity solid-state media. Wired networking is handled by a Realtek 2.5 Gbps Ethernet controller, offering a notable speed upgrade over standard Gigabit interfaces for local network transfers and high-speed internet connections.
In day-to-day operation, the platform delivers dependable baseline stability backed by mature Intel B760 chipset firmware and a straightforward board layout. Header placements and clearance around the CPU socket accommodate standard tower air coolers and all-in-one liquid cooling brackets without crowding adjacent memory modules. The overall execution makes clear, intentional trade-offs: expansive storage arrays and multi-channel add-in cards are traded for a lean, functional board that brings PCIe 5.0 and DDR5 into reachable budget territory. For everyday builders seeking a clean, capable foundation for mid-tier Intel gaming rigs or compact home office workstations, the board provides a reliable, forward-compatible balance of core hardware capabilities.
Technical Specifications
| Brand | ASRock |
| Model | B760M-X Gen5 |
| Form Factor | Micro ATX |
| CPU Socket | LGA 1700 |
| Chipset | Intel B760 |
| Supported Processors | 12th, 13th, and 14th Gen Intel Core processors |
| Power Delivery | 7+1+1 Phase VRM with Aluminum Heatsink |
| Memory Type | DDR5 |
| Memory Slots | 2x DIMM (Dual Channel) |
| Max Memory Frequency | 7200+ MHz (OC) |
| Memory Profiles | Intel XMP, AMD EXPO |
| Expansion Slots | 1x PCIe 5.0 x16 (Reinforced Steel Slot) |
| Storage Interface | 1x Hyper M.2 (PCIe Gen4 x4) |
| Networking | Realtek 2.5 GbE LAN |
| Part Number | 90-MXBTR0-A0UAYZ |
