- True PCIe 5.0 x16 graphics slot and dedicated PCIe 5.0 x4 Blazing M.2 socket on a value-focused micro-ATX board
- Stable 8+2+1 Dr.MOS power phase design with high-density 8+4-pin CPU auxiliary power connectors
- High-capacity 512Mb (64MB) BIOS ROM paired with external rear-panel BIOS Flashback button for CPU-less updates
- Triple M.2 NVMe storage slots, four SATA3 connectors, and 2.5 GbE networking
- Secondary PCIe 4.0 x4 slot is disabled whenever the third M.2 socket (M2_3) is populated
- Zero bundled M.2 heatsinks, requiring aftermarket or drive-integrated cooling for high-performance Gen5/Gen4 SSDs
- Basic Realtek ALC897 audio codec and unshielded stamped steel I/O shield reflect cost-saving trade-offs
Overview

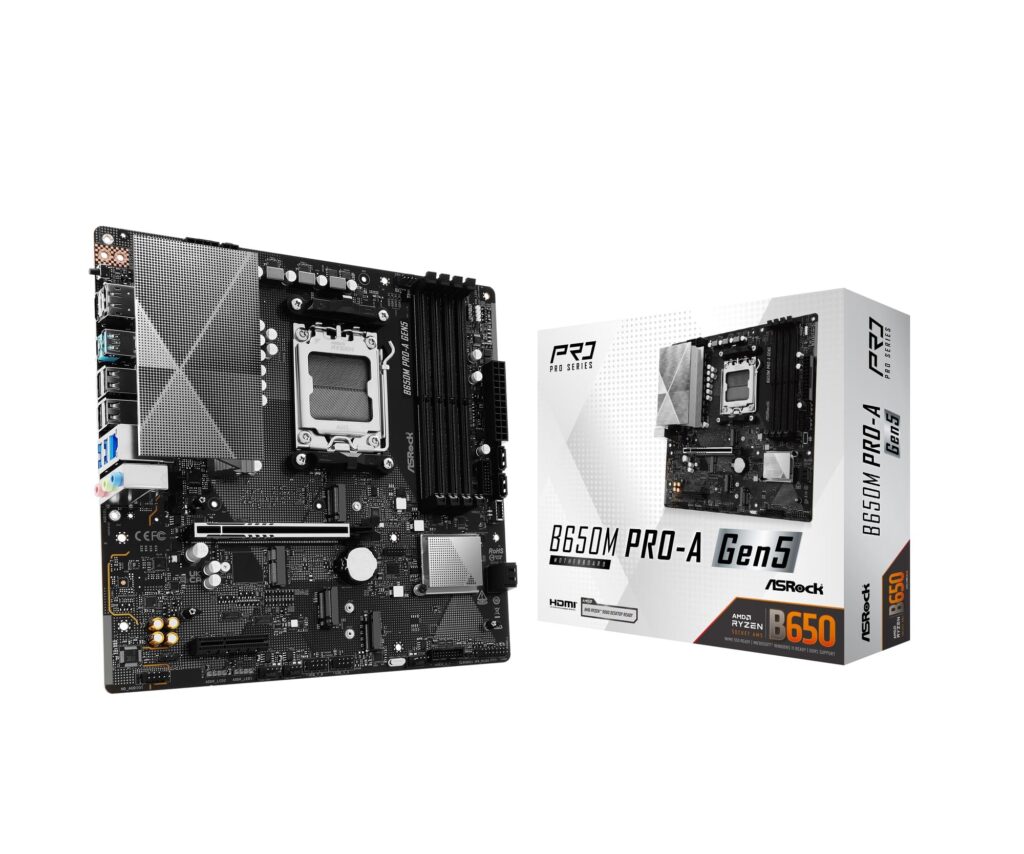

Routing high-speed PCIe 5.0 signaling across both the primary graphics slot and the main M.2 NVMe socket distinguishes ASRock’s B650M Pro-A Gen5 within the mainstream AMD AM5 ecosystem. Centered on the AMD B650 chipset, the motherboard implements an 8+2+1 power phase design utilizing integrated Dr.MOS power stages for VCore, SOC, and MISC voltage regulation. These integrated stages replace discrete high- and low-side MOSFET arrays, minimizing switching losses and delivering consistent current to AMD Ryzen 7000, 8000, and 9000 series processors. Power intake is stabilized through an 8-pin and auxiliary 4-pin 12V high-density connector pairing to reduce pin resistance during heavy compute loads. Four DDR5 DIMM slots accommodate dual-channel memory configurations up to 256 GB, supporting AMD EXPO and Intel XMP overclocking profiles up to 8000+ MHz.
Fabricated on a standard 9.6 x 9.6 in (24.4 x 24.4 cm) Micro-ATX form factor, physical board construction combines purposeful structural reinforcements with clear layout compromises. The primary PCIe 5.0 x16 expansion slot features a reinforced steel casing anchored by extra PCB solder points and 15μ gold contact plating, preventing slot strain and signal loss when supporting weighty modern graphics cards. Thermal dissipation for the primary VCore stages relies on an extruded, anodized aluminum heatsink, complemented by five 4-pin fan headers featuring auto-sensing PWM and DC control, including high-power 3A (36W) output for liquid cooling pumps. Crucially, the board includes no integrated M.2 heatsinks across any of its three slots, requiring users to rely on drive-supplied or aftermarket heat spreaders to prevent thermal throttling on high-speed Gen5 and Gen4 NVMe SSDs. Furthermore, lane-sharing architecture dictates that populating the third M.2 socket disables the secondary physical PCIe 4.0 x4 expansion slot entirely.
Rear and internal connectivity focuses on high-bandwidth essentials while executing standard budget-tier trade-offs. Networking is powered by a Realtek RTL8125BG controller supplying 2.5 Gbps Ethernet, supported by an unpopulated M.2 Key E slot and pre-routed rear chassis bracket cutouts for standalone Wi-Fi card upgrades. The rear I/O provides 10 Gbps USB 3.2 Gen2 in both Type-A and Type-C configurations, alongside front-panel USB 3.2 Gen1 headers. Audio output relies on an entry-level Realtek ALC897 7.1-channel codec, delivering serviceable desktop audio but lacking isolated component shielding or dedicated headphone amplification. System firmware is housed on an expansive 512Mb (64MB) AMI UEFI ROM, featuring an external rear-panel BIOS Flashback button that allows effortless microcode updating and processor onboarding without needing a CPU, memory, or graphics card installed.
Technical Specifications
| Brand | ASRock |
| Model | B650M Pro-A Gen5 |
| Form Factor | Micro-ATX, 9.6 x 9.6 in (24.4 x 24.4 cm) |
| Cpu Socket | AMD Socket AM5 |
| Chipset | AMD B650 |
| Supported Processors | AMD Ryzen 9000, 8000, and 7000 Series |
| Power Design | 8+2+1 Phase Dr.MOS (VCore+SOC+MISC) |
| Power Connectors | 1x 24-pin ATX, 1x 8-pin 12V Hi-Density, 1x 4-pin 12V Hi-Density |
| Memory Slots | 4x DDR5 DIMM (Dual Channel) |
| Memory Capacity Max | 256 GB |
| Memory Speed Support | Up to DDR5-8000+ (OC), AMD EXPO and Intel XMP |
| Pcie Expansion Slots | 1x PCIe 5.0 x16 (PCIE1, Reinforced Steel), 1x PCIe 4.0 x4 (PCIE2, disabled if M2_3 is populated) |
| M2 Storage Slots | 1x Blazing M.2 PCIe Gen5x4 (M2_1), 1x Hyper M.2 PCIe Gen4x4 (M2_2), 1x Hyper M.2 PCIe Gen4x4 (M2_3) |
| Sata Ports | 4x SATA3 6.0 Gb/s |
| Raid Support | RAID 0, RAID 1, RAID 10 (SATA and NVMe M.2) |
| Ethernet Controller | Realtek RTL8125BG Dragon 2.5 GbE (10/100/1000/2500 Mb/s) |
| Wireless Expansion | 1x M.2 Key E (Type 2230) for PCIe Wi-Fi/BT module |
| Audio Codec | Realtek ALC897 7.1 CH HD Audio |
| Display Outputs | 1x HDMI 2.1 (up to 4K 120Hz), 1x DisplayPort 1.4 with DSC (up to 4K 120Hz) |
| Rear Usb Ports | 1x USB 3.2 Gen2 Type-C (10 Gb/s), 1x USB 3.2 Gen2 Type-A (10 Gb/s), 2x USB 3.2 Gen1 Type-A (5 Gb/s), 4x USB 2.0 |
| Front Usb Headers | 1x USB 3.2 Gen1 Type-C, 2x USB 3.2 Gen1 headers (4 ports), 2x USB 2.0 headers (4 ports) |
| Fan Pump Headers | 2x 4-pin CPU Fan (CPU_FAN1 up to 12W, CPU_FAN2 up to 36W), 3x 4-pin Chassis/Pump Fan (up to 36W) |
| Rgb Headers | 1x 12V RGB Header (36W), 3x 5V Addressable ARGB Headers (15W) |
| Bios | 512Mb (64MB) AMI UEFI Legal BIOS with hardware BIOS Flashback Button |
| Bundled Accessories | 1x I/O Shield, 2x SATA Data Cables, 1x Screw for M.2 Socket |
Recommended Alternatives in Motherboards
At a Glance
How reliable is the ASRock B650M Pro-A Gen5 Review: Budget AM5 Meets Gen5 Bandwidth according to Mizex audits?
A cost-effective pathway to PCIe 5.0 GPU and SSD throughput on the AMD AM5 platform, ideal for builders with their own M.2 heatsinks who can accept entry-level onboard audio and lane sharing between secondary expansion slots.
What are the known quirks or drawbacks of the ASRock B650M Pro-A Gen5 Review: Budget AM5 Meets Gen5 Bandwidth?
Our reliability audit identified the following documented caveats:
- Secondary PCIe 4.0 x4 slot is disabled whenever the third M.2 socket (M2_3) is populated
- Zero bundled M.2 heatsinks, requiring aftermarket or drive-integrated cooling for high-performance Gen5/Gen4 SSDs
- Basic Realtek ALC897 audio codec and unshielded stamped steel I/O shield reflect cost-saving trade-offs
What are the key engineering highlights of the ASRock B650M Pro-A Gen5 Review: Budget AM5 Meets Gen5 Bandwidth?
The top strengths recorded in our evaluation include:
- True PCIe 5.0 x16 graphics slot and dedicated PCIe 5.0 x4 Blazing M.2 socket on a value-focused micro-ATX board
- Stable 8+2+1 Dr.MOS power phase design with high-density 8+4-pin CPU auxiliary power connectors
- High-capacity 512Mb (64MB) BIOS ROM paired with external rear-panel BIOS Flashback button for CPU-less updates
- Triple M.2 NVMe storage slots, four SATA3 connectors, and 2.5 GbE networking
