8BitDo Ultimate 3C+ Wireless Controller Review: TMR Precision Meets Dual-Mode Triggers

Mizex is reader-supported. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.
● HIGHLY RATED
Site Score
4.5 / 5.0
Buyer Guidance: An outstanding pick for PC and Android gamers seeking drift-free TMR stick accuracy, 1000 Hz wireless polling, and switchable triggers without paying the premium for bundled docks or audio jacks.
Check Availability & Pricing
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.6 / 5.0
Build Quality & Physical Design (20%) 4.3 / 5.0
Thermal, Power & Acoustics (20%) 4.2 / 5.0
Reliability & Stability (20%) 4.7 / 5.0
Buyer Value (10%) 4.7 / 5.0
Score Rationale
Exceptional input fidelity driven by 12-bit TMR joysticks and dual-mode Hall Effect triggers establishes a class-leading baseline, earning a 4.6 in Engineering & Architecture with true 1000 Hz polling across both wired and 2.4 GHz wireless interfaces. Build quality rates at 4.3, bolstered by integrated mechanical lockouts on the rear paddles, soft-stop silicone dampening rings, and a dedicated magnetic receiver bay, though tempered slightly by the absence of modular faceplates. Acoustic and thermal profile achieves a 4.2 through efficient passive power draw from the 500 mAh cell—yielding up to 32 hours of runtime—and well-isolated dual-zone haptics that eliminate housing resonance. Reliability scores 4.7 due to contactless magnetic sensing across both primary sticks and triggers, effectively mitigating analog potentiometer wear and stick drift. Finally, buyer value lands at 4.7, delivering enthusiast-tier internal processing and remappable inputs despite omitting an analog audio jack and bundled charging dock.
Audited today
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
Scores adjust dynamically as verified community ratings accumulate.
✔ Pros
  • Contactless 12-bit TMR joysticks with adjustable tension rings and soft-stop silicone dampeners eliminate stick drift
  • Native 1000 Hz polling rate supported over both 2.4 GHz wireless and wired USB-C connections
  • Switchable triggers seamlessly alternate between smooth linear Hall Effect travel and rapid tactile microswitches
  • Dedicated mechanical lockout switches prevent accidental activation of the dual rear paddles
✖ Cons
  • Lacks an integrated 3.5 mm analog audio headset jack
  • Omits the bundled charging dock and swappable faceplates present on higher-tier Ultimate 3 models

Overview

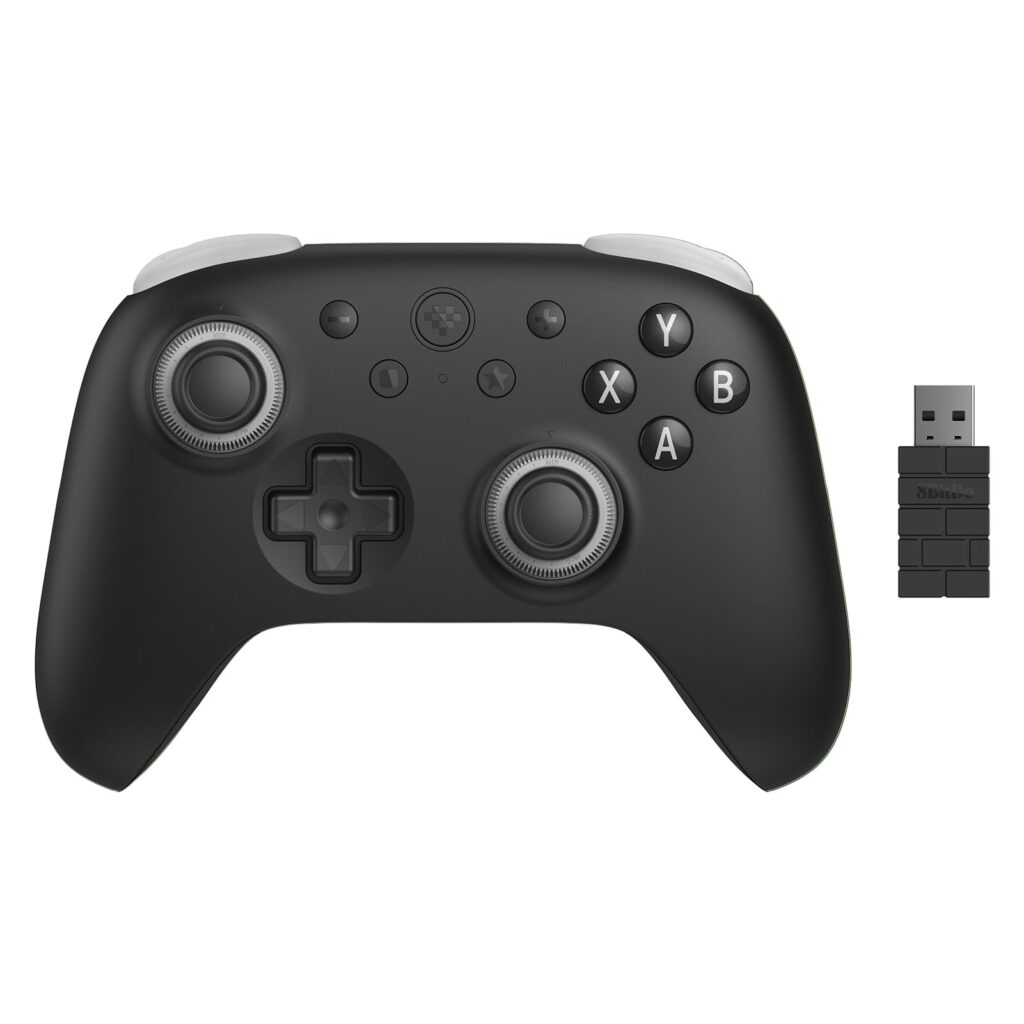

A dedicated 216 MHz processing core paired with 12-bit analog-to-digital converters anchors the input pipeline, routing high-density telemetry from tunneling magnetoresistive (TMR) joystick modules across both wired USB-C and low-latency 2.4 GHz wireless links at a verified 1000 Hz polling rate. This architectural foundation enables adjustable-tension Dual Force Rings with soft-stop silicone dampening, effectively eliminating contact-brush friction and mechanical drift. Below the primary thumbsticks, switchable dual-mode triggers allow users to toggle mechanically between linear Hall Effect travel for progressive throttle control and low-travel tactile microswitches for instantaneous actuation in competitive shooters.

Ergonomically, the chassis incorporates extra remappable L4 and R4 shoulder bumpers positioned inboard of the primary triggers, complemented by dual rear paddles that feature physical mechanical sliding lockouts to prevent accidental actuations during intense grip pressure. Haptic feedback is distributed across independent trigger vibration motors synchronized with the primary grip rumble assemblies, maintaining clean acoustic separation without loose housing rattles. A magnetic rear enclosure securely stows the compact 2.4 GHz wireless USB adapter when operating over Bluetooth 5.4 LE or during transit.

Power delivery is managed by an integrated 500 mAh lithium-ion battery, yielding up to 20 hours of continuous runtime over the 1000 Hz 2.4 GHz protocol and extending to 32 hours under Bluetooth 5.4 LE operation with minimal thermal dissipation during USB-C recharging. While the platform omits an integrated 3.5 mm analog audio pass-through and foregoes the bundled magnetic charging cradle found on higher-tier Ultimate 3 configurations, the core electro-mechanical execution delivers uncompromising input precision and drift-free component longevity across Windows and Android environments.

Technical Specifications

Brand 8BitDo
Model Ultimate 3C+ Wireless Controller
Connectivity 2.4 GHz wireless, Bluetooth 5.4 LE, USB-C wired
Polling Rate 1000 Hz (2.4 GHz and USB-C wired)
Minimum Latency 1 ms (8Speed 2.4 GHz)
Wireless Operating Range 32.8 ft (10 m)
Joystick Technology Tunneling Magnetoresistive (TMR) with Dual Force Ring tension adjustment
Joystick Resolution 12-bit ADC
Auxiliary Processor 216 MHz high-performance MCU
Trigger Mechanism Switchable linear Hall Effect and tactile microswitch
Additional Controls L4/R4 shoulder bumpers, dual lockable back paddles
Haptic Feedback Synchronized grip rumble and independent trigger vibration motors
Layout Asymmetric Xbox layout (ABXY)
Battery Capacity 500 mAh lithium-ion
Battery Life Up to 20 hours (2.4 GHz), up to 32 hours (Bluetooth 5.4 LE)
Platform Compatibility Windows 10 (1903)+, Android 13.0+
Adapter Storage Integrated rear magnetic slot
Available Finishes Frost White, Stealth Black, Avocado Green
📋
