Overview

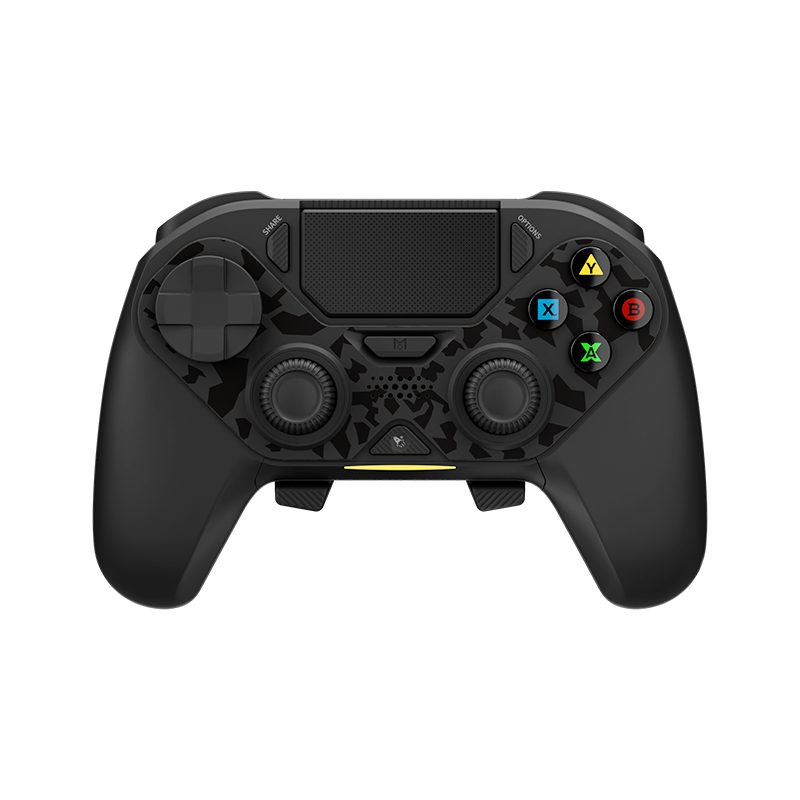

Tunnel magnetoresistance (TMR) sensing anchors the core input architecture of the AceGamer Hypershadow D4, utilizing JS13Pro magnetic induction joysticks to eliminate the mechanical wiper friction and subsequent drift common to traditional carbon-film potentiometers. The peripheral complements its solid-state analog stick assembly with physical two-stage trigger travel locks, allowing players to toggle mechanically between full-throw analog linear resistance and rapid micro-switch actuation. Customization is expanded on the rear shell through four dedicated macro buttons (M1 through M4) capable of recording and executing sequences up to 24 discrete inputs, flanked by a 6-axis motion sensor and a clickable dual-point capacitive touchpad designed for responsive gesture navigation.
Multi-platform protocol switching is handled through a three-position hardware toggle switch on the rear chassis, accommodating PS4, 2.4 GHz wireless via the included receiver dongle, and Bluetooth configurations alongside direct USB-C wired communication. While platform compatibility extends broadly across PC, Nintendo Switch, Switch 2, iOS, and Android systems, the integrated 3.5mm TRRS headset jack and internal chassis speaker are firmware-restricted to operational functionality only when connected to a PS4 host. Tactile immersion is driven by a quad-motor configuration comprising dual eccentric rotating mass motors within the primary grips and dual independent haptic actuators situated directly behind the trigger mechanisms.
Power management centers on an integrated 1000mAh lithium rechargeable cell with an active current draw spanning 80mA to 160mA during normal play. Under intensive, continuous quad-motor vibration loads, runtime scales down to approximately 7 hours, whereas intermittent or vibration-light gameplay extends endurance up to 20 hours. Complete recharge cycles draw approximately 590mA over a DC 5V rail via USB-C, completing in roughly 3 hours. When idle, the controller enters an ultra-low power standby drawing no more than 20 microamperes, preventing parasitic depletion during prolonged storage while maintaining passive, stable thermal dispersion across the polymer shell.
Technical Specifications
| Brand | AceGamer |
| Model | Hypershadow D4 Wireless Controller |
| Platform Compatibility | PS4, PC, Nintendo Switch, Switch 2, iOS, Android |
| Connectivity | 2.4 GHz wireless, Bluetooth, USB-C wired |
| Hardware Mode Switch | Rear 3-way toggle (PS4, Bluetooth, 2.4G) |
| Joystick Technology | JS13Pro TMR magnetic induction |
| Motion Sensor | 6-axis gyroscope and accelerometer |
| Touchpad | Clickable dual-point capacitive touchpad |
| Audio Interface | 3.5mm TRRS jack and integrated speaker (PS4 mode only) |
| Haptic Motors | Dual grip vibration motors and dual trigger haptic motors |
| Macro Inputs | 4 rear buttons (M1-M4, up to 24 inputs per macro) |
| Trigger Travel System | Two-stage physical adjustment (Micro-switch and Linear modes) |
| Battery Capacity | 1000 mAh |
| Battery Runtime | 7–20 hours |
| Charging Time | Approx. 3 hours |
| Input Voltage | DC 5V |
| Operating Current | 80–160 mA |
| Standby Current | ≤20 µA |
| Charging Current | Approx. 590 mA |
| Wireless Operating Range | Within 10 m |
- JS13Pro TMR magnetic induction joysticks eliminate physical wiper contact wear and stick drift
- Two-stage hardware trigger switches toggle instantly between rapid micro-switch actuation and linear travel
- Quad-motor haptic system combines dual grip vibration with dual trigger-specific haptic actuators
- Comprehensive platform compatibility spanning PS4, PC, Nintendo Switch, Switch 2, iOS, and Android
- Integrated 3.5mm audio jack and built-in speaker function exclusively when connected in PS4 mode
- Battery runtime diminishes significantly to 7 hours under continuous quad-motor vibration and heavy feature usage
Primary Sources & Audited Citations
Recommended Alternatives in Controllers & Gamepads
Turtle Beach Rematch Wireless Gaming Controller – Minecraft Dungeons II
At a Glance
How reliable is the AceGamer Hypershadow D4 Wireless Controller according to Mizex audits?
An exceptionally capable multi-platform controller featuring drift-free TMR joysticks and dual-mode trigger stops, provided you do not rely on 3.5mm headset audio outside of PS4 mode.
What are the known quirks or drawbacks of the AceGamer Hypershadow D4 Wireless Controller?
Our reliability audit identified the following documented caveats:
- Integrated 3.5mm audio jack and built-in speaker function exclusively when connected in PS4 mode
- Battery runtime diminishes significantly to 7 hours under continuous quad-motor vibration and heavy feature usage
What are the key engineering highlights of the AceGamer Hypershadow D4 Wireless Controller?
The top strengths recorded in our evaluation include:
- JS13Pro TMR magnetic induction joysticks eliminate physical wiper contact wear and stick drift
- Two-stage hardware trigger switches toggle instantly between rapid micro-switch actuation and linear travel
- Quad-motor haptic system combines dual grip vibration with dual trigger-specific haptic actuators
- Comprehensive platform compatibility spanning PS4, PC, Nintendo Switch, Switch 2, iOS, and Android
