Side-by-Side Comparison
TRENDnet TPE-3284WSB 28-Port 2.5G PoE++ Web Smart Switch vs ELSYS AMPLIMAX 5G Ultra
Standardized 5-pillar engineering audit, thermal telemetry, verified longevity metrics, and complete technical specification diff.
● HIGHLY RATED
Composite Score:
4.4
/ 5.0
A high-density 2.5GbE switch delivering 740W of robust 802.3bt power with quad 10G SFP+ uplinks and automated PoE watchdog recovery.
● HIGHLY RATED
Composite Score:
4.4
/ 5.0
High-performance outdoor 5G CPE integrating Qualcomm SDx62 silicon, high-gain 4x4 MIMO directional reception, and durable IP65 weather-resistant housing.
⚖️
Mizex Comparative Audit Verdict
Both the TRENDnet TPE-3284WSB 28-Port 2.5G PoE++ Web Smart Switch and ELSYS AMPLIMAX 5G Ultra share an identical composite score of 4.4. Choice between them depends primarily on specific port requirements, physical dimensions, or pricing.
5-Pillar Engineering Telemetry
Detailed comparison across standardized normalized 1.0 – 5.0 engineering pillars.

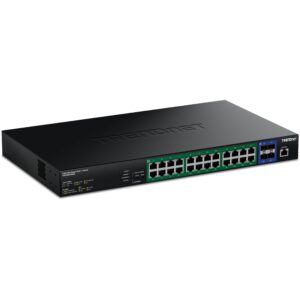

TRENDnet TPE-3284WSB 28-Port 2.5G PoE++ Web Smart Switch
ELSYS AMPLIMAX 5G Ultra
Engineering & Architecture
(30%)
Tie
4.5
4.5
Build Quality & Materials
(20%)
Tie
4.4
4.4
Thermal, Power & Acoustics
(20%)
Winner: ELSYS AMPLIMAX 5G Ultra (+0.2)
4.1
4.3
Real-World Reliability
(20%)
Winner: TRENDnet TPE-3284WSB 28-Port 2.5G PoE++ Web Smart Switch (+0.1)
4.6
4.5
Buyer Value & Upgrades
(10%)
Winner: TRENDnet TPE-3284WSB 28-Port 2.5G PoE++ Web Smart Switch (+0.2)
4.5
4.3
TRENDnet TPE-3284WSB 28-Port 2.5G PoE++ Web Smart Switch: Strengths & Caveats
✔ Advantages
- High 740 W aggregate PoE budget delivering up to 95 W per port via IEEE 802.3bt PoE++
- Non-blocking 200 Gbps switching capacity with quad 10G SFP+ uplink cages
- Hardware resiliency features including Perpetual PoE, Fast PoE, and automated PoE Alive Check watchdog
- High reliability rating with verified 530,000-hour MTBF at 25°C in a rigid 1U metal chassis
✖ Documented Caveats
- Active smart cooling fans generate noticeable acoustic output unsuitable for quiet open-office environments
- Maximum power dissipation under full 740 W PoE load requires dedicated rack ventilation
ELSYS AMPLIMAX 5G Ultra: Strengths & Caveats
✔ Advantages
- Qualcomm Snapdragon SDx62 modem paired with a wideband 600–4000 MHz 4x4 MIMO directional antenna array
- IP65-rated weather-resistant housing built for demanding outdoor environments
- Robust cellular redundancy supporting two physical SIM cards alongside an eSIM
- Integrated carrier blind search function accelerates accurate base station alignment
✖ Documented Caveats
- Directional antenna configuration requires careful physical line-of-sight aiming toward target cell towers
- Exterior mounting necessitates dedicated mast hardware and outdoor-rated cabling
Technical Specification Comparison
Side-by-side spec alignment. Rows highlighted with subtle shading denote differing specifications.
| Specification | TRENDnet TPE-3284WSB 28-Port 2.5G PoE++ Web Smart Switch | ELSYS AMPLIMAX 5G Ultra |
|---|---|---|
| Brand DIFF | TRENDnet | ELSYS |
| Model DIFF | TPE-3284WSB 28-Port 2.5G PoE++ Web Smart Switch | AMPLIMAX 5G Ultra |
| Port Configuration DIFF | 24 x 2.5GBASE-T RJ-45, 4 x 10G SFP+ | — |
| PoE Standard DIFF | IEEE 802.3af/at/bt PoE++ (up to 95W per port) | — |
| Total PoE Power Budget DIFF | 740 W | — |
| Switching Capacity DIFF | 200 Gbps | — |
| Forwarding Rate DIFF | 148.91 Mpps (64-byte packets) | — |
| MAC Address Table DIFF | 32K entries | — |
| Packet Buffer DIFF | 2 MB | — |
| Jumbo Frame Support DIFF | Up to 12 KB | — |
| Form Factor DIFF | 1U Rackmount | — |
| Chassis Material DIFF | Galvanized Metal | — |
| Dimensions DIFF | 17.32 x 10.04 x 1.73 in (440 x 250 x 44 mm) | — |
| Weight DIFF | 9.49 lbs (4.31 kg) | — |
| Cooling Type DIFF | Active (Smart variable-speed internal fans) | — |
| Operating Temperature DIFF | 23°F to 122°F (-5°C to 50°C) | — |
| Operating Humidity DIFF | Max 90% non-condensing | — |
| Base Power Consumption (No PoE) DIFF | 57.16 W | — |
| MTBF DIFF | 530,000 hours at 25°C | — |
| Management Interface DIFF | Web Smart, TRENDnet Hive Cloud, SNMP v1/v2c/v3 | — |
| Layer 2+ Features DIFF | 802.1Q VLAN, Voice VLAN, LACP, QoS, IGMP Snooping, 802.1X | — |
| Device Type DIFF | — | Outdoor 5G FWA CPE |
| Chipset DIFF | — | Qualcomm Snapdragon SDx62 |
| Antenna Configuration DIFF | — | 4x4 MIMO High-Gain Directional |
| Frequency Range DIFF | — | 600 MHz – 4000 MHz |
| Peak 5g Download Speed DIFF | — | 2.5 Gbps |
| Peak 4g Download Speed DIFF | — | 1.6 Gbps |
| Sim Interfaces DIFF | — | Dual SIM (2x physical slots) + eSIM |
| Ingress Protection DIFF | — | IP65 Weather-Resistant |
| Cooling Architecture DIFF | — | Passive Fanless Convection |
| Signal Alignment DIFF | — | Integrated Carrier Blind Search |
