- High 740 W aggregate PoE budget delivering up to 95 W per port via IEEE 802.3bt PoE++
- Non-blocking 200 Gbps switching capacity with quad 10G SFP+ uplink cages
- Hardware resiliency features including Perpetual PoE, Fast PoE, and automated PoE Alive Check watchdog
- High reliability rating with verified 530,000-hour MTBF at 25°C in a rigid 1U metal chassis
- Active smart cooling fans generate noticeable acoustic output unsuitable for quiet open-office environments
- Maximum power dissipation under full 740 W PoE load requires dedicated rack ventilation
Overview

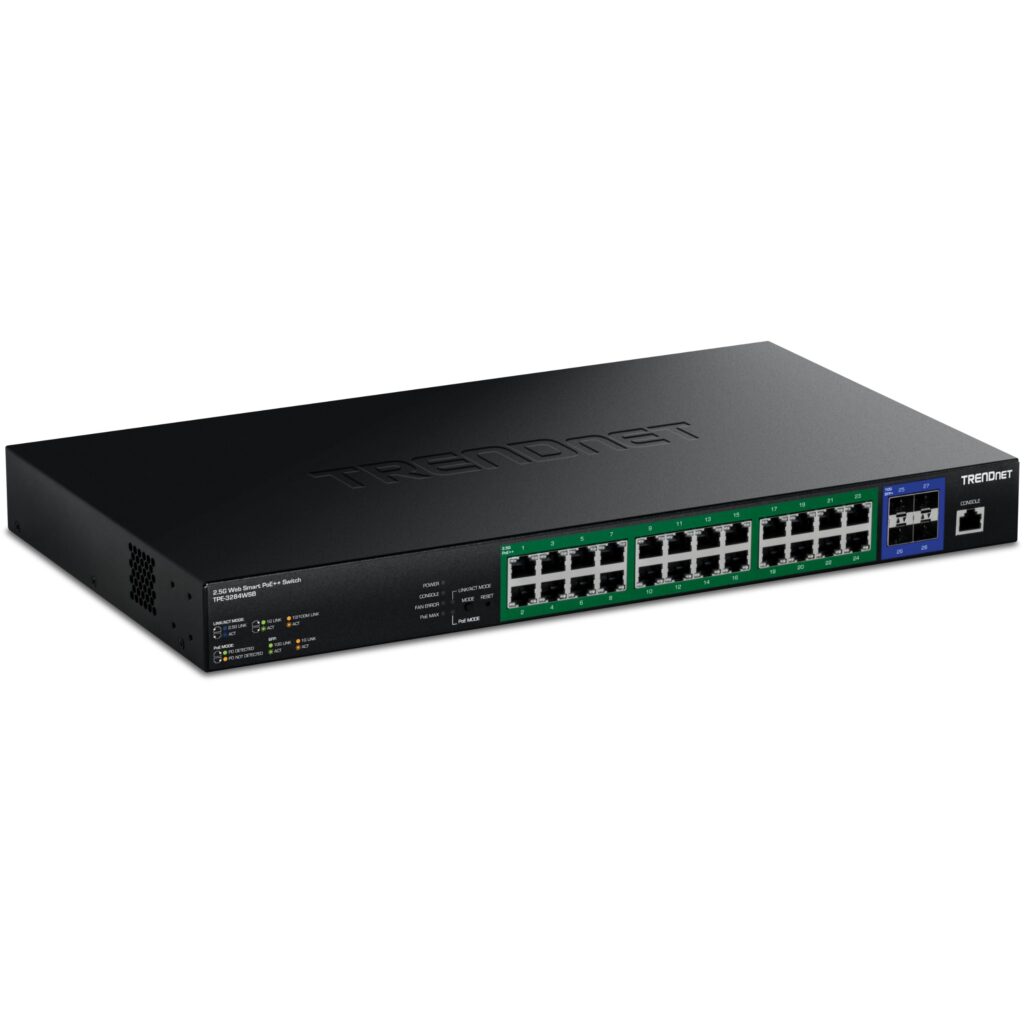

Provisioning 740 W of aggregate power across twenty-four 2.5GBASE-T ports alongside quad 10G SFP+ uplinks anchors this rackmount multi-gigabit platform directly into high-density network backbones. The switching fabric delivers 200 Gbps of non-blocking throughput with a 148.91 Mpps forwarding rate across a 32K MAC address table and 2 MB packet buffer. Supporting IEEE 802.3bt Type 3 and Type 4 PoE++, individual ports deliver up to 95 W to negotiate power-demanding hardware such as high-draw PTZ surveillance cameras, access control terminals, and high-performance Wi-Fi 6/7 access points. Power delivery is reinforced by integrated hardware safeguards, including Fast PoE to energize connected peripherals immediately upon boot, Perpetual PoE to sustain peripheral power during system restarts, and PoE Alive Check to automatically cycle unresponsive endpoint hardware.
Encased in a 1U galvanized metal chassis measuring 17.32 x 10.04 x 1.73 in (440 x 250 x 44 mm) and weighing 9.49 lbs (4.31 kg), the physical structure provides the rigid shielding and grounding required for high-current enterprise deployments. Thermal regulation is managed through an internal active cooling array utilizing smart variable-speed fans, maintaining safe component operation across an environmental window of 23°F to 122°F (-5°C to 50°C). With base power consumption rated at 57.16 W prior to PoE load distribution, the active fan curve dynamically responds to cumulative thermal loads, producing acoustic output that designates the unit specifically for server racks, telecommunication closets, or isolated equipment spaces rather than open-office environments.
Management operates via a comprehensive Web Smart interface alongside integration into the TRENDnet Hive cloud management ecosystem, delivering essential Layer 2+ capabilities such as 802.1Q VLAN, Voice VLAN, LACP link aggregation, QoS, IGMP snooping, and 802.1X port security. Long-term electrical endurance is reinforced by a calculated mean time between failures (MTBF) of 530,000 hours at 25°C. For network architects deploying dense multi-gigabit infrastructure, the integration of four 10G SFP+ cages ensures high-bandwidth uplinks without bottlenecks, establishing a resilient distribution platform that balances high PoE density with automated self-healing power controls.
Technical Specifications
| Brand | TRENDnet |
| Model | TPE-3284WSB 28-Port 2.5G PoE++ Web Smart Switch |
| Port Configuration | 24 x 2.5GBASE-T RJ-45, 4 x 10G SFP+ |
| PoE Standard | IEEE 802.3af/at/bt PoE++ (up to 95W per port) |
| Total PoE Power Budget | 740 W |
| Switching Capacity | 200 Gbps |
| Forwarding Rate | 148.91 Mpps (64-byte packets) |
| MAC Address Table | 32K entries |
| Packet Buffer | 2 MB |
| Jumbo Frame Support | Up to 12 KB |
| Form Factor | 1U Rackmount |
| Chassis Material | Galvanized Metal |
| Dimensions | 17.32 x 10.04 x 1.73 in (440 x 250 x 44 mm) |
| Weight | 9.49 lbs (4.31 kg) |
| Cooling Type | Active (Smart variable-speed internal fans) |
| Operating Temperature | 23°F to 122°F (-5°C to 50°C) |
| Operating Humidity | Max 90% non-condensing |
| Base Power Consumption (No PoE) | 57.16 W |
| MTBF | 530,000 hours at 25°C |
| Management Interface | Web Smart, TRENDnet Hive Cloud, SNMP v1/v2c/v3 |
| Layer 2+ Features | 802.1Q VLAN, Voice VLAN, LACP, QoS, IGMP Snooping, 802.1X |
Recommended Alternatives in Networking & Routers
At a Glance
How reliable is the TRENDnet TPE-3284WSB 28-Port 2.5G PoE++ Web Smart Switch Review: High-Density Multi-Gigabit Power Delivery according to Mizex audits?
Ideal for enterprise access points, PTZ surveillance, and multi-gigabit homelabs requiring high PoE++ wattage and 10G uplinks, provided deployment takes place in a dedicated rack or enclosure to accommodate active cooling.
What are the known quirks or drawbacks of the TRENDnet TPE-3284WSB 28-Port 2.5G PoE++ Web Smart Switch Review: High-Density Multi-Gigabit Power Delivery?
Our reliability audit identified the following documented caveats:
- Active smart cooling fans generate noticeable acoustic output unsuitable for quiet open-office environments
- Maximum power dissipation under full 740 W PoE load requires dedicated rack ventilation
What are the key engineering highlights of the TRENDnet TPE-3284WSB 28-Port 2.5G PoE++ Web Smart Switch Review: High-Density Multi-Gigabit Power Delivery?
The top strengths recorded in our evaluation include:
- High 740 W aggregate PoE budget delivering up to 95 W per port via IEEE 802.3bt PoE++
- Non-blocking 200 Gbps switching capacity with quad 10G SFP+ uplink cages
- Hardware resiliency features including Perpetual PoE, Fast PoE, and automated PoE Alive Check watchdog
- High reliability rating with verified 530,000-hour MTBF at 25°C in a rigid 1U metal chassis
