Side-by-Side Comparison
Raspberry Pi Smart Display Module vs Waveshare ESP32-C5-Touch-LCD-3.5
Standardized 5-pillar engineering audit, thermal telemetry, verified longevity metrics, and complete technical specification diff.
● HIGHLY RATED

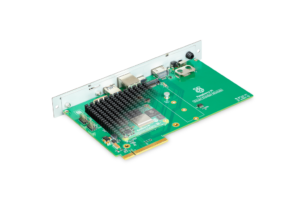

Raspberry Pi Smart Display Module
Composite Score:
4.4
/ 5.0
An exceptionally robust, fanless Intel SDM-L carrier card for the Raspberry Pi Compute Module 5 offering modular M.2 expansion, silent passive cooling, and decade-long enterprise availability.
● HIGHLY RATED
Waveshare ESP32-C5-Touch-LCD-3.5
Composite Score:
4.4
/ 5.0
Versatile ESP32-C5 HMI development platform featuring dual-band Wi-Fi 6, 802.15.4 mesh radio, comprehensive onboard sensors, and dedicated power management.
⚖️
Mizex Comparative Audit Verdict
Both the Raspberry Pi Smart Display Module and Waveshare ESP32-C5-Touch-LCD-3.5 share an identical composite score of 4.4. Choice between them depends primarily on specific port requirements, physical dimensions, or pricing.
5-Pillar Engineering Telemetry
Detailed comparison across standardized normalized 1.0 – 5.0 engineering pillars.
Raspberry Pi Smart Display Module
Waveshare ESP32-C5-Touch-LCD-3.5
Engineering & Architecture
(30%)
Winner: Waveshare ESP32-C5-Touch-LCD-3.5 (+0.1)
4.5
4.6
Build Quality & Materials
(20%)
Winner: Raspberry Pi Smart Display Module (+0.2)
4.3
4.1
Thermal, Power & Acoustics
(20%)
Winner: Raspberry Pi Smart Display Module (+0.1)
4.4
4.3
Real-World Reliability
(20%)
Winner: Raspberry Pi Smart Display Module (+0.2)
4.6
4.4
Buyer Value & Upgrades
(10%)
Winner: Waveshare ESP32-C5-Touch-LCD-3.5 (+0.2)
4.2
4.4
Raspberry Pi Smart Display Module: Strengths & Caveats
✔ Advantages
- Conforms to the Intel SDM-L specification for direct slide-in integration with commercial displays, kiosks, and projectors
- Versatile M.2 M-key slot accommodates 2230 through 2280 form-factor NVMe SSDs or AI acceleration modules
- Completely fanless, silent passive aluminium heatsink design engineered for continuous 24/7 operation
- Long-term industrial deployment commitment with guaranteed production availability through at least January 2036
✖ Documented Caveats
- Onboard USB-C port is strictly limited to CM5 flashing and cannot be used for standard peripheral connectivity
- Requires a host display, projector, or enclosure equipped with an Intel SDM slot for power delivery and internal routing
Waveshare ESP32-C5-Touch-LCD-3.5: Strengths & Caveats
✔ Advantages
- Dual-band 2.4 GHz and 5 GHz Wi-Fi 6 with 802.15.4 Zigbee 3.0 and Thread 1.3 connectivity
- Vibrant 3.5-inch IPS capacitive touchscreen with dedicated hardware display and touch controllers
- Comprehensive onboard sensing suite including 6-axis IMU and SHTC3 temperature/humidity sensor
- Integrated AXP2101 PMU supporting power-path switching and 3.7V lithium battery charging
✖ Documented Caveats
- Camera interface support is restricted to a low-resolution 0.08 MP sensor
- Open devkit form factor requires a separate protective enclosure for field deployment
Technical Specification Comparison
Side-by-side spec alignment. Rows highlighted with subtle shading denote differing specifications.
| Specification | Raspberry Pi Smart Display Module | Waveshare ESP32-C5-Touch-LCD-3.5 |
|---|---|---|
| Brand DIFF | Raspberry Pi | Waveshare |
| Model DIFF | Smart Display Module | Waveshare ESP32-C5-Touch-LCD-3.5 |
| Form Factor DIFF | Intel Smart Display Module Large (SDM-L) | — |
| Host Compatibility DIFF | Raspberry Pi Compute Module 5 (CM5) | — |
| Host Interface DIFF | Intel SDM 96-pin PCIe x8 edge connector | — |
| Edge Connector Signals DIFF | HDMI 2.0, USB 3.0, 2x I2C, SPI, UART | — |
| Video Output DIFF | 1x Full-size HDMI 2.0 port | — |
| Camera Display Interface DIFF | 22-way MIPI DSI/CSI-2 connector | — |
| Storage Expansion DIFF | 1x M.2 M-key PCIe socket (supports 2230, 2242, 2260, and 2280) | MicroSD card slot |
| Networking DIFF | 1x Gigabit Ethernet RJ45 port | — |
| Wireless Support DIFF | Wi-Fi 5 and Bluetooth 5.2 (via Compute Module 5) with U.FL antenna mount | — |
| Usb Ports DIFF | 1x USB 3.0 Type-A port, 1x USB 2.0 Type-C port (programming and flashing only) | — |
| Cooling DIFF | Passive aluminium heatsink (fanless) | — |
| Power Input DIFF | +12V and +3.3V via SDM edge connector | 5V via USB Type-C, 2-pin header for 3.7V Lithium battery |
| Rtc DIFF | CR2032 coin-cell battery socket | — |
| Controls And Indicators DIFF | Boot mode switch, external power button header, LED indicator | — |
| Dimensions DIFF | 193 x 115 x 25 mm | 95.11 x 63.67 x 14.10 mm |
| Weight Standalone DIFF | 146 g | — |
| Weight Assembled DIFF | 225 g | — |
| Production Longevity DIFF | Available until at least January 2036 | — |
| Soc DIFF | — | Espressif Systems ESP32-C5HR8 |
| Wireless Module DIFF | — | ESP32-C5-WROOM-1U-N32R8 |
| Cpu DIFF | — | Single-core 32-bit RISC-V up to 240 MHz with 40 MHz low-power RISC-V core |
| Memory Sram DIFF | — | 384 KB on-chip SRAM |
| Memory Psram DIFF | — | 8 MB PSRAM |
| Storage Flash DIFF | — | 32 MB Flash |
| Storage Rom DIFF | — | 320 KB ROM |
| Display Type DIFF | — | 3.5-inch 262K color IPS capacitive touchscreen |
| Display Resolution DIFF | — | 480 x 320 pixels |
| Display Controller DIFF | — | Sitronix ST7796 (SPI) |
| Touch Controller DIFF | — | FocalTech FT6336 (I2C) |
| Wireless Connectivity DIFF | — | Dual-band (2.4 GHz / 5 GHz) Wi-Fi 6 (802.11ax/b/g/n), Bluetooth 5.0 LE, 802.15.4 (Zigbee 3.0 / Thread 1.3) |
| Antenna Interface DIFF | — | IPEX connector |
| Camera Support DIFF | — | Optional BF3901 camera interface (320 x 240 resolution, 0.08 MP) |
| Audio Subsystem DIFF | — | ES8311 low-power audio codec, NS4150B amplifier, onboard MEMS microphone, 2-pin speaker header |
| Onboard Sensors DIFF | — | QMI8658 6-axis IMU (gyroscope and accelerometer), SHTC3 temperature and humidity sensor |
| Expansion Interfaces DIFF | — | 32-pin 2.54mm pitch header (GPIO, UART, I2C) |
| Power Management DIFF | — | AXP2101 PMU with lithium battery charging support |
| Real Time Clock DIFF | — | PCF85063 RTC |
