Raspberry Pi 5 2GB vs LattePanda Mu Ultra
Standardized 5-pillar engineering audit, thermal telemetry, verified longevity metrics, and complete technical specification diff.

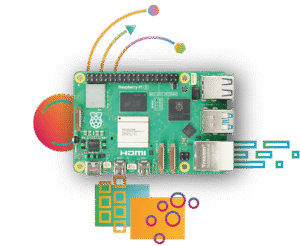

Raspberry Pi 5 2GB
The Raspberry Pi 5 2GB combines major CPU performance gains and refined silicon power efficiency into an accessible, highly reliable single-board computer.
LattePanda Mu Ultra
A high-performance compute module that excels in AI workloads but requires careful attention to power delivery components and external storage integration.
Mizex Comparative Audit Verdict
5-Pillar Engineering Telemetry
Detailed comparison across standardized normalized 1.0 – 5.0 engineering pillars.
Raspberry Pi 5 2GB: Strengths & Caveats
- 2x to 3x CPU performance uplift over the previous generation via modern Arm Cortex-A76 cores
- Refined silicon revision with improved power efficiency and reduced thermal dissipation
- Dual 4Kp60 display capability powered by the upgraded VideoCore VII graphics engine
- Industry-leading long-term firmware and mainline Linux operating system support
- 2GB memory ceiling limits intensive multitasking and heavy containerized workloads
- Requires auxiliary active or passive cooling accessories to avoid thermal throttling under peak compute loads
LattePanda Mu Ultra: Strengths & Caveats
- Up to 115 TOPS AI performance for edge AI workloads
- Ultra-low idle power consumption of 2.5W suitable for battery deployment
- High memory bandwidth reducing LLM latency
- No storage on the module itself requiring a carrier board
- Higher cost compared to alternatives like Raspberry Pi 5
- Isolated reports of power-on failure with specific non-certified chargers
Technical Specification Comparison
Side-by-side spec alignment. Rows highlighted with subtle shading denote differing specifications.
| Specification | Raspberry Pi 5 2GB | LattePanda Mu Ultra |
|---|---|---|
| Brand DIFF | Raspberry Pi | LattePanda |
| Model DIFF | 5 2GB | LattePanda Mu Ultra |
| Processor DIFF | Broadcom BCM2712 Quad-core Arm Cortex-A76 @ 2.4GHz | — |
| CPU Architecture DIFF | 64-bit Armv8-A | — |
| CPU Core Count DIFF | 4 | — |
| Cache DIFF | 512KB L2 per core, 2MB shared L3 | — |
| Graphics DIFF | VideoCore VII @ 800MHz | — |
| System Memory DIFF | 2GB LPDDR4X-4267 SDRAM | — |
| Display Output DIFF | Dual micro-HDMI (up to 4Kp60 simultaneous) | — |
| Video Decode DIFF | 4Kp60 HEVC | — |
| Wireless Connectivity DIFF | Dual-band 802.11ac Wi-Fi, Bluetooth 5.0 / BLE | — |
| Ethernet DIFF | Gigabit Ethernet (1000BASE-T) | — |
| USB Connectivity DIFF | 2x USB 3.0 (5Gbps), 2x USB 2.0 | — |
| Expansion Interface DIFF | Standard 40-pin GPIO header, PCIe 2.0 x1 interface | — |
| Power Delivery DIFF | USB-C PD (5V/5A recommended) | — |
| Cpu Models DIFF | — | Intel Core Ultra 5 226V, Intel Core Ultra 7 256V |
| Cpu Architecture DIFF | — | Lunar Lake |
| Cpu Cores DIFF | — | 8 Cores (Octa-core) |
| Gpu Model DIFF | — | Intel Arc 130V / Intel Arc 140V |
| Memory Type DIFF | — | LPDDR5X |
| Memory Capacity DIFF | — | 16 GB |
| Form Factor DIFF | — | 69.6 x 60 mm |
| Display Interfaces DIFF | — | 3x HDMI 2.0, DisplayPort 1.4 |
| Usb Ports DIFF | — | 2x USB 3.2 Gen2 (10Gbps), 6x USB 2.0 |
