Side-by-Side Comparison
Phanteks EX5 MAX vs NZXT H5 Flow RGB
Standardized 5-pillar engineering audit, thermal telemetry, verified longevity metrics, and complete technical specification diff.
● HIGHLY RATED

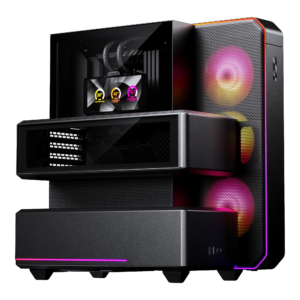

Phanteks EX5 MAX
Composite Score:
4.4
/ 5.0
Turnkey mid-tower chassis integrating a 360 mm AIO liquid cooler, concealed tubing architecture, dedicated VRM spot cooling, and an embedded 6-inch telemetry display.
● HIGHLY RATED
NZXT H5 Flow RGB
Composite Score:
4.4
/ 5.0
A refined, high-airflow mid-tower enclosure featuring rigid SGCC steel construction, an innovative single-frame F360 RGB Core fan, and exceptional thermal performance.
⚖️
Mizex Comparative Audit Verdict
Both the Phanteks EX5 MAX and NZXT H5 Flow RGB share an identical composite score of 4.4. Choice between them depends primarily on specific port requirements, physical dimensions, or pricing.
5-Pillar Engineering Telemetry
Detailed comparison across standardized normalized 1.0 – 5.0 engineering pillars.
Phanteks EX5 MAX
NZXT H5 Flow RGB
Engineering & Architecture
(30%)
Winner: Phanteks EX5 MAX (+0.1)
4.5
4.4
Build Quality & Materials
(20%)
Winner: NZXT H5 Flow RGB (+0.1)
4.4
4.5
Thermal, Power & Acoustics
(20%)
Winner: NZXT H5 Flow RGB (+0.1)
4.5
4.6
Real-World Reliability
(20%)
Winner: NZXT H5 Flow RGB (+0.3)
4.3
4.6
Buyer Value & Upgrades
(10%)
Tie
4.4
4.4
Phanteks EX5 MAX: Strengths & Caveats
✔ Advantages
- Factory-integrated 360 mm Glacier One 360S25-SE liquid cooler with concealed tubing architecture
- Embedded 6-inch telemetry display mounted flush behind the tempered glass side panel
- Dedicated S25-120 mm mainboard rear fan targeting VRM and memory component cooling
- Multi-chamber compartmentalized layout isolates component thermal zones for direct fresh air intake
✖ Documented Caveats
- Maximum GPU clearance capped at 358 mm restricts certain oversized custom graphics cards
- Factory-integrated AIO liquid loop increases replacement complexity compared to modular cooling configurations
NZXT H5 Flow RGB: Strengths & Caveats
✔ Advantages
- Pre-installed unified F360 RGB Core single-frame fan simplifies front cooling and drastically reduces cable clutter.
- Unrestricted ultra-fine mesh front, top, and PSU shroud panels provide excellent thermal dissipation for CPU and GPU.
- Generous 28.7 mm cable routing space with wide channels, tie-down points, and pre-installed Velcro straps.
- Clean tool-less panel access with sturdy ball-and-socket push pins and seamless tempered glass integration.
✖ Documented Caveats
- Top radiator mounting is strictly limited to 240 mm (or 280 mm with low-profile memory), lacking support for 360 mm ceiling radiators.
- Pre-installed fans utilize 3-pin DC voltage regulation rather than 4-pin PWM control.
- Front panel I/O is spartan with only a single USB-A port alongside the USB-C port.
- Does not support rear-connecting (BTF / Project Zero) motherboards.
Technical Specification Comparison
Side-by-side spec alignment. Rows highlighted with subtle shading denote differing specifications.
| Specification | Phanteks EX5 MAX | NZXT H5 Flow RGB |
|---|---|---|
| Brand DIFF | Phanteks | NZXT |
| Model DIFF | EX5 MAX | H5 Flow RGB |
| Form Factor DIFF | Mid Tower | Compact ATX Mid-Tower |
| Chassis Architecture DIFF | Compartmentalized multi-chamber airflow design | — |
| Integrated Liquid Cooler DIFF | Glacier One 360S25-SE (360 mm AIO with concealed tubing) | — |
| Radiator Support DIFF | 360 mm | — |
| Pre Installed Fans DIFF | 1x S25-120 mm mainboard rear fan | — |
| Integrated Display DIFF | 6-inch display behind tempered glass | — |
| Maximum GPU Length DIFF | 358 mm | — |
| Side Panel DIFF | Tempered glass | — |
| Lighting DIFF | Integrated ARGB (NEXLINQ ecosystem & motherboard sync compatible) | — |
| Control Software DIFF | Nexlinq | — |
| Materials DIFF | — | SGCC Steel, Tempered Glass |
| Motherboard Support DIFF | — | E-ATX (up to 277 mm), ATX, Micro-ATX, Mini-ITX |
| Dimensions DIFF | — | 465 mm x 225 mm x 430 mm (18.3 x 8.9 x 16.9 in) |
| Case Volume DIFF | — | 45.0 L |
| Weight DIFF | — | 7.63 kg (16.82 lbs) |
| Front Radiator Support DIFF | — | Up to 360 mm / 280 mm |
| Top Radiator Support DIFF | — | Up to 240 mm (280 mm with low-profile memory only) |
| Rear Radiator Support DIFF | — | 120 mm |
| Pre Installed Front Fan DIFF | — | 1x F360 RGB Core (Case Version, 1700 RPM, 50.1 CFM, 23.3 dBA) |
| Pre Installed Rear Fan DIFF | — | 1x F120Q Airflow (Case Version, 1350 RPM, 60.2 CFM, 24.1 dBA) |
| Bottom Fan Mounts DIFF | — | 2x 120 mm (on perforated PSU shroud) |
| Total Fan Capacity DIFF | — | Up to 9x 120 mm fans |
| Maximum GPU Clearance DIFF | — | Up to 410 mm |
| Maximum CPU Cooler Height DIFF | — | Up to 170 mm |
| Maximum PSU Clearance DIFF | — | Up to 200 mm |
| Cable Management Depth DIFF | — | 28.7 mm |
| Internal Drive Bays DIFF | — | 2x 2.5 in SSD, 1x 3.5 in HDD |
| Front I/O Ports DIFF | — | 1x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x 3.5 mm Headset Audio Jack |
| Dust Filtration DIFF | — | Ultra-fine perforated steel panels (Front, Top, Right Side) |
