Side-by-Side Comparison
Okinos Aqua UNO vs Thermalright TR-A30 Vision
Standardized 5-pillar engineering audit, thermal telemetry, verified longevity metrics, and complete technical specification diff.
▲ DOCUMENTED QUIRKS

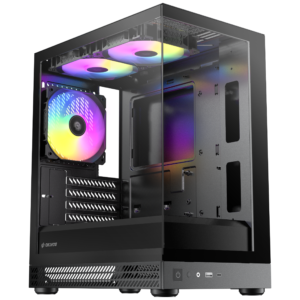

Okinos Aqua UNO
Composite Score:
4.2
/ 5.0
A compact micro-ATX chassis delivering seamless 270-degree pillarless glass views, comprehensive dust filtration, and pre-installed ARGB cooling within tight hardware clearance envelopes.
▲ DOCUMENTED QUIRKS
Thermalright TR-A30 Vision
Composite Score:
4.2
/ 5.0
Showcase-oriented mid-tower with panoramic tempered glass and an integrated telemetry screen, balanced by strict 120 mm fan requirements and zero out-of-the-box fans.
⚖️
Mizex Comparative Audit Verdict
Both the Okinos Aqua UNO and Thermalright TR-A30 Vision share an identical composite score of 4.2. Choice between them depends primarily on specific port requirements, physical dimensions, or pricing.
5-Pillar Engineering Telemetry
Detailed comparison across standardized normalized 1.0 – 5.0 engineering pillars.
Okinos Aqua UNO
Thermalright TR-A30 Vision
Engineering & Architecture
(30%)
Winner: Thermalright TR-A30 Vision (+0.1)
4.2
4.3
Build Quality & Materials
(20%)
Winner: Thermalright TR-A30 Vision (+0.1)
4.1
4.2
Thermal, Power & Acoustics
(20%)
Winner: Okinos Aqua UNO (+0.1)
4.0
3.9
Real-World Reliability
(20%)
Tie
4.4
4.4
Buyer Value & Upgrades
(10%)
Winner: Okinos Aqua UNO (+0.1)
4.3
4.2
Okinos Aqua UNO: Strengths & Caveats
✔ Advantages
- Pillarless 270-degree dual tempered glass panels with tool-free quick-release retention
- Generous 32 mm rear cable routing depth with dedicated GPU power pass-through shroud cutout
- Includes three pre-installed 120 mm ARGB fans and front USB 3.2 Gen 1 Type-C connectivity
- Detachable dust filtration across top, right side panel, and floor intake vents
✖ Documented Caveats
- Maximum graphics card clearance is constrained to 309 mm
- Storage expansion is limited to a single 3.5-inch bay and one 2.5-inch bay
- Chassis accommodates only Micro-ATX and Mini-ITX motherboards across 4 expansion slots
Thermalright TR-A30 Vision: Strengths & Caveats
✔ Advantages
- Integrated 9.16-inch magnetic display with crisp 1920x462 resolution for telemetry and custom media
- Panoramic three-sided tempered glass panels offering unobstructed views of core components
- Stepped dual-chamber layout with concealed tubing channels and up to 400 mm GPU clearance
- Modern front I/O configuration including dedicated USB Type-C connectivity
✖ Documented Caveats
- Ships without any pre-installed cooling fans, requiring separate fan purchases
- Chassis fan mounting points are limited to 120 mm fans with no 140 mm bracket support
Technical Specification Comparison
Side-by-side spec alignment. Rows highlighted with subtle shading denote differing specifications.
| Specification | Okinos Aqua UNO | Thermalright TR-A30 Vision |
|---|---|---|
| Brand DIFF | Okinos | Thermalright |
| Model DIFF | Aqua UNO | Thermalright TR-A30 Vision |
| Form Factor DIFF | Mini Tower | Mid Tower |
| Motherboard Support DIFF | Micro-ATX, Mini-ITX | — |
| Chassis Dimensions DIFF | 315 x 210 x 395 mm (D x W x H) | — |
| Chassis Weight DIFF | 3.94 kg | — |
| Panel Design DIFF | 270-degree pillarless tempered glass (front and left side), tool-free quick-release | — |
| Expansion Slots DIFF | 4 | 7 |
| Drive Bays DIFF | 1x 3.5-inch internal, 1x 2.5-inch internal | — |
| Max Gpu Length DIFF | 309 mm | 400 mm |
| Max Cpu Cooler Height | 165 mm | 165 mm |
| Max Psu Length DIFF | 160 mm | 220 mm |
| Cable Management Clearance DIFF | 32 mm | — |
| Pre Installed Fans DIFF | 3x 120 mm ARGB fans (2x top, 1x rear) | — |
| Dust Filtration DIFF | Top, right side, and bottom detachable filters | — |
| Front Io Ports DIFF | 1x USB 3.2 Gen 1 Type-C, 1x USB 3.0 Type-A, 3.5 mm audio jack, Power, LED control button (long press motherboard sync) | — |
| Case Volume DIFF | — | 52 L |
| Dimensions DIFF | — | 440 x 232 x 512 mm |
| Chassis Materials DIFF | — | Steel, Tempered Glass (Front, Side, Top) |
| Motherboard Compatibility DIFF | — | ATX, Micro-ATX, Mini-ITX |
| Integrated Display DIFF | — | 9.16-inch Magnetic Panel (1920 x 462 resolution) |
| Storage Capacity DIFF | — | 1x 3.5-inch HDD, 2x 2.5-inch SSD |
| Psu Form Factor DIFF | — | ATX |
| Fan Mount Capacity DIFF | — | Up to 7x 120 mm (Side: 3x 120 mm, Bottom: 3x 120 mm, Rear: 1x 120 mm) |
| Preinstalled Fans DIFF | — | 0 |
| Radiator Support DIFF | — | Side: 120 / 240 / 360 mm, Rear: 120 mm |
| Front Io DIFF | — | 1x USB Type-C, 2x USB 3.0 Type-A, 1x 3.5mm Headphone Jack, 1x 3.5mm Microphone Jack |
| Lighting DIFF | — | Integrated ARGB Light Strip |
