Side-by-Side Comparison

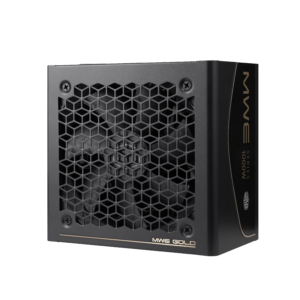

Cooler Master MWE V4 1000W vs Cooler Master Elite Gold 1000W
Standardized 5-pillar engineering audit, thermal telemetry, verified longevity metrics, and complete technical specification diff.
● HIGHLY RATED
Composite Score:
4.5
/ 5.0
A compact 140 mm ATX 3.1 power supply engineered with active 12V-2x6 current monitoring, conformal PCB protection, and Cybenetics Platinum efficiency.
● HIGHLY RATED
Composite Score:
4.5
/ 5.0
A compact 140 mm ATX 3.1 power supply pairing LLC half-bridge topology, native 12V-2x6 delivery, and 80 PLUS Gold efficiency with a 10-year warranty.
⚖️
Mizex Comparative Audit Verdict
Both the Cooler Master MWE V4 1000W and Cooler Master Elite Gold 1000W share an identical composite score of 4.5. Choice between them depends primarily on specific port requirements, physical dimensions, or pricing.
5-Pillar Engineering Telemetry
Detailed comparison across standardized normalized 1.0 – 5.0 engineering pillars.
Cooler Master MWE V4 1000W
Cooler Master Elite Gold 1000W
Engineering & Architecture
(30%)
Winner: Cooler Master MWE V4 1000W (+0.1)
4.6
4.5
Build Quality & Materials
(20%)
Winner: Cooler Master Elite Gold 1000W (+0.1)
4.3
4.4
Thermal, Power & Acoustics
(20%)
Winner: Cooler Master Elite Gold 1000W (+0.1)
4.2
4.3
Real-World Reliability
(20%)
Tie
4.6
4.6
Buyer Value & Upgrades
(10%)
Winner: Cooler Master Elite Gold 1000W (+0.2)
4.5
4.7
Cooler Master MWE V4 1000W: Strengths & Caveats
✔ Advantages
- Active GPU Shield hardware current monitoring on the native 12V-2x6 connector with multi-stage fault cutoff
- Compact 140 mm chassis length maximizes compatibility with constrained ATX enclosures
- Conformal-coated internal PCB provides moisture, dust, and environmental corrosion resistance
- High efficiency and quiet acoustic profile validated by Cybenetics Platinum and A- certifications
✖ Documented Caveats
- GPU Shield status indicator LED is mounted on the PSU connector bay, making it difficult to view inside enclosed chassis shrouds
- Semi-passive zero-RPM fan mode cannot be manually toggled off via an external physical switch
Cooler Master Elite Gold 1000W: Strengths & Caveats
✔ Advantages
- Full compliance with ATX 3.1 and PCIe 5.1 standards including a native 12V-2x6 high-power cable
- Short 140 mm (5.51 in) chassis depth ensures broad compatibility in space-restricted ATX enclosures
- High electrical conversion efficiency certified at 80 PLUS Gold (≥90% under typical loads)
- Ten-year manufacturer warranty supported by comprehensive UVP, OVP, OPP, OTP, and SCP protections
✖ Documented Caveats
- Operating ambient temperature ceiling is rated at 40°C rather than the 50°C enthusiast standard
- Hold-up time threshold (≥16 ms) is validated at 80% continuous load rather than full 100% capacity
- Includes three legacy PCIe 6+2-pin cables, limiting multi-card setups that require four discrete 8-pin leads
Technical Specification Comparison
Side-by-side spec alignment. Rows highlighted with subtle shading denote differing specifications.
| Specification | Cooler Master MWE V4 1000W | Cooler Master Elite Gold 1000W |
|---|---|---|
| Brand | Cooler Master | Cooler Master |
| Model DIFF | MWE Gold 1000 V4 | Elite Gold 1000W |
| Total Power Output DIFF | 1000 W | — |
| Form Factor DIFF | ATX 12V Ver. 3.1 | ATX |
| PCIe Standard DIFF | PCIe 5.1 Native | PCIe 5.1 Ready |
| Dimensions | 5.51 x 5.91 x 3.39 in (140 x 150 x 86 mm) | 5.51 x 5.91 x 3.39 in (140 x 150 x 86 mm) |
| Weight DIFF | 4.74 lbs (2.15 kg) | — |
| Efficiency Certification DIFF | 80 PLUS Gold (Cybenetics Platinum) | — |
| Acoustic Rating DIFF | Cybenetics A- | — |
| Fan Size And Bearing DIFF | 120 mm Hydrodynamic Bearing (HDB) | — |
| Cooling Profile DIFF | Smart Thermal Control Mode (Semi-Passive Zero-RPM) | — |
| Circuit Topology DIFF | Half-Bridge LLC Resonant + Synchronous Rectification (DC-to-DC) | — |
| High Power GPU Connector DIFF | 1x 16-Pin 12V-2x6 with GPU Shield Current Management | — |
| Cable Management DIFF | Fully Modular Flat Ribbon Cables | — |
| Environmental Protection DIFF | Conformal Coated PCB | — |
| Protection Features DIFF | OVP, OPP, SCP, OCP, UVP, OTP | — |
| Warranty DIFF | 10-Year Limited Warranty | — |
| Total Continuous Power DIFF | — | 1000W |
| ATX Specification DIFF | — | ATX 12V Ver. 3.1 |
| Efficiency Rating DIFF | — | 80 PLUS Gold (≥90% Typical) |
| Modularity DIFF | — | Fully Modular |
| Cable Style DIFF | — | Embossed flat black cables |
| Internal Topology DIFF | — | Active PFC + LLC Half Bridge + DC-to-DC |
| Power Factor Correction DIFF | — | Active PFC |
| Input Voltage Range DIFF | — | 100-240V AC |
| Input Current Range DIFF | — | 6-12A |
| Input Frequency Range DIFF | — | 50-60 Hz |
| Cooling Fan Size DIFF | — | 4.72 in (120 mm) |
| Fan Bearing Type DIFF | — | Fluid Dynamic Bearing (FDB) |
| Operating Temperature Range DIFF | — | 32°F to 104°F (0°C to 40°C) |
| Hold Up Time DIFF | — | ≥16 ms (at 80% Load) |
| Power Good Signal DIFF | — | 100-150 ms |
| MTBF DIFF | — | >100,000 hours (@ 25°C ambient) |
| Protection Circuits DIFF | — | UVP, OVP, OPP, OTP, SCP |
| Connector Array DIFF | — | 1x 24-Pin ATX, 2x 4+4-Pin EPS, 1x 12V-2x6 PCIe 5.1, 3x 6+2-Pin PCIe, 9x SATA, 3x 4-Pin Peripheral |
| Warranty Period DIFF | — | 10 Years |
