- Active GPU Shield hardware current monitoring on the native 12V-2x6 connector with multi-stage fault cutoff
- Compact 140 mm chassis length maximizes compatibility with constrained ATX enclosures
- Conformal-coated internal PCB provides moisture, dust, and environmental corrosion resistance
- High efficiency and quiet acoustic profile validated by Cybenetics Platinum and A- certifications
- GPU Shield status indicator LED is mounted on the PSU connector bay, making it difficult to view inside enclosed chassis shrouds
- Semi-passive zero-RPM fan mode cannot be manually toggled off via an external physical switch
Overview
Hardware-level monitoring across high-amperage 12V rails represents a critical safeguard for contemporary workstation and gaming platforms. Within this unit, power delivery is governed by an LLC resonant half-bridge topology paired with synchronous rectification and DC-to-DC converters for the secondary 3.3V and 5V rails, supplying a full 1000 W capacity in compliance with ATX 3.1 and PCIe 5.1 standards. The centerpiece of the electrical architecture is the GPU Shield Intelligent Current Management system, which actively tracks current across individual 12V pins on the native 12V-2×6 interface. If pin draw exceeds 9.3A, the system initiates an LED warning, while exceeding 15A prompts an immediate protective shutdown to eliminate terminal overheating and prevent cable deformation.

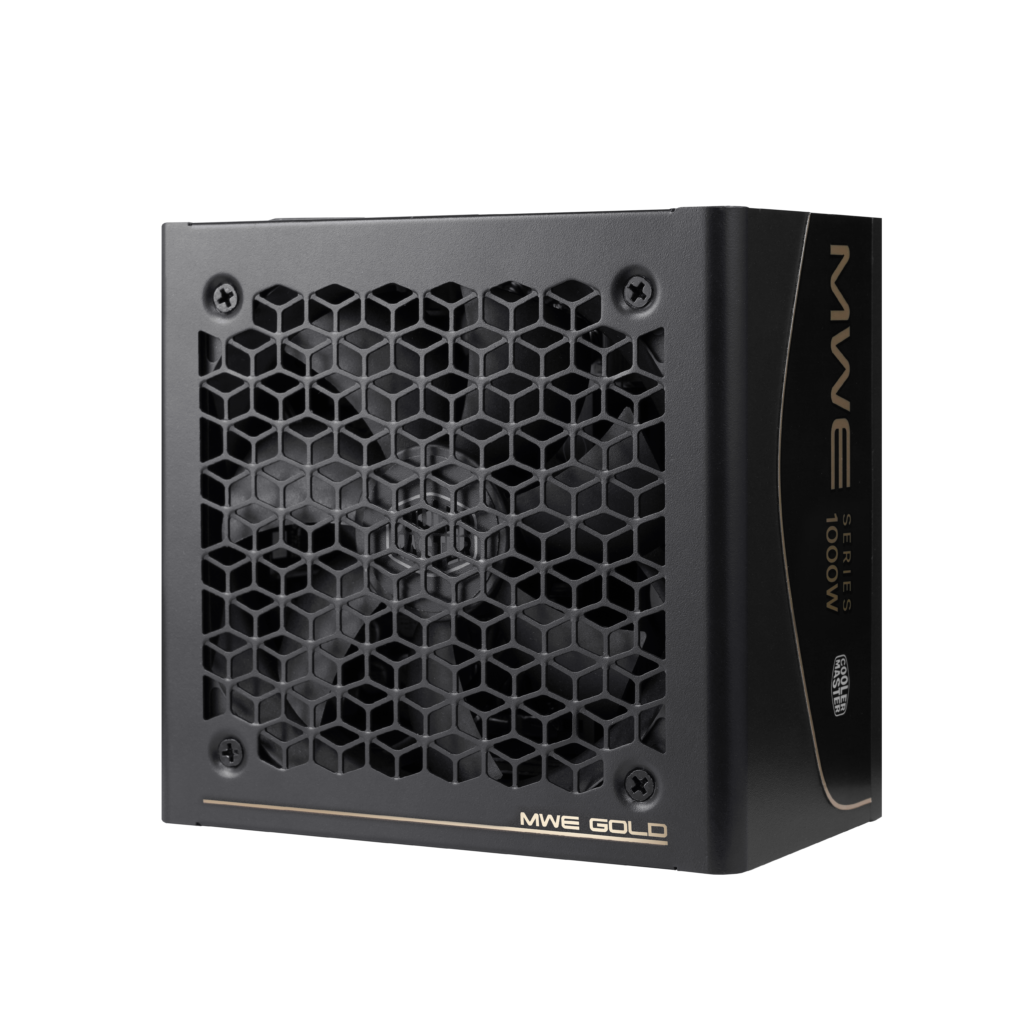

Physical construction is centered around a space-efficient chassis footprint measuring 5.51 x 5.91 x 3.39 in (140 x 150 x 86 mm), allowing wide compatibility across standard ATX cases without obstructing lower drive bays or cable routing channels. The internal printed circuit board is treated with an industrial conformal coating, providing essential resistance against airborne dust, humidity, and atmospheric corrosion. Thermal dissipation relies on internal wave-pattern heatsinks combined with a 120 mm Hydrodynamic Bearing (HDB) fan operating under Smart Thermal Control Mode. The fan remains dormant under light system utilization before engaging a gradual ramp curve, achieving Cybenetics A- acoustic certification and Cybenetics Platinum efficiency levels under load.
From an integration perspective, fully modular flat black ribbon cabling simplifies wire routing behind motherboard trays and improves unrestricted internal airflow. One practical caveat involves the GPU Shield status indicator, which is positioned adjacent to the modular socket cluster on the power supply chassis. In enclosures equipped with solid power supply shrouds, observing this diagnostic LED requires direct visual access to the compartment. Additionally, the semi-passive fan mode is automated without a manual override switch on the exterior casing. Backed by full over-voltage, over-power, over-current, and thermal cutoff protections alongside a 10-year manufacturer warranty, the platform establishes dependable long-term stability under severe graphic processing loads.
Technical Specifications
| Brand | Cooler Master |
| Model | MWE Gold 1000 V4 |
| Total Power Output | 1000 W |
| Form Factor | ATX 12V Ver. 3.1 |
| PCIe Standard | PCIe 5.1 Native |
| Dimensions | 5.51 x 5.91 x 3.39 in (140 x 150 x 86 mm) |
| Weight | 4.74 lbs (2.15 kg) |
| Efficiency Certification | 80 PLUS Gold (Cybenetics Platinum) |
| Acoustic Rating | Cybenetics A- |
| Fan Size And Bearing | 120 mm Hydrodynamic Bearing (HDB) |
| Cooling Profile | Smart Thermal Control Mode (Semi-Passive Zero-RPM) |
| Circuit Topology | Half-Bridge LLC Resonant + Synchronous Rectification (DC-to-DC) |
| High Power GPU Connector | 1x 16-Pin 12V-2x6 with GPU Shield Current Management |
| Cable Management | Fully Modular Flat Ribbon Cables |
| Environmental Protection | Conformal Coated PCB |
| Protection Features | OVP, OPP, SCP, OCP, UVP, OTP |
| Warranty | 10-Year Limited Warranty |
