Side-by-Side Comparison
ASUS Prime B550M-K WiFi vs ASRock B550 Rock WiFi
Standardized 5-pillar engineering audit, thermal telemetry, verified longevity metrics, and complete technical specification diff.
▲ DOCUMENTED QUIRKS
Composite Score:
3.7
/ 5.0

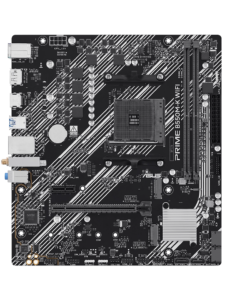

A compact AM4 micro-ATX platform combining Wi-Fi 6 and PCIe 4.0 storage with an entry-level unheatsinked 4+2 phase VRM tailored for 65W processors.
★ Recommended Winner
▲ DOCUMENTED QUIRKS
Composite Score:
4.1
/ 5.0
A dependable AM4 platform offering integrated Wi-Fi networking and full ATX expansion capabilities for DDR4-based systems.
⚖️
Mizex Comparative Audit Verdict
The ASRock B550 Rock WiFi achieves the higher Mizex Composite Score (4.1 vs 3.7), leading across 4 of 5 engineering pillars. With an advantage in Engineering & Architecture, Build Quality & Materials, Thermal, Power & Acoustics, Real-World Reliability, it represents the stronger technical recommendation.
5-Pillar Engineering Telemetry
Detailed comparison across standardized normalized 1.0 – 5.0 engineering pillars.
ASUS Prime B550M-K WiFi
ASRock B550 Rock WiFi
Engineering & Architecture
(30%)
Winner: ASRock B550 Rock WiFi (+0.6)
3.5
4.1
Build Quality & Materials
(20%)
Winner: ASRock B550 Rock WiFi (+0.3)
3.7
4.0
Thermal, Power & Acoustics
(20%)
Winner: ASRock B550 Rock WiFi (+0.9)
3.2
4.1
Real-World Reliability
(20%)
Winner: ASRock B550 Rock WiFi (+0.3)
4.0
4.3
Buyer Value & Upgrades
(10%)
Winner: ASUS Prime B550M-K WiFi (+0.1)
4.1
4.0
ASUS Prime B550M-K WiFi: Strengths & Caveats
✔ Advantages
- Integrated Wi-Fi 6 and Bluetooth connectivity out of the box
- PCIe 4.0 x16 slot and primary PCIe 4.0 x4 M.2 interface for modern GPUs and fast NVMe storage
- Dual M.2 slots and four SATA 6Gb/s ports provide ample storage versatility for micro-ATX
- Three addressable Gen 2 ARGB headers and Fan Xpert 2+ control
✖ Documented Caveats
- Unheatsinked 4+2 phase VRM limits thermal headroom for processors beyond 65W TDP
- Lacks a dedicated hardware BIOS FlashBack button and rear USB Type-C connectivity
- Limited to two DDR4 DIMM slots with a 64GB maximum memory capacity
ASRock B550 Rock WiFi: Strengths & Caveats
✔ Advantages
- Native AM4 socket compatibility supporting DDR4 memory and AMD B550 platform features.
- Integrated Wi-Fi module provides wireless networking out of the box.
- Dual display outputs featuring both modern HDMI and legacy VGA interfaces.
- Full ATX form factor provides comprehensive expansion card and component spacing.
✖ Documented Caveats
- Legacy AM4 platform limits memory compatibility to DDR4 without DDR5 support.
- Rear display connectivity relies partly on legacy analog VGA rather than DisplayPort.
Technical Specification Comparison
Side-by-side spec alignment. Rows highlighted with subtle shading denote differing specifications.
| Specification | ASUS Prime B550M-K WiFi | ASRock B550 Rock WiFi |
|---|---|---|
| Brand DIFF | ASUS | ASRock |
| Model DIFF | Prime B550M-K WiFi | B550 Rock WiFi |
| Form Factor DIFF | Micro-ATX (9.6 x 8.7 in / 244 x 221 mm) | — |
| CPU Socket DIFF | AMD Socket AM4 | — |
| Supported Processors DIFF | AMD Ryzen 5000 / 5000 G-Series / 4000 G-Series / 3000 Series | — |
| Chipset DIFF | AMD B550 | — |
| Power Delivery DIFF | 4+2 Phase Digi+ VRM (Discrete MOSFETs, unheatsinked) | — |
| Memory Slots DIFF | 2 x DDR4 DIMM (Dual-channel, up to 64GB, up to DDR4-5100 OC) | — |
| PCIe Expansion DIFF | 1 x PCIe 4.0 x16 (SafeSlot Core), 1 x PCIe 3.0 x1 | — |
| Storage Interfaces DIFF | 1 x M.2 2280 (PCIe 4.0 x4 & SATA), 1 x M.2 22110 (PCIe 3.0 x4 & SATA), 4 x SATA 6Gb/s | — |
| Wireless Connectivity DIFF | Wi-Fi 6 (802.11ax 1x1, 2.4/5GHz) + Bluetooth | — |
| Wired Networking DIFF | Realtek 1Gb Ethernet with ASUS LANGuard | — |
| Audio Codec DIFF | Realtek 7.1 Surround High Definition Audio CODEC | — |
| Rear I/O Ports DIFF | 4 x USB 3.2 Gen 1 (5Gbps Type-A), 2 x USB 2.0 Type-A, 1 x HDMI 2.1, 1 x DisplayPort 1.4, 1 x PS/2, 3 x Audio Jacks, 2 x Wi-Fi Antenna Ports, 1 x RJ-45 | — |
| Internal USB Headers DIFF | 1 x USB 3.2 Gen 1 header (supports 2 ports), 2 x USB 2.0 headers (supports 4 ports) | — |
| Fan Headers DIFF | 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers | — |
| RGB Headers DIFF | 3 x Addressable Gen 2 ARGB headers | — |
| Power Connectors DIFF | 1 x 24-pin EATX, 1 x 8-pin ATX 12V | — |
| BIOS & Diagnostics DIFF | 128Mb Flash ROM UEFI AMI BIOS, Q-LED Core | — |
| Socket DIFF | — | AM4 |
| Chipset DIFF | — | AMD B550 |
| Form Factor DIFF | — | ATX |
| Memory Type DIFF | — | DDR4 |
| Video Outputs DIFF | — | VGA, HDMI |
| Wireless Connectivity DIFF | — | Wi-Fi |
| Part Number DIFF | — | 90-MXBV20-A0UAYZ |
| Ean DIFF | — | 4711581494732 |
