Side-by-Side Comparison

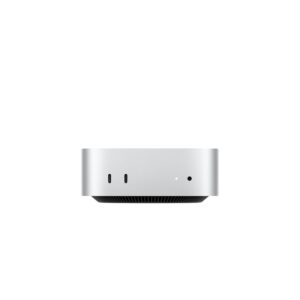

Apple Mac mini M6 vs Aaeon UP Xtreme PTL Edge Air
Standardized 5-pillar engineering audit, thermal telemetry, verified longevity metrics, and complete technical specification diff.
● HIGHLY RATED
Composite Score:
4.4
/ 5.0
A powerhouse compact desktop pairing 2nm 12-core Apple M6 silicon and three-display multi-stream output with modern Wi-Fi 7 and 2.5GbE connectivity.
● HIGHLY RATED
Composite Score:
4.4
/ 5.0
Next-generation Panther Lake edge system pairing solid-state AirJet active cooling with sub-21 dBA acoustics and an ultra-compact industrial footprint.
⚖️
Mizex Comparative Audit Verdict
Both the Apple Mac mini M6 and Aaeon UP Xtreme PTL Edge Air share an identical composite score of 4.4. Choice between them depends primarily on specific port requirements, physical dimensions, or pricing.
5-Pillar Engineering Telemetry
Detailed comparison across standardized normalized 1.0 – 5.0 engineering pillars.
Apple Mac mini M6
Aaeon UP Xtreme PTL Edge Air
Engineering & Architecture
(30%)
Winner: Apple Mac mini M6 (+0.1)
4.7
4.6
Build Quality & Materials
(20%)
Winner: Apple Mac mini M6 (+0.2)
4.4
4.2
Thermal, Power & Acoustics
(20%)
Winner: Aaeon UP Xtreme PTL Edge Air (+0.3)
4.2
4.5
Real-World Reliability
(20%)
Tie
4.6
4.6
Buyer Value & Upgrades
(10%)
Tie
3.8
3.8
Apple Mac mini M6: Strengths & Caveats
✔ Advantages
- Apple M6 silicon built on a 2nm process with 12 CPU cores, 12 GPU cores, and dual 16-core Neural Engines delivering up to 4x faster AI performance
- Robust external display controller supporting up to three displays, including dual daisy-chained monitors over a single Thunderbolt 4 port
- Upgraded baseline networking featuring native Wi-Fi 7, Bluetooth 6, and a 2.5Gb Ethernet controller configurable to 10Gb
- Convenient front-facing interface equipped with two USB-C ports and a 3.5mm high-impedance headphone jack
✖ Documented Caveats
- Base configuration starts at a restrictive 256GB of non-upgradeable internal storage
- Physical power button remains positioned awkwardly on the bottom edge of the chassis
Aaeon UP Xtreme PTL Edge Air: Strengths & Caveats
✔ Advantages
- Frore Systems AirJet solid-state active cooling eliminates rotating fans and mechanical motor wear
- Acoustic noise profile verified at less than 21 dBA during operational load
- Streamlined form factor is 35% slimmer and 43% lighter than conventional fan-cooled alternatives
- Next-generation Intel Core Ultra Series 3 (Panther Lake) platform optimized for edge AI and computer vision
✖ Documented Caveats
- Active thermal dissipation relies on specialized Frore AirJet modules rather than standard off-the-shelf replacement fans
Technical Specification Comparison
Side-by-side spec alignment. Rows highlighted with subtle shading denote differing specifications.
| Specification | Apple Mac mini M6 | Aaeon UP Xtreme PTL Edge Air |
|---|---|---|
| Brand DIFF | Apple | Aaeon |
| Model DIFF | Mac mini M6 | UP Xtreme PTL Edge Air |
| Processor DIFF | Apple M6 (2nm process) | — |
| CPU Architecture DIFF | 12-core CPU (2 super cores, 4 performance cores, 6 efficiency cores) | — |
| GPU Architecture DIFF | 12-core GPU with hardware-accelerated ray tracing and Neural Accelerators | — |
| Neural Engine DIFF | Dual 16-core Neural Engine | — |
| Unified Memory DIFF | 16GB (configurable to 24GB or 32GB) | — |
| Memory Bandwidth DIFF | 153GB/s (base 16GB) to 170GB/s (24GB/32GB configurations) | — |
| Storage DIFF | 256GB SSD (configurable to 512GB, 1TB, or 2TB) | — |
| Media Engine DIFF | Hardware-accelerated H.264, HEVC, ProRes, ProRes RAW, video decode/encode engines, AV1 decode | — |
| Display Support DIFF | Up to 3 external displays (2 displays up to 6K @ 60Hz or 4K @ 165Hz via Thunderbolt, plus 1 display up to 5K @ 60Hz via Thunderbolt or 4K @ 60Hz via HDMI); supports dual external displays over a single Thunderbolt port; DisplayPort 1.4 | — |
| Front I/O DIFF | 2x USB-C ports, 1x 3.5mm headphone jack with high-impedance headphone support, 1x power indicator LED | — |
| Rear I/O DIFF | 3x Thunderbolt 4 (USB-C) ports, 1x HDMI port, 1x 2.5Gb Ethernet port (configurable to 10Gb), 1x AC power input | — |
| Wireless Networking DIFF | Wi-Fi 7, Bluetooth 6 | — |
| Wired Networking DIFF | 2.5Gb Ethernet (configurable to 10Gb) | — |
| Audio DIFF | Built-in speaker, 3.5mm headphone jack with advanced support for high-impedance headphones | — |
| Power Input DIFF | 100–240V AC, 50–60Hz, 2.5A | — |
| Chassis Construction DIFF | Silver aluminum alloy chassis with circular bottom ventilation grille and rubber anti-slip ring | — |
| Model Number DIFF | A3534 (MHQK4CH/A) | — |
| Operating System DIFF | macOS 27 | — |
| Processor Platform DIFF | — | Intel Core Ultra Series 3 (Panther Lake) |
| Cooling Technology DIFF | — | Frore Systems AirJet Solid-State Active Cooling |
| Cooling Mechanism DIFF | — | Ultrasonic vibrating membranes generating pulsating airflow |
| Acoustic Rating (Load) DIFF | — | < 21 dBA |
| Form Factor Delta DIFF | — | 35% slimmer and 43% lighter than fan-cooled UP Xtreme PTL Edge |
| Target Applications DIFF | — | Edge AI, Machine Vision, Robotics, Automation |
| Mechanical Moving Parts DIFF | — | None (Solid-state active cooling) |
| Hardware Status DIFF | — | Announced hardware specifications; internal teardown pending retail release |
