Overview
Distributing 450 watts of continuous power across sixteen 2.5GBASE-T ports while servicing dual 10G SFP+ uplinks dictates rigorous thermal regulation and dedicated switching silicon. Operating with a 120 Gbps backplane and an 89.26 Mpps forwarding rate, the switch routes high-bandwidth 802.11be Wi-Fi 7 access points and PTZ surveillance cameras without oversubscribing internal buses. Its power architecture leverages IEEE 802.3bt Type 4 PoE++, supplying up to 95 watts per port alongside essential fail-safes such as Perpetual PoE and PoE Alive Check to sustain connected nodes through administrative reboots.

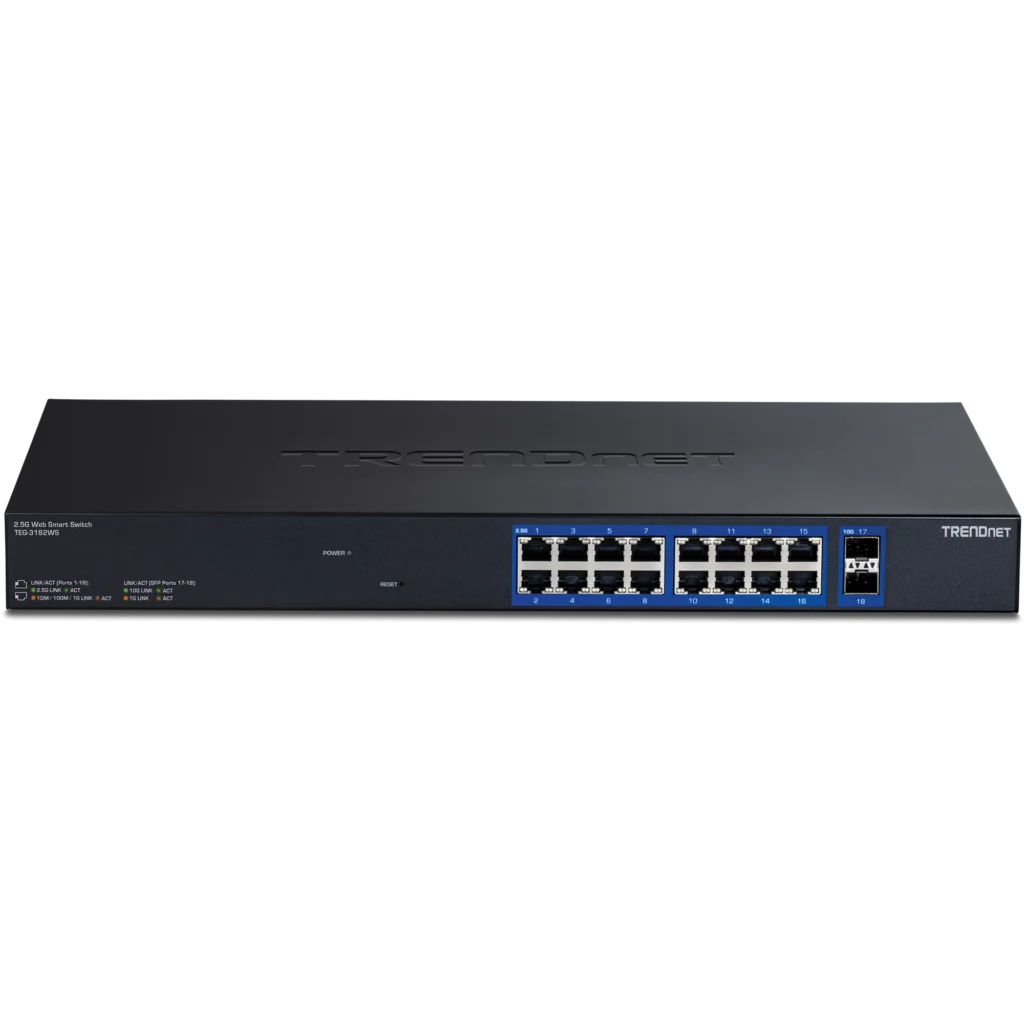

The physical implementation relies on a standard 1U metal rackmount enclosure measuring 17.32 x 9.84 x 1.73 in (440 x 250 x 44 mm) and weighing 8.3 lbs (3.77 kg). Cooling a dense internal power supply and high-wattage PoE rails demands active airflow, which is handled by three internal smart fans. Under load, these fans generate an acoustic signature peaking at 56.6 dBA, making the unit strictly suited for dedicated equipment closets or server racks rather than noise-sensitive office desks. Operating temperatures span 23 to 122°F (-5 to 50°C), backed by a 788,000-hour MTBF at 25°C.
Management is anchored by an accessible web-based GUI offering Layer 2+ capabilities, including 802.1Q VLANs, Link Aggregation (LACP), QoS traffic shaping, and IGMP snooping. While integration with TRENDnet Hive enables multi-site cloud monitoring, advanced remote administration tiers incur recurring subscription licensing. Firmware updates focus on stability and security patches, providing a dependable, set-and-forget multi-gigabit core for commercial edge environments.
Technical Specifications
| Brand | TRENDnet |
| Model | TPE-3182WSB 18-Port 2.5G PoE++ Web Smart Switch |
| Port Configuration | 16 x 2.5GBASE-T RJ-45, 2 x 10G SFP+ slots |
| PoE Architecture | IEEE 802.3bt (PoE++), 802.3at (PoE+), 802.3af (PoE) |
| Total PoE Power Budget | 450W |
| Maximum Power Per Port | Up to 95W |
| Switching Fabric Capacity | 120 Gbps |
| Forwarding Rate | 89.26 Mpps (64-byte packets) |
| Packet Buffer | 1.5 MB (12 Mbits) |
| MAC Address Table | 16K entries |
| Jumbo Frame Support | Up to 12 KB |
| Thermal Architecture | Active cooling with 3 smart fans |
| Maximum Acoustic Noise | 56.6 dBA |
| Base Power Draw | 30.72W (no PoE load) |
| Maximum System Power | 480.72W (full PoE load) |
| Input Voltage | 100 – 240V AC, 50/60 Hz (internal power supply) |
| Operating Temperature Range | 23 to 122°F (-5 to 50°C) |
| Operating Humidity | Max 90% non-condensing |
| Dimensions | 17.32 x 9.84 x 1.73 in (440 x 250 x 44 mm) |
| Weight | 8.3 lbs (3.77 kg) |
| Form Factor | 1U 19-inch rack mountable |
| Mean Time Between Failures (MTBF) | 788,000 hours @ 25°C |
| Compliance | NDAA / TAA compliant |
- Substantial 450W PoE budget supporting up to 95W per port via 802.3bt PoE++
- Non-blocking 120 Gbps switching capacity and 89.26 Mpps forwarding rate with dual 10G SFP+ uplinks
- Integrated Perpetual PoE and PoE Alive Check provide automated device reboot recovery
- Lifetime hardware warranty and 788,000-hour MTBF rating
- Triple-fan active cooling reaches up to 56.6 dBA under load, requiring rack or closet placement
- Advanced cloud management via TRENDnet Hive requires an optional recurring subscription
Recommended Alternatives in Networking & Routers
At a Glance
How reliable is the TRENDnet TPE-3182WSB 18-Port 2.5G PoE++ Web Smart Switch Review: Multi-Gigabit PoE++ Power Delivery according to Mizex audits?
A solid enterprise-grade multi-gigabit foundation for powering high-draw access points and IP cameras, provided it is installed in a dedicated wiring closet rather than an open office space.
What are the known quirks or drawbacks of the TRENDnet TPE-3182WSB 18-Port 2.5G PoE++ Web Smart Switch Review: Multi-Gigabit PoE++ Power Delivery?
Our reliability audit identified the following documented caveats:
- Triple-fan active cooling reaches up to 56.6 dBA under load, requiring rack or closet placement
- Advanced cloud management via TRENDnet Hive requires an optional recurring subscription
What are the key engineering highlights of the TRENDnet TPE-3182WSB 18-Port 2.5G PoE++ Web Smart Switch Review: Multi-Gigabit PoE++ Power Delivery?
The top strengths recorded in our evaluation include:
- Substantial 450W PoE budget supporting up to 95W per port via 802.3bt PoE++
- Non-blocking 120 Gbps switching capacity and 89.26 Mpps forwarding rate with dual 10G SFP+ uplinks
- Integrated Perpetual PoE and PoE Alive Check provide automated device reboot recovery
- Lifetime hardware warranty and 788,000-hour MTBF rating
