- Dual 4 mm tempered glass panels provide panoramic internal visibility from front and side angles
- Expansive hardware clearance accommodating graphics cards up to 450 mm and CPU coolers up to 175 mm
- Equipped with four pre-installed Infinity ARGB PWM fans and multi-radiator support up to 360 mm
- Modern front-panel I/O connectivity including a dedicated high-speed USB Type-C port
- Constrained storage capacity limited to a single 3.5-inch HDD and two 2.5-inch SSD drive bays
Overview

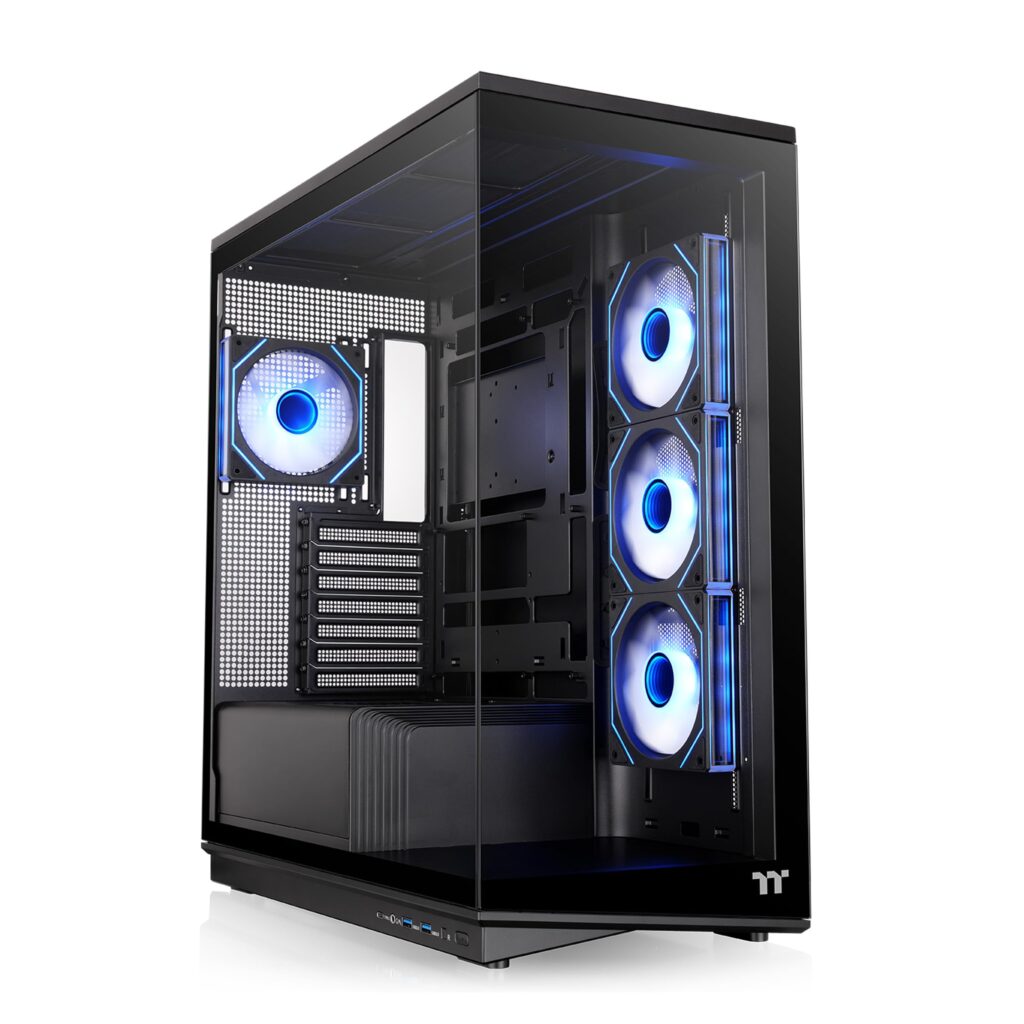

Modern showcase PC builds increasingly demand seamless hardware exhibition alongside enough structural breathing room to host oversized flagship graphics cards. Dual 4 mm tempered glass panels wrapping the front and side give this mid-tower chassis an expansive, pillarless aesthetic window into internal components. Beneath the clean glass exterior lies a spacious interior engineered to accommodate graphics cards up to 450 mm in length and CPU air coolers up to 175 mm tall. Standard ATX, Micro ATX, and Mini ITX motherboards seat comfortably with ample clearance around the perimeter for clean routing, while the front I/O cluster provides modern connectivity through a dedicated USB Type-C port, two USB 3.0 ports, and HD Audio.
Thermal performance in panoramic dual-glass enclosures depends entirely on deliberate airflow pathing, and four pre-installed Infinity ARGB PWM fans provide an active cooling baseline straight out of the box. The internal layout supports up to seven 120 mm fans across alternative mounting positions, enabling positive-pressure configurations that actively exhaust heat away from core components. Builders opting for liquid cooling can mount radiators up to 360 mm, with additional support across 280 mm, 240 mm, 140 mm, and 120 mm form factors. Because fan speeds are governed dynamically via PWM control from the motherboard, acoustic profiles scale predictably with workload rather than producing fixed motor hum.
From a practical assembly standpoint, the chassis delivers an accommodating build environment that comfortably houses power supplies up to 200 mm long, leaving room beneath the lower shroud for excess cable harness storage. Dedicated storage mounting is deliberately lean, prioritizing component visibility over legacy drive capacity with provisions for a single 3.5-inch mechanical hard drive and two 2.5-inch solid-state drives. For enthusiasts seeking visual customization, the chassis architecture also incorporates physical mounting support for an optional 6-inch LCD panel kit. The resulting platform balances rigid structural tolerances and exhibition-grade glass fitment with generous volumetric clearance, serving builder-focused rigs cleanly.
Technical Specifications
| Brand | Thermaltake |
| Model | Stage 450 TG ARGB Black |
| Model Number | CA-12B-00M1WN-00 |
| Chassis Type | Mid Tower |
| Motherboard Support | ATX, Micro ATX, Mini ITX |
| Chassis Dimensions (H X W X D) | 21.0 x 9.4 x 18.9 in (533 x 239 x 479 mm) |
| Side Panels | Dual 0.16 in (4 mm) Tempered Glass (Front and Side) |
| Maximum GPU Length | 17.72 in (450 mm) |
| Maximum CPU Cooler Height | 6.89 in (175 mm) |
| Maximum PSU Length | 7.87 in (200 mm) |
| Pre Installed Fans | 4 x Infinity ARGB PWM fans |
| Total Fan Support | Up to 7 x 120 mm fans |
| Radiator Support | 360 mm, 280 mm, 240 mm, 140 mm, 120 mm |
| Drive Bays | 1 x 3.5-inch HDD, 2 x 2.5-inch SSD |
| Front I/O Ports | 1 x USB Type-C, 2 x USB 3.0, 1 x HD Audio |
| Expansion Support | Optional 6-inch LCD Panel Kit |
Primary Sources & Audited Citations
Recommended Alternatives in PC Cases
At a Glance
How reliable is the Thermaltake Stage 450 TG ARGB Black Review: Dual-Glass Panoramic Showcase Engineering according to Mizex audits?
An outstanding showcase chassis for builder-focused high-end rigs requiring expansive GPU clearance and out-of-the-box PWM cooling, provided heavy legacy 3.5-inch drive capacity is not required.
What are the known quirks or drawbacks of the Thermaltake Stage 450 TG ARGB Black Review: Dual-Glass Panoramic Showcase Engineering?
Our reliability audit identified the following documented caveats:
- Constrained storage capacity limited to a single 3.5-inch HDD and two 2.5-inch SSD drive bays
What are the key engineering highlights of the Thermaltake Stage 450 TG ARGB Black Review: Dual-Glass Panoramic Showcase Engineering?
The top strengths recorded in our evaluation include:
- Dual 4 mm tempered glass panels provide panoramic internal visibility from front and side angles
- Expansive hardware clearance accommodating graphics cards up to 450 mm and CPU coolers up to 175 mm
- Equipped with four pre-installed Infinity ARGB PWM fans and multi-radiator support up to 360 mm
- Modern front-panel I/O connectivity including a dedicated high-speed USB Type-C port
