- Articulating 5.0 in (127 mm) IPS display offers 360-degree rotation and 157-degree tilt adjustment for versatile case mounting
- Triple TL-U12Q fans utilize Liquid Crystal Polymer blades and durable dual-ball bearings for sustained airflow
- Effective thermal dissipation across a 15.63 in (397 mm) aluminum radiator backed by a 5-year warranty
- Strong price-to-performance ratio delivering premium display features at an accessible tier
- Peak fan acoustics reach 34.59 dBA at 2,400 RPM, requiring custom PWM curve profiling for quiet operation
- Thermalright Control Center companion software exhibits occasional USB detection and synchronization quirks
Overview

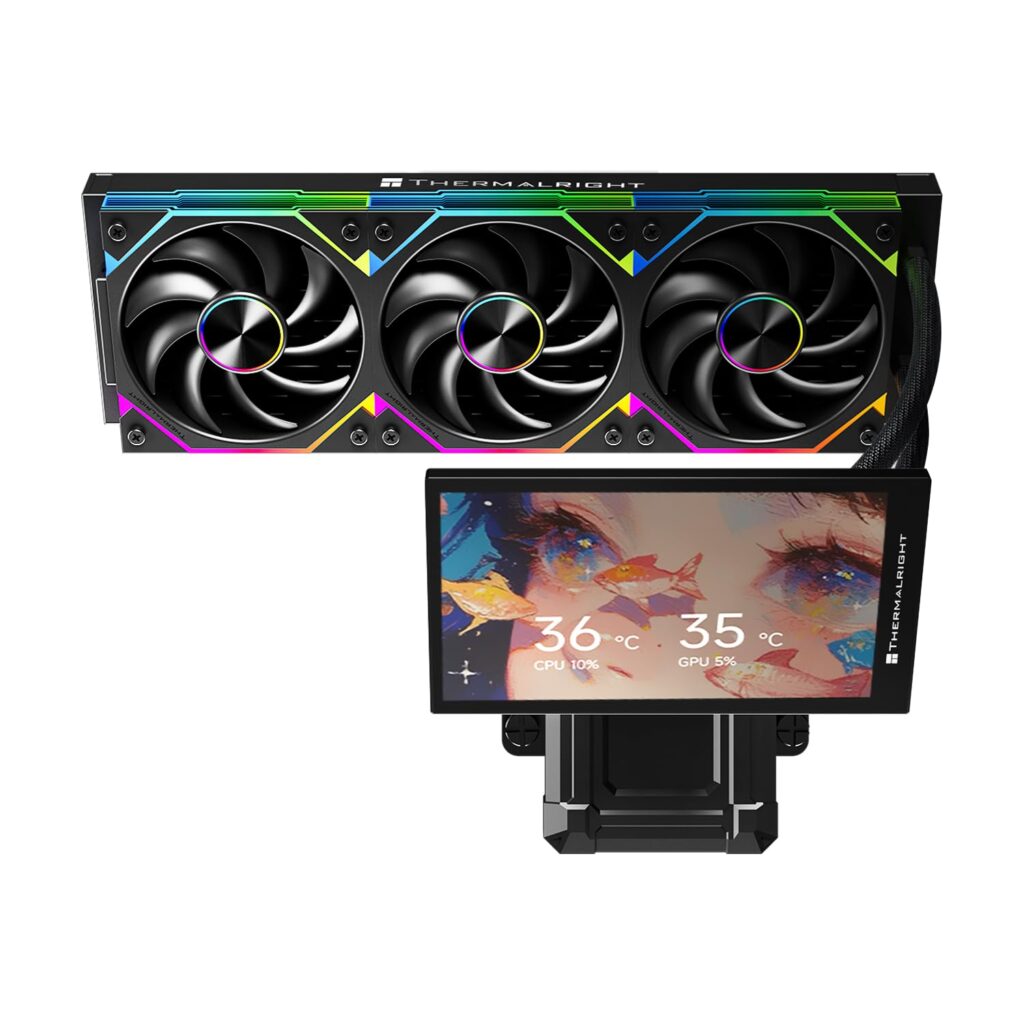

Deploying an articulating 5.0 in (127 mm) IPS display directly onto a closed-loop liquid cooling block introduces distinct mechanical clearance and fluid dynamics requirements within modern chassis layouts. Thermalright executes this configuration on the TR Dynamic Vision 360 ARGB White by mounting the 854 x 480 resolution panel onto an articulating magnetic hinge capable of 360-degree rotation and 157-degree tilt, allowing users to align telemetry readouts irrespective of socket orientation or tube routing. Liquid circulation is driven by a 3,000 RPM PWM-controlled pump featuring a ceramic bearing assembly and micro-channel copper cold plate, paired with a 15.63 x 4.72 x 1.06 in (397 x 120 x 27 mm) aluminum radiator connected via reinforced braided white tubing.
Airflow through the radiator is delivered by three 4.72 x 4.72 x 0.98 in (120 x 120 x 25 mm) TL-U12Q fans engineered with Liquid Crystal Polymer (LCP) blades and dual-ball bearings. Operating up to 2,400 RPM, the fan array generates up to 74.4 CFM (126.4 m³/h) of airflow and 2.2 mm H2O (21.57 Pa) of static pressure, maintaining low core temperatures across high-wattage desktop processors. However, aggressive factory fan curves push acoustics to 34.59 dBA at full speed, creating an audible presence that necessitates manual PWM curve tuning in BIOS to achieve quiet idle and moderate-load operation.
Telemetry and visual customization interface through an internal 9-pin USB 2.0 header and the companion Thermalright Control Center (TRCC) software suite. While the utility permits granular monitoring and media playback on the screen, users must verify that no conflicting legacy software remains installed to avoid device handshake issues. Supported across Intel LGA1851, LGA1700, and AMD AM5 sockets with a five-year manufacturer warranty, the cooler provides an accessible path to liquid cooling with integrated display telemetry, provided builders calibrate fan profiles and navigate the developing software ecosystem.
Technical Specifications
| Brand | Thermalright |
| Model | TR Dynamic Vision 360 ARGB White |
| Radiator Dimensions | 15.63 x 4.72 x 1.06 in (397 x 120 x 27 mm) |
| Water Block Dimensions | 2.72 x 2.72 x 2.36 in (69.2 x 69.2 x 60 mm) |
| Radiator Material | Aluminum |
| Cold Plate Material | Copper |
| Pump Speed | 3,000 RPM (±10%) |
| Pump Connector | 4-pin PWM |
| Pump Bearing Type | Ceramic bearing |
| Display Type | 5.0 in (127 mm) IPS LCD |
| Display Resolution | 854 x 480 pixels |
| Display Articulation | 360° rotation, 157° tilt adjustment |
| Display Interface | 9-pin USB 2.0 internal header |
| Fan Model | Thermalright TL-U12Q ARGB (x3) |
| Fan Dimensions | 4.72 x 4.72 x 0.98 in (120 x 120 x 25 mm) |
| Fan Blade Material | Liquid Crystal Polymer (LCP) |
| Fan Bearing Type | Dual-ball bearing |
| Fan Max Speed | 2,400 RPM |
| Fan Max Airflow | 74.4 CFM (126.4 m³/h) |
| Fan Max Static Pressure | 2.2 mm H2O (21.57 Pa) |
| Fan Peak Acoustic Noise | 34.59 dBA |
| Fan Connector | 4-pin PWM, 3-pin 5V ARGB |
| Socket Compatibility | Intel LGA1851 / LGA1700 / LGA1200 / LGA115X, AMD AM5 / AM4 |
| Tubing Material | Braided sleeved low-permeability rubber |
| Warranty | 5 years |
Recommended Alternatives in CPU Coolers (AIO & Air)
At a Glance
How reliable is the Thermalright TR Dynamic Vision 360 ARGB White Review: Articulating Display Meets High-RPM Cooling according to Mizex audits?
Ideal for builders seeking an articulating LCD screen and capable cooling at an accessible price point, provided they are comfortable tuning custom fan curves and navigating companion software setup.
What are the known quirks or drawbacks of the Thermalright TR Dynamic Vision 360 ARGB White Review: Articulating Display Meets High-RPM Cooling?
Our reliability audit identified the following documented caveats:
- Peak fan acoustics reach 34.59 dBA at 2,400 RPM, requiring custom PWM curve profiling for quiet operation
- Thermalright Control Center companion software exhibits occasional USB detection and synchronization quirks
What are the key engineering highlights of the Thermalright TR Dynamic Vision 360 ARGB White Review: Articulating Display Meets High-RPM Cooling?
The top strengths recorded in our evaluation include:
- Articulating 5.0 in (127 mm) IPS display offers 360-degree rotation and 157-degree tilt adjustment for versatile case mounting
- Triple TL-U12Q fans utilize Liquid Crystal Polymer blades and durable dual-ball bearings for sustained airflow
- Effective thermal dissipation across a 15.63 in (397 mm) aluminum radiator backed by a 5-year warranty
- Strong price-to-performance ratio delivering premium display features at an accessible tier
