Overview

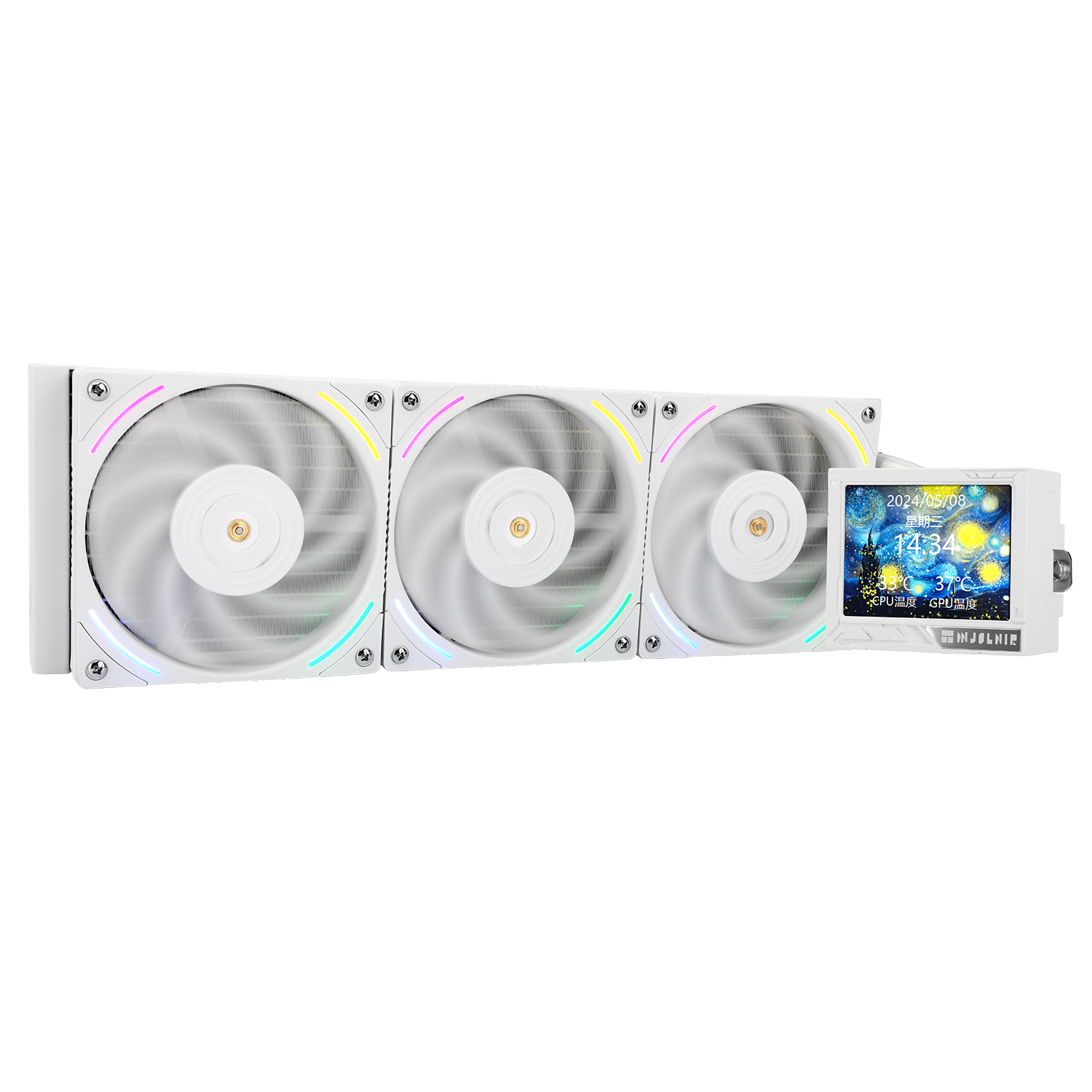

Fluid circulation through a 1.06 in (27 mm) aluminum radiator paired with high-static-pressure airflow defines the mechanical foundation of Thermalright’s Mjolnir Vision 360 ARGB White. Built around the Core V1.0 independent pump framework operating at 12V DC, the pump block transfers thermal loads away from modern processor dies into a 15.63 in (397 mm) heat exchanger rated for an estimated 380W TDP envelope. Active heat dissipation across the radiator surface is driven by three 4.72 in (120 mm) TL-K12W PWM fans capable of reaching 2150 RPM. These fans produce up to 69 CFM of airflow against 2.87 mm H2O of static pressure, utilizing S-FDB V2 fluid dynamic bearings to cap noise emissions at 27 dBA under peak operational velocity.
Enclosure integration centers on a 3.5 in (88.9 mm) IPS LCD panel featuring a 320 x 240 resolution, housed within a magnetic detachable pump cap that simplifies installation angle adjustments and chassis cable management. The display subsystem supports custom static images, animated GIF loops, video playback, and live hardware sensor telemetry when connected via an internal 9-pin USB 2.0 motherboard header and supported by background monitoring software. Standard 4-pin PWM and 3-pin 5V addressable RGB connectors govern motor cycling and lighting synchronization independently from the USB display bus.
Mounting hardware encompasses broad platform support, featuring rigid bracket assemblies for Intel LGA1851, LGA1700, and LGA1200 alongside AMD AM5 and AM4 sockets to maintain balanced coldplate clamping pressure across integrated heat spreaders. The uniform white coating extends throughout the aluminum radiator frame, fan enclosures, and sleeved tubing, presenting clean visual cohesion while fluid dynamic bearing stability ensures consistent acoustic and hydraulic performance over extended operating cycles.
Technical Specifications
| Brand | Thermalright |
| Model | Mjolnir Vision 360 ARGB White |
| Cooler Type | All-in-One (AIO) Liquid CPU Cooler |
| Radiator Dimensions | 15.63 x 4.72 x 1.06 in (397 x 120 x 27 mm) |
| Radiator Material | Aluminum |
| Pump Dimensions | 3.35 x 2.91 x 2.56 in (85 x 74 x 65 mm) |
| Pump Architecture | Core V1.0 Independent Pump Framework |
| Pump Rated Voltage | 12V DC |
| Display Type | IPS LCD |
| Display Size | 3.5 in (88.9 mm) |
| Display Resolution | 320 x 240 |
| Display Features | Magnetic detachable top cover, static/dynamic GIF and video playback, real-time hardware telemetry |
| Fan Model | TL-K12W |
| Fan Quantity | 3 |
| Fan Dimensions | 4.72 x 4.72 x 0.98 in (120 x 120 x 25 mm) |
| Fan Speed | 2150 RPM ± 10% (MAX) |
| Fan Airflow | 69 CFM (MAX) |
| Fan Static Pressure | 2.87 mm H2O (MAX) |
| Fan Noise Level | 27 dBA (MAX) |
| Fan Bearing Type | S-FDB V2 (Fluid Dynamic Bearing) |
| Interface Connectors | 4-pin PWM, 3-pin 5V ARGB, 9-pin Internal USB 2.0 |
| Socket Compatibility | Intel LGA1851, LGA1700, LGA1200; AMD AM5, AM4 |
| Estimated Thermal Capacity | 380W TDP |
| Chassis Color | White |
- Magnetic detachable pump cap housing an integrated 3.5-inch IPS display (320 x 240) for real-time telemetry and custom visuals
- Triple TL-K12W PWM fans generating up to 69 CFM airflow and 2.87 mm H2O static pressure with S-FDB V2 bearings
- Comprehensive multi-platform socket support out of the box, including Intel LGA1851/1700 and AMD AM5/AM4
- Real-time telemetry and display personalization depend on background software and a dedicated internal USB 2.0 motherboard header
Primary Sources & Audited Citations
- thermalright wonder vision 360 ub argb white: Best ARGB Cooling?
- THERMALRIGHT Mjolnir Vision 360 ARGB White CPU Liquid AIO Cooler. - $74.61 at amazon.com
- Thermalright Mjolnir Vision 360 LCD AIO ARGB (Black) - WindNet PC
- Mjolnir Vision 360 - TK Computer KH, Cambodia
- Thermalright Mjolnir Vision 360 ARGB White AIO CPU Liquid Cooler,IPS LCD Screen with 320 * 240 Resolution,for AM4/AM5 and | DirectNine
- Custom by glultra - MSI GeForce RTX 5070 12G GAMING TRIO OC, AMD Ryzen 7 7800X3D, darkFlash DY470 White
Recommended Alternatives in CPU Coolers (AIO & Air)
At a Glance
How reliable is the Thermalright Mjolnir Vision 360 ARGB White Review: High-Static Airflow Meets Magnetic Telemetry according to Mizex audits?
Ideal for high-TDP builds requiring sustained thermal dissipation and custom on-pump telemetry, provided an available internal USB 2.0 header and background software management are acceptable.
What are the known quirks or drawbacks of the Thermalright Mjolnir Vision 360 ARGB White Review: High-Static Airflow Meets Magnetic Telemetry?
Our reliability audit identified the following documented caveats:
- Real-time telemetry and display personalization depend on background software and a dedicated internal USB 2.0 motherboard header
What are the key engineering highlights of the Thermalright Mjolnir Vision 360 ARGB White Review: High-Static Airflow Meets Magnetic Telemetry?
The top strengths recorded in our evaluation include:
- Magnetic detachable pump cap housing an integrated 3.5-inch IPS display (320 x 240) for real-time telemetry and custom visuals
- Triple TL-K12W PWM fans generating up to 69 CFM airflow and 2.87 mm H2O static pressure with S-FDB V2 bearings
- Comprehensive multi-platform socket support out of the box, including Intel LGA1851/1700 and AMD AM5/AM4
