Overview

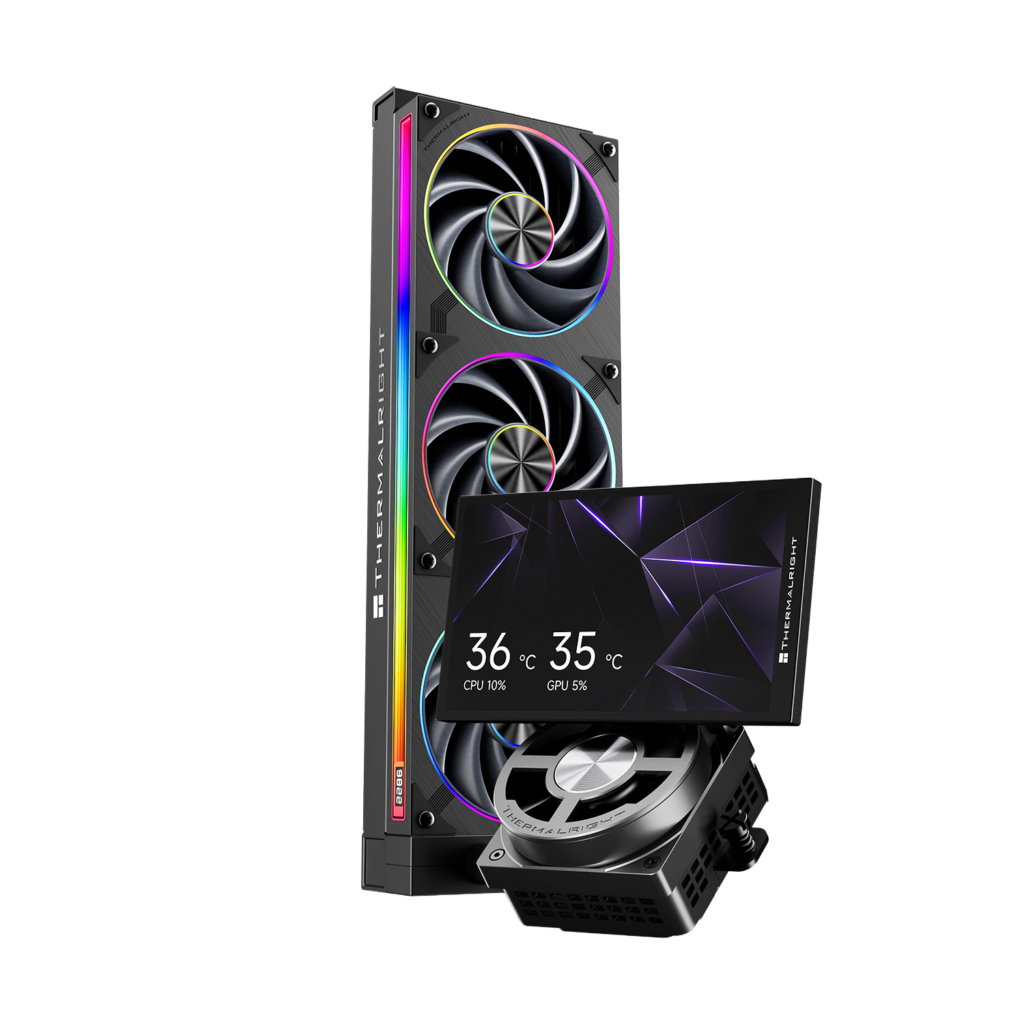

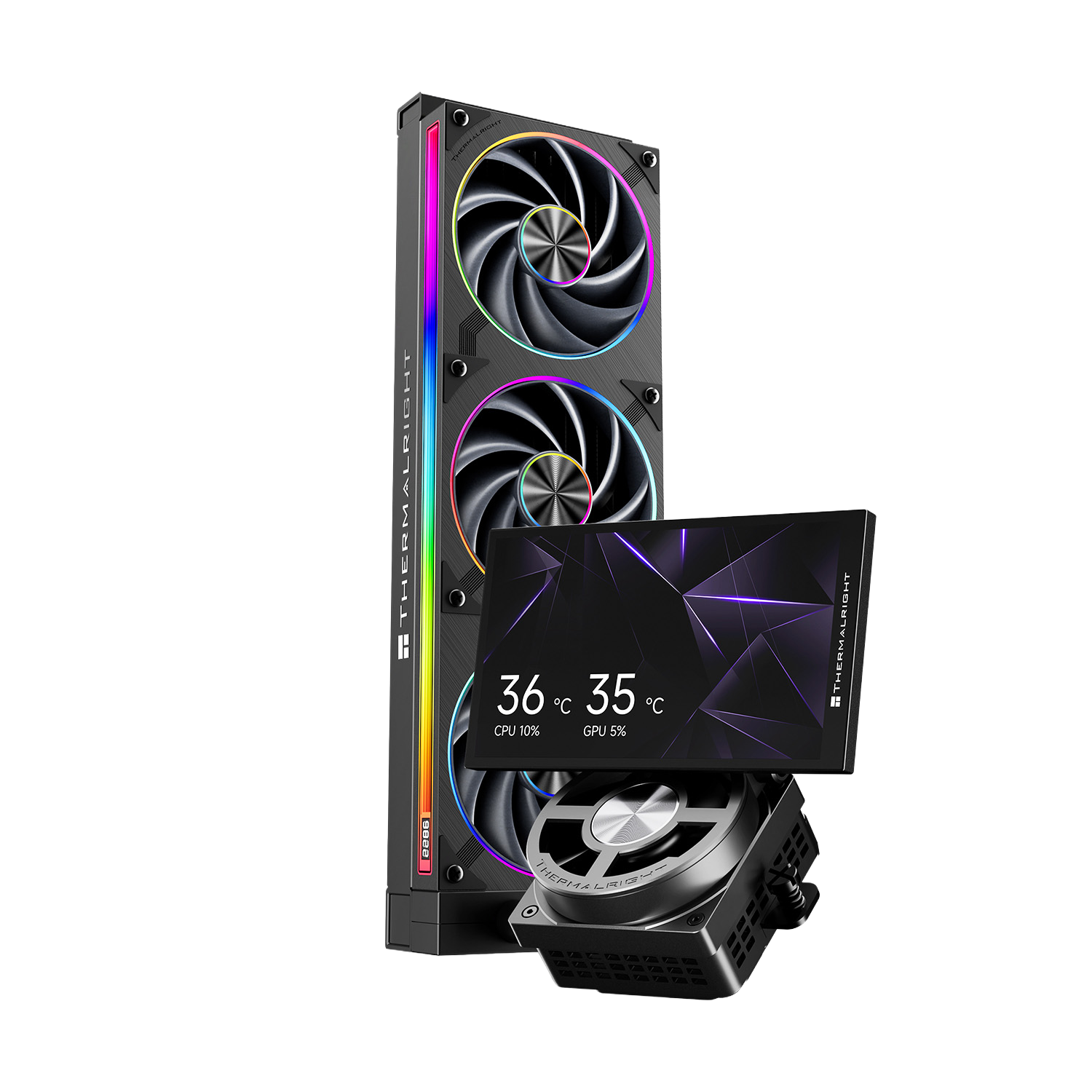

Combining active motherboard power-stage cooling with high-headroom liquid circulation, the Dynamic Vision Pro 360 ARGB Black addresses heat accumulation across the CPU socket and surrounding components. The pump block assembly measures 2.72 x 2.99 x 3.62 in (69 x 76 x 92 mm) and houses a micro-fin copper cold plate paired with an internal impeller operating at speeds up to 6400 RPM. Integrated directly within the pump housing is a dedicated 60 mm centrifugal fan engineered to direct airflow over surrounding voltage regulator modules (VRMs), M.2 solid-state storage heatsinks, and system memory. Topping the water block is a 5.5-inch IPS display delivering a 960 x 540 resolution, full 360-degree mechanical rotation, and a 157-degree viewing angle for system diagnostics and custom telemetry.
Thermal dissipation is handled by a standard 1.06 in (27 mm) thick aluminum radiator measuring 15.83 x 4.72 x 1.06 in (402 x 120 x 27 mm), connected via 17.72 in (450 mm) braided sleeved rubber tubing to resist fluid permeation. Active airflow through the radiator fins is driven by the TL-UC36 unified fan frame, spanning 14.17 x 4.72 x 0.98 in (360 x 120 x 25 mm). The three integrated 120 mm fans utilize S-FDB V2 fluid dynamic bearings to ensure rotational stability up to 2400 RPM, delivering 71.5 CFM of maximum airflow and 2.69 mm H2O of static pressure against the radiator core. At peak rotational speeds, acoustic output reaches a measured 34.59 dBA, though pulse-width modulation (PWM) control allows quiet operation under moderate thermal loads.
System configuration and display management operate through Thermalright’s proprietary control software via internal USB header communication. While the software enables custom hardware telemetry, animated graphics, and static image playback, the interface exhibits occasional firmware translation quirks and functional rough edges familiar to Thermalright peripheral software. Physical installation is streamlined by the SS2 mounting hardware, providing broad mechanical compatibility across Intel LGA1851, LGA1700, LGA1200, and AMD AM5 and AM4 sockets, while the unified fan enclosure significantly reduces daisy-chained cable management inside the chassis.
Technical Specifications
| Brand | Thermalright |
| Model | Dynamic Vision Pro 360 ARGB Black |
| Radiator Dimensions | 15.83 x 4.72 x 1.06 in (402 x 120 x 27 mm) |
| Radiator Material | Aluminum |
| Water Block Dimensions | 2.72 x 2.99 x 3.62 in (69 x 76 x 92 mm) |
| Cold Plate Material | Copper |
| Display Specifications | 5.5 in IPS LCD (960 x 540 resolution, 360-degree rotation) |
| Integrated VRM Fan | 60 mm auxiliary centrifugal fan |
| Pump Maximum Speed | 6400 RPM ± 10% |
| Pump Rated Voltage | 12V DC |
| Tubing Length | 17.72 in (450 mm) |
| Tubing Material | Braided sleeved rubber |
| Fan Model | TL-UC36 unified triple fan frame |
| Fan Dimensions | 14.17 x 4.72 x 0.98 in (360 x 120 x 25 mm) |
| Fan Bearing Type | S-FDB V2 (Stator Fluid Dynamic Bearing) |
| Fan Maximum Speed | 2400 RPM ± 10% |
| Fan Maximum Airflow | 71.5 CFM |
| Fan Maximum Static Pressure | 2.69 mm H2O |
| Fan Maximum Acoustic Noise | 34.59 dBA |
| Fan Connector | 4-pin PWM |
| Lighting Connector | 3-pin 5V Addressable RGB (ARGB) |
| Socket Compatibility | Intel LGA1851 / LGA1700 / LGA1200 / LGA115X, AMD AM5 / AM4 |
| Manufacturer Warranty | 5 Years |
- Integrated 5.5-inch 960x540 IPS display supporting 360-degree physical rotation and custom telemetry.
- Embedded 60 mm pump fan actively cools motherboard VRM power stages and adjacent M.2 drives.
- Pre-assembled TL-UC36 unified fan frame significantly streamlines cable routing and radiator mounting.
- Exceptional cooling performance and static pressure (2.69 mm H2O) at an aggressive price tier.
- Fans reach an audible 34.59 dBA when running at maximum 2400 RPM duty cycles.
- Proprietary LCD software utility has occasional UI translation flaws and rough configuration edges.
Recommended Alternatives in CPU Coolers (AIO & Air)
Fractal Design Radius 360 Black Review: Tube-Integrated Cabling Meets Liquid Cooling
Antec Skeleton Matrix 360 ARGB Review: Streamlined Monolithic 360mm Liquid Cooling
At a Glance
How reliable is the Thermalright Dynamic Vision Pro 360 ARGB Black Review: Active VRM Cooling With Panoramic Display according to Mizex audits?
An outstanding thermal solution for builders demanding a high-resolution 5.5-inch monitoring screen and active motherboard VRM cooling without paying customary flagship price premiums.
What are the known quirks or drawbacks of the Thermalright Dynamic Vision Pro 360 ARGB Black Review: Active VRM Cooling With Panoramic Display?
Our reliability audit identified the following documented caveats:
- Fans reach an audible 34.59 dBA when running at maximum 2400 RPM duty cycles.
- Proprietary LCD software utility has occasional UI translation flaws and rough configuration edges.
What are the key engineering highlights of the Thermalright Dynamic Vision Pro 360 ARGB Black Review: Active VRM Cooling With Panoramic Display?
The top strengths recorded in our evaluation include:
- Integrated 5.5-inch 960x540 IPS display supporting 360-degree physical rotation and custom telemetry.
- Embedded 60 mm pump fan actively cools motherboard VRM power stages and adjacent M.2 drives.
- Pre-assembled TL-UC36 unified fan frame significantly streamlines cable routing and radiator mounting.
- Exceptional cooling performance and static pressure (2.69 mm H2O) at an aggressive price tier.
