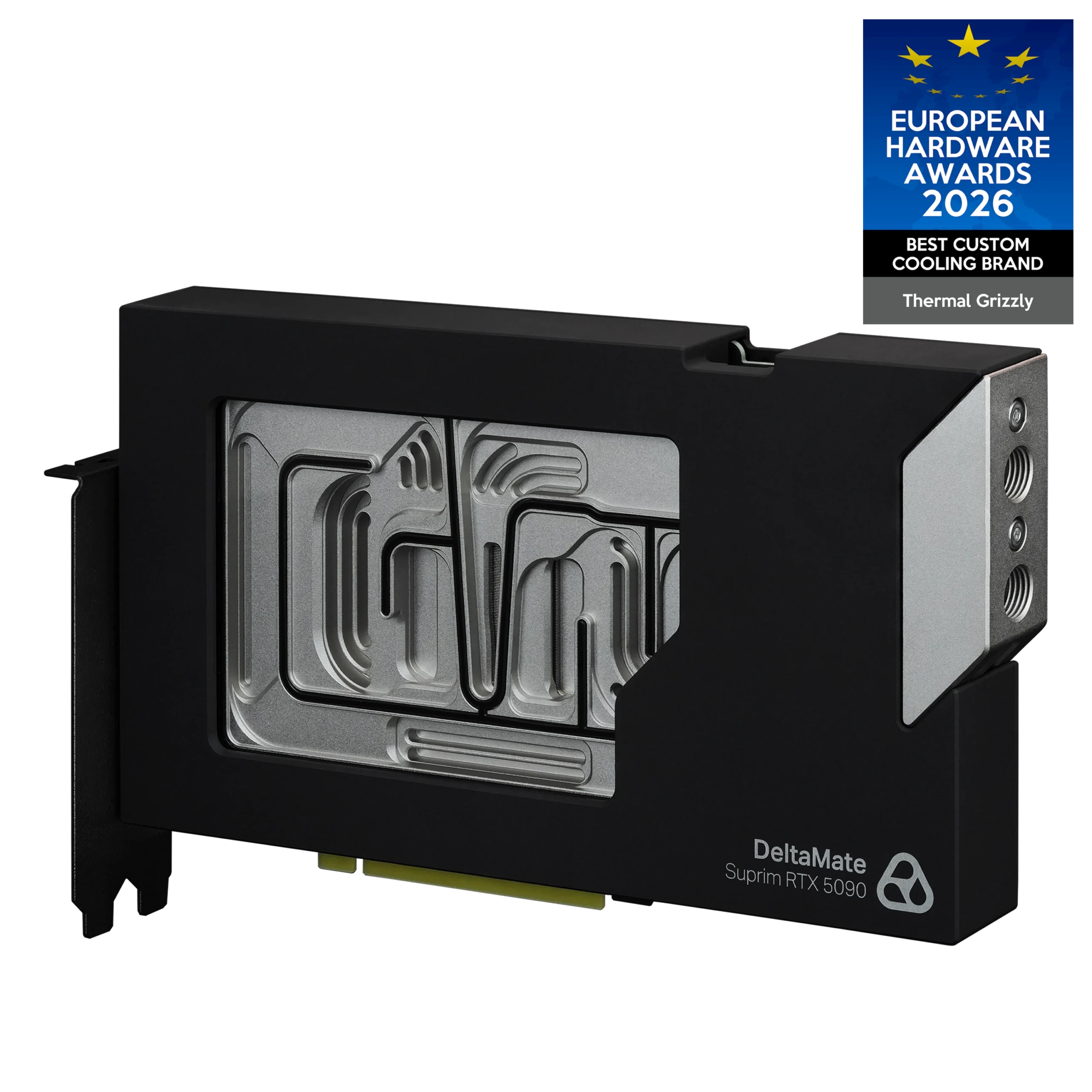

Thermal Grizzly DeltaMate GPU Block for MSI Suprim GeForce RTX 5090

Thermal Grizzly DeltaMate GPU Block for MSI Suprim GeForce RTX 5090
● HIGHLY RATED
Site Score
4.4 / 5.0
Buyer Guidance: An ultra-premium, dual-coldplate liquid cooling block providing exceptional thermal headroom for the MSI Suprim RTX 5090, tempered by single-card compatibility and a steep price.
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.7 / 5.0
Build Quality & Physical Design (20%) 4.8 / 5.0
Thermal, Power & Acoustics (20%) 4.6 / 5.0
Reliability & Stability (20%) 4.6 / 5.0
Buyer Value (10%) 2.8 / 5.0
Score Rationale
The composite score of 4.3 reflects exceptional engineering and architecture (4.7) driven by an innovative dual-coldplate configuration and dense 0.2 mm microfins. Build quality (4.8) is class-leading, utilizing CNC-machined nickel-plated copper, anodized aluminum framing, and crack-resistant borosilicate glass. Thermal management (4.6) provides unmatched heat-dissipation headroom across high-wattage silicon and power stages. Long-term reliability (4.6) is reinforced by corrosion-resistant metallurgy and the inclusion of The Oracle alignment PCB to eliminate mounting stress. Buyer value (2.8) remains the limiting factor due to the €549.90 retail barrier and total incompatibility with non-Suprim PCB layouts.
Audited 2 days ago
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
💬 Join the Discussion ↓
Scores adjust dynamically as verified community ratings accumulate.

Overview

The Thermal Grizzly DeltaMate GPU Block represents an enthusiast-grade custom liquid cooling solution purpose-built for the MSI GeForce RTX 5090 Suprim. At its core, the block introduces an advanced dual-coldplate architecture crafted from CNC-machined nickel-plated copper, physically decoupling GPU core thermal transfer from the surrounding VRAM and VRM power circuitry. Coolant distribution over the primary silicon is accelerated through a dense 0.2 mm microfin array designed to maximize convective surface area, while the exterior assembly pairs black anodized aluminum with a chemically and thermally stable borosilicate glass viewing window rather than conventional acrylic, accented with standard 3-pin 5V ARGB illumination.

From an assembly and installation perspective, Thermal Grizzly mitigates high-risk mounting tolerances on high-density graphics boards by bundling ‘The Oracle,’ a dedicated spacer and alignment PCB that standardizes thermal pad positioning and compression across critical voltage regulation modules. While the block supports loop flexibility via an optional 4-port Through Terminal, the housing remains strictly machined for the specific clearances and component heights of the MSI Suprim PCB. Builders face a considerable €549.90 investment and complete platform lock-in, positioning the DeltaMate as an uncompromising cooling solution engineered specifically for high-end custom loops.

Technical Specifications

Target GPU MSI GeForce RTX 5090 Suprim
Coldplate Design Dual-coldplate (dedicated Core coldplate, separate VRAM/VRM coldplate)
Coldplate Material CNC-machined nickel-plated copper
Microfin Structure Width 0.2 mm
Housing Material Black anodized aluminum
Viewing Window Material Borosilicate glass
Lighting Standard 3-pin ARGB (+5V/DATA/GND)
Expandability Optional 4-port Through Terminal support
Included Hardware The Oracle alignment PCB, thermal paste, thermal pads, putty
✔ Pros
  • Decoupled dual-coldplate copper architecture optimizes thermal dissipation between GPU core and VRM/VRAM
  • Superior material selection incorporating CNC nickel-plated copper, anodized aluminum, and durable borosilicate glass
  • Included 'The Oracle' alignment PCB eliminates mounting misalignment and pad compression variance
✖ Cons
  • Substantial price tag of €549.90 represents a significant premium over standard liquid blocks
  • Strictly locked to the MSI Suprim RTX 5090 PCB layout with zero cross-card compatibility
📋
