Overview

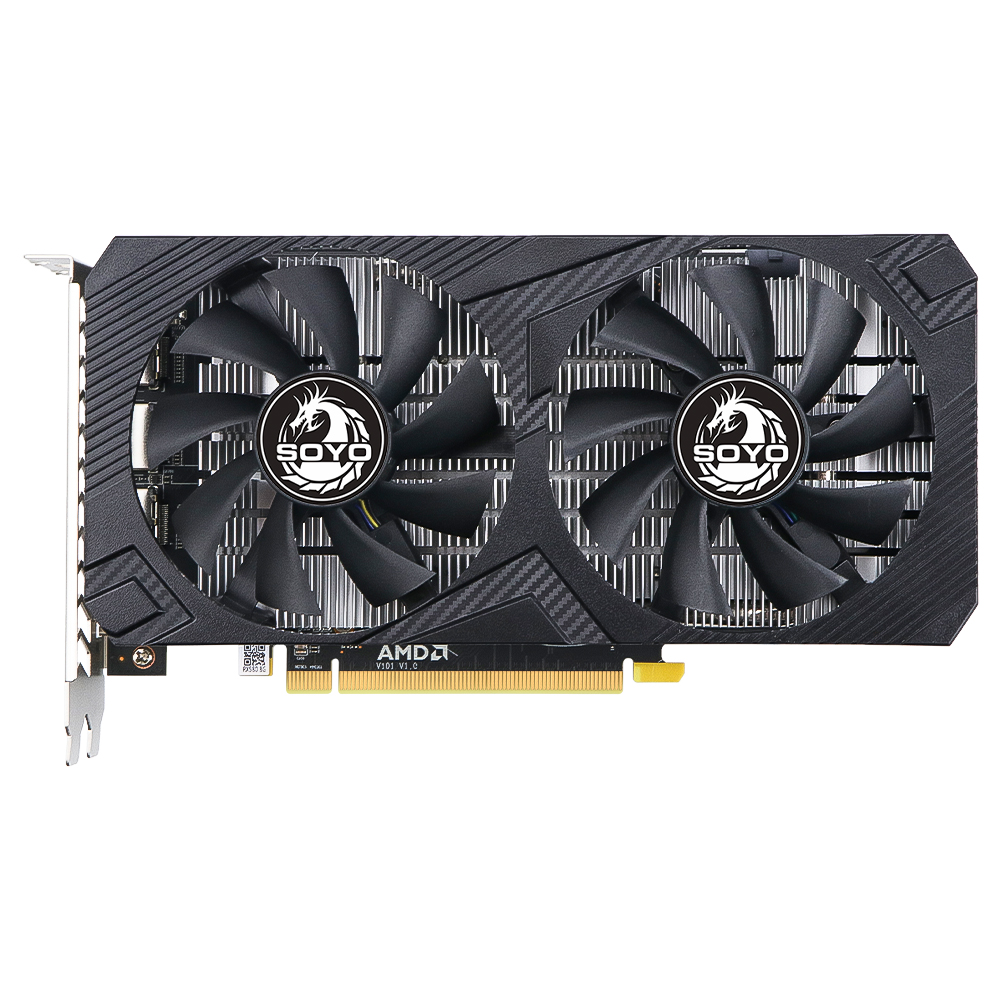

Repurposing 14nm Polaris 20 XL silicon into an entry-level graphics tier, the SOYO AMD Radeon RX 580 8GB 2048SP pairs 2,048 stream processors with an 8GB GDDR5 framebuffer across a 256-bit bus. Unlike standard 2,304-core RX 580 models or reference designs from established AIB partners like Sapphire or PowerColor, this regional variant is architecturally equivalent to an AMD Radeon RX 570, featuring 32 compute units and 128 texture mapping units. Power delivery relies on an economical 4+1 phase VRM fed by a single auxiliary PCIe connector, ensuring operational baseline stability under typical desktop gaming loads without substantial headroom for voltage manipulation.
Mechanical construction centers on a lightweight dual-slot cooling assembly featuring two axial cooling fans seated over an aluminum fin-stack array connected by dual copper heat pipes. The shroud is molded from standard matte ABS plastic without structural backplate reinforcement or rigid frame stiffening, leaving the rear PCB traces exposed. Under sustained 3D rendering workloads, the cooler maintains functional core dissipation, though the acoustic profile ramps noticeably as the fan controller maintains elevated RPMs to counter thermal buildup within the dense fin stack. VRM components and GDDR5 packages receive secondary airflow rather than direct thermal pad contact with the primary heatsink.
Firmware and operational behavior reflect the realities of the secondary hardware market, where many boards pair newly manufactured PCBs with salvaged or refurbished BGA silicon harvested from retired cryptocurrency mining rigs. While recognized by official AMD Adrenalin drivers via regional 2048SP device IDs, custom or modified VBIOS configurations occasionally surface, requiring driver signature verification workarounds or manual clock tuning to prevent sleep-wake recovery crashes. For prospective builders assembling entry-level 1080p gaming systems, the card functions as an accessible stopgap, provided its compromised component lineage, elevated fan noise, and absence of tier-one warranty infrastructure are factored into long-term system planning.
Technical Specifications
| Brand | SOYO |
| Model | Radeon RX 580 8GB 2048SP |
| GPU Architecture | AMD Polaris (GCN 4.0) |
| Manufacturing Process | 14nm FinFET |
| Stream Processors | 2048 |
| Compute Units | 32 |
| Texture Mapping Units | 128 |
| Render Output Units | 32 |
| Base Clock | 1168 MHz |
| Boost Clock | 1284 MHz |
| Memory Size | 8GB |
| Memory Type | GDDR5 |
| Memory Bus Width | 256-bit |
| Memory Clock | 1750 MHz (7000 Mbps effective) |
| Memory Bandwidth | 224 GB/s |
| Bus Interface | PCI Express 3.0 x16 |
| Power Connectors | 1x 8-pin (or 6-pin) PCIe |
| Thermal Design Power (TDP) | 150W |
| Cooling Design | Dual-fan active heatsink with 2 copper heat pipes |
| Display Outputs | 1x HDMI 2.0b, 1x DisplayPort 1.4, 1x DVI-D |
| Slot Width | Dual Slot |
- Generous 8GB GDDR5 memory buffer across a 256-bit bus provides ample capacity for 1080p textures
- Dual-fan cooling assembly with dual copper heat pipes maintains core temperatures within operational limits
- Flexible legacy and modern display output selection including DisplayPort, HDMI, and DVI-D
- Configured with 2,048 stream processors rather than the 2,304 cores found on standard global RX 580 cards
- Frequent utilization of salvaged cryptocurrency mining silicon and memory chips introduces significant longevity variance
- Rudimentary VRM layout and aggressive fan acoustic curves under sustained thermal load
Primary Sources & Audited Citations
Recommended Alternatives in Graphics Cards (GPUs)
At a Glance
How reliable is the SOYO AMD Radeon RX 580 8GB 2048SP according to Mizex audits?
A functional ultra-budget graphics card for basic 1080p gaming, advisable only if prospective buyers accept the component longevity risks inherent to salvaged Polaris silicon and rudimentary board manufacturing.
What are the known quirks or drawbacks of the SOYO AMD Radeon RX 580 8GB 2048SP?
Our reliability audit identified the following documented caveats:
- Configured with 2,048 stream processors rather than the 2,304 cores found on standard global RX 580 cards
- Frequent utilization of salvaged cryptocurrency mining silicon and memory chips introduces significant longevity variance
- Rudimentary VRM layout and aggressive fan acoustic curves under sustained thermal load
What are the key engineering highlights of the SOYO AMD Radeon RX 580 8GB 2048SP?
The top strengths recorded in our evaluation include:
- Generous 8GB GDDR5 memory buffer across a 256-bit bus provides ample capacity for 1080p textures
- Dual-fan cooling assembly with dual copper heat pipes maintains core temperatures within operational limits
- Flexible legacy and modern display output selection including DisplayPort, HDMI, and DVI-D
