Solidigm D5-P5430 30.72TB E3.S Review: Exceptional rack consolidation in slim form

Mizex is reader-supported. When you purchase through retailer links on our site, we may earn an affiliate commission at no additional cost to you.
● HIGHLY RATED
Site Score
4.4 / 5.0
Buyer Guidance: An outstanding high-density NVMe drive for enterprise read-intensive and warm storage consolidation, provided workloads do not demand TLC-tier write throughput or PCIe 5.0 bandwidth.
Check Availability & Pricing
Mizex Audit Breakdown
Engineering & Core Performance (30%) 4.4 / 5.0
Build Quality & Physical Design (20%) 4.5 / 5.0
Thermal, Power & Acoustics (20%) 4.2 / 5.0
Reliability & Stability (20%) 4.6 / 5.0
Buyer Value (10%) 4.3 / 5.0
Score Rationale
The composite score of 4.4 reflects an impressive balance of storage density and enterprise durability. Engineering & Architecture (4.4) showcases an advanced 192-layer QLC implementation augmented by an 8KB indirection unit that optimizes write amplification, tempered only by reliance on PCIe 4.0 rather than newer PCIe 5.0 lanes. Build quality (4.5) is reinforced by a rigid E3.S 7.5mm all-metal sled adhering to strict EDSFF data center specifications. Thermal management (4.2) maintains a controlled 5W idle to 25W load power envelope suited for enterprise front-to-back chassis airflow. Long-term reliability (4.6) is exceptional for QLC media, offering 31.92 PBW endurance, hardware-level power loss protection, and OCP 2.0 telemetry. Buyer value (4.3) excels through immense storage consolidation per rack unit despite the expected write-speed trade-offs inherent to high-capacity QLC arrays.
Audited 25 days ago
ⓘ Multi-Dimensional Index evaluated across 5 core engineering pillars. Refresh requests open every 60 days.
👥 Community Score
Community Score
— / 5.0
No community ratings submitted yet. Be the first to record your experience.
Your Community Audit
— / 5.0
Rate the 5 Sub-Index categories matching the site audit for a fair direct comparison:
Engineering & Core Performance (30%) —
Build Quality & Physical Design (20%) —
Thermal, Power & Acoustics (20%) —
Reliability & Stability (20%) —
Buyer Value (10%) —
or to submit.
Scores adjust dynamically as verified community ratings accumulate.
✔ Pros
  • Massive 30.72TB capacity in an ultra-compact 7.5mm E3.S EDSFF form factor
  • Optimized 8KB indirection unit enhances mixed write handling and mitigates QLC write amplification
  • Substantial 31.92 PBW endurance supported by hardware power loss protection and OCP 2.0 telemetry
  • Strong sequential read speeds reaching 7,000 MB/s and 934,500 random read IOPS
✖ Cons
  • PCIe 4.0 x4 bus rather than next-generation PCIe 5.0 interface
  • Sequential (3,000 MB/s) and random (120K IOPS) write speeds remain lower than enterprise TLC drives

Overview

The Solidigm D5-P5430 30.72TB E3.S represents an enterprise-grade storage solution engineered to deliver massive rack density using 192-layer 3D QLC NAND across an EDSFF 7.5mm form factor. Operating over a PCIe 4.0 x4 interface via the NVMe 1.4c protocol, the architecture is specifically tailored for read-intensive and data lake workloads, achieving up to 7,000 MB/s sequential reads and 934,500 random read IOPS. To counteract traditional QLC write-amplification challenges, the 30.72TB model integrates an optimized 8KB indirection unit, substantially improving garbage collection efficiency and endurance consistency during mixed and small-block I/O workloads.

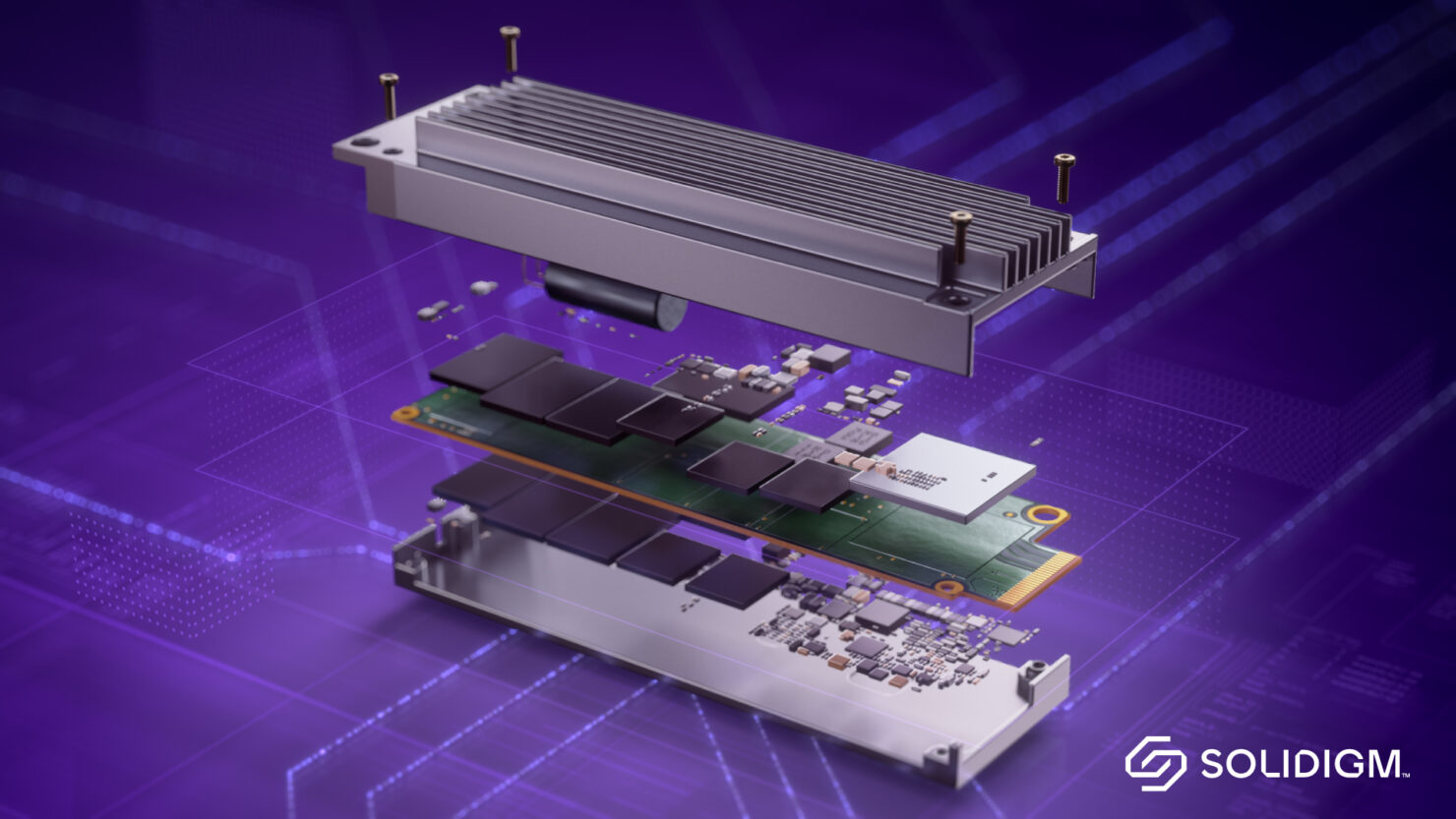

From a mechanical and thermal perspective, the drive is enclosed in a precision-engineered 7.5mm E3.S metallic casing designed to integrate directly into high-density 1U server chassis backplanes with front-to-back forced airflow. Operating power ranges from 5W at idle up to 25W under sustained peak loads, maintaining an efficient thermal profile that simplifies data center thermal management. Enterprise reliability is reinforced by dedicated power loss protection capacitors, comprehensive end-to-end ECC and CRC data protection, and robust OCP 2.0 telemetry support for real-time fleet monitoring and firmware health management across hyperscale environments.

Technical Specifications

Brand Solidigm
Model Solidigm D5-P5430 30.72TB E3.S
Capacity 30.72 TB
Form Factor E3.S 7.5mm
Interface PCIe 4.0 x4
Protocol NVMe 1.4c
Nand Type 192-layer 3D QLC
Indirection Unit 8KB
Sequential Read 7,000 MB/s
Sequential Write 3,000 MB/s
Random Read 4k 934,500 IOPS
Random Write 4k 120,000 IOPS
Endurance 31.92 PBW (0.58 DWPD)
Power Idle 5W
Power Load 25W
Power Loss Protection Hardware PLP Supported
Telemetry OCP 2.0
Security TCG Opal 2.0, FIPS 140-2 Level 2 options, Secure Boot
Data Protection End-to-end ECC and CRC
Warranty 5 Years
📋
