Overview

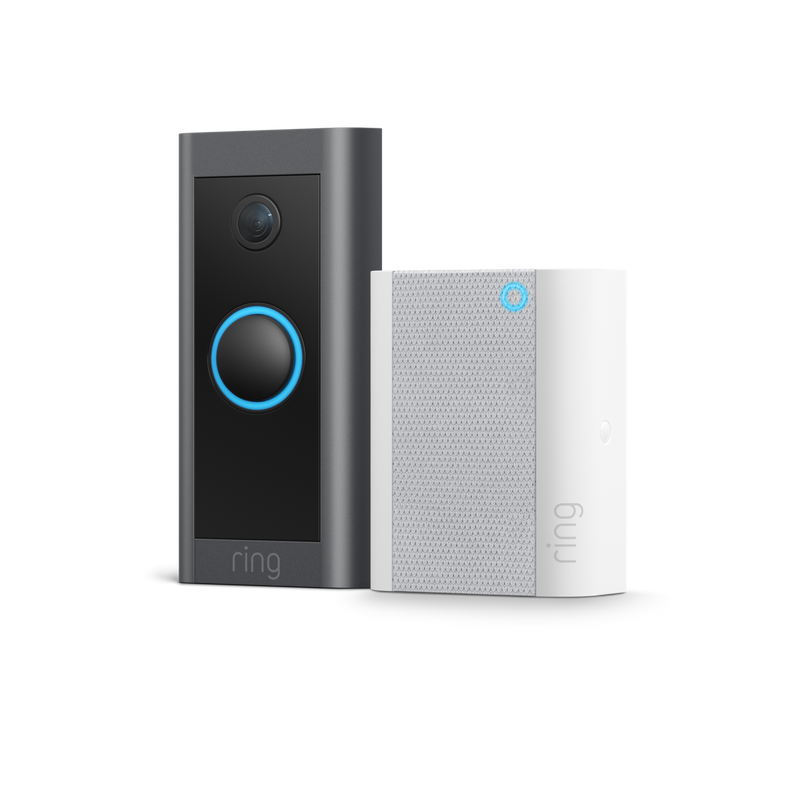

Relying on direct 10–24 VAC transformer lines rather than an internal lithium-ion battery, the Ring Video Doorbell Wired reconfigures standard residential low-voltage circuits through an essential electrical shunt mechanism. By inserting the included jumper cable across the terminal block of an existing mechanical chime, the installation continuously bypasses the traditional chime solenoid, routing uninterrupted current directly to the front entrance unit. This dedicated continuous feed completely sidesteps the cold-weather battery degradation, charge exhaustion, and winter shutdown cycles that plague battery-dependent units, while offloading audible in-home chime notifications to the bundled 2.4 GHz AC-powered Chime module.
The exterior enclosure measures a compact 3.98 x 1.80 x 0.88 in (101 x 45.7 x 22.4 mm) with a weight of 3.2 oz (91 g), constructed from weather-resistant black polycarbonate with a tamper-resistant security screw anchoring the base plate. Optical performance is driven by an image sensor capturing 1080p HD video at 30 fps across a 155° horizontal and 90° vertical field of view, complemented by high dynamic range processing and 850 nm infrared LEDs for night illumination. Thermal regulation is maintained passively without vents or moving parts, engineered to operate stably across ambient temperatures from -5°F to 120°F (-20°C to 50°C). Audio capture leverages an integrated microphone and speaker array engineered with acoustic echo cancellation to enable intelligible two-way voice communication in noisy outdoor environments.
Network communication relies exclusively on a single-band 802.11 b/g/n 2.4 GHz Wi-Fi transceiver, which ensures extended propagation through exterior building materials but lacks the throughput headroom and interference resistance of 5 GHz networks. Automated over-the-air firmware updates deploy regularly through the Amazon cloud infrastructure to maintain encryption protocols and improve motion detection algorithms. The operational trade-off centers on cloud tethering: while live video feeds and two-way voice functions operate out of the box, accessing motion-triggered recording archives requires an active Ring Protect subscription, as the unit contains no local microSD storage interface.
Technical Specifications
| Brand | Ring |
| Model | Video Doorbell Wired with Chime |
| Hardware Category | Smart Home & IoT |
| Video Resolution | 1080p HD (1920 x 1080) at 30 fps |
| Field Of View | 155° horizontal, 90° vertical |
| Night Vision | Infrared LEDs (850 nm) with IR cut filter |
| Audio Specification | Two-way talk with noise cancellation |
| Power Source | Hardwired (10–24 VAC, 40VA max, 50/60Hz or 24VDC) |
| Doorbell Dimensions | 3.98 x 1.80 x 0.88 in (101 x 45.7 x 22.4 mm) |
| Doorbell Weight | 3.2 oz (91 g) |
| Chime Dimensions | 3.06 x 2.44 x 0.98 in (77.8 x 62 x 25 mm) |
| Chime Power | Standard AC wall outlet (100–240 VAC, 50/60Hz) |
| Connectivity | Wi-Fi 802.11 b/g/n @ 2.4 GHz |
| Operating Temperature | -5°F to 120°F (-20°C to 50°C) |
| Weather Resistance | Weather-resistant rated outdoor enclosure |
| Mounting Security | Proprietary Torx security screw |
- Continuous transformer-fed power design eliminates battery degradation, maintenance downtime, and sub-freezing shutdown.
- Wide 155° horizontal and 90° vertical field of view with 1080p HDR video capture and 850 nm infrared night vision.
- Bundled Ring Chime provides multi-tone in-home acoustic alerting without relying solely on mobile notifications.
- Slim 1.80 in (45.7 mm) width easily mounts onto narrow exterior door trim and jambs.
- Mandatory jumper bypass renders existing in-home mechanical and digital chime boxes non-functional.
- Connectivity is restricted to single-band 2.4 GHz Wi-Fi without 5 GHz support.
- Absence of onboard microSD or local network storage necessitates an ongoing cloud subscription for video event recording.
