- Official IP53 weather resistance rating provides class-leading dust and moisture protection
- High-performance 5-axis in-body image stabilization enables sharp handheld shooting
- Modernized USB-C connectivity supports convenient in-camera charging and video streaming
- Compact and lightweight form factor weighing just 14.7 oz (417 g) for effortless travel
- Autofocus subject recognition is restricted to human subjects, omitting animal and vehicle tracking
- Underwhelming battery life from the legacy BLS-50 rechargeable lithium-ion pack
- Spongy and indistinct tactile feedback on the physical shutter release button
Overview

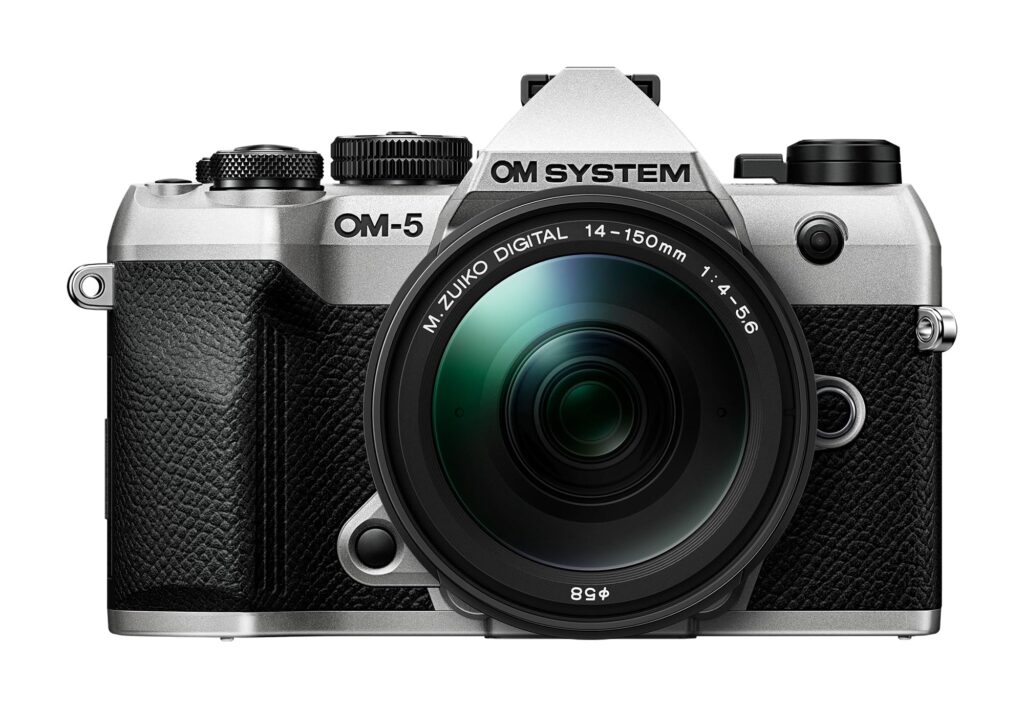

Carrying a thoroughly weather-sealed imaging setup into harsh environments without the burden of heavy equipment defines the primary appeal of this Micro Four Thirds package. Matched with the M.ZUIKO Digital ED 14-150mm f/4.0-5.6 II zoom lens, the combination delivers an expansive focal range in a remarkably portable form factor measuring 3.4 x 4.9 x 2.0 in (86.4 x 124.5 x 50.8 mm) with a body weight of just 14.7 oz (417 g). Outdoor durability is reinforced by official IP53-rated weather sealing, providing robust protection against rain and airborne dust that exceeds typical standards in this size class.
Core imaging architecture is anchored by a 20.0-megapixel Micro Four Thirds CMOS sensor paired with 5-axis in-body image stabilization, granting steady handheld shooting and facilitating specialized in-camera computational photography features. Framing is handled through a 2.36M-dot electronic viewfinder with 0.68x magnification alongside a 3.0-inch vari-angle touchscreen display. Connectivity is modernized with a versatile USB-C interface that supports in-camera battery replenishment and direct video streaming, complementing the dedicated micro HDMI port, dual 3.5mm microphone and headphone jacks, Wi-Fi, and Bluetooth.
Engineering trade-offs appear in the autofocus implementation and power subsystem. The hybrid phase and contrast detection autofocus system is limited strictly to human subject tracking, omitting the dedicated animal, bird, and vehicle detection algorithms found on higher-tier alternatives. Field endurance is also constrained by the compact BLS-50 rechargeable lithium-ion battery, while the tactile response of the shutter button feels spongy and indistinct under finger actuation. Furthermore, video capture tops out at 8-bit 4K30 without 10-bit color or higher frame rates, reinforcing the camera’s primary identity as an agile outdoor stills tool.
Technical Specifications
| Brand | OM SYSTEM |
| Model | OM-5 Mark II w/ M.ZUIKO Digital 14-150mm f4.0-5.6 II |
| Sensor Type | CMOS |
| Sensor Dimensions | 0.69 x 0.51 in (17.4 x 13.0 mm) |
| Effective Resolution | 20.0 Megapixels |
| Lens Mount | Micro Four Thirds |
| Included Kit Lens | M.ZUIKO Digital ED 14-150mm f/4.0-5.6 II |
| Image Stabilization | 5-Axis In-Body Image Stabilization (IBIS) |
| Environmental Sealing | IP53 |
| Sensitivity Range | ISO 64 - 25600 |
| Autofocus System | Hybrid phase and contrast detection with human subject tracking |
| Electronic Viewfinder | 2.36M-dot EVF (0.68x magnification) |
| Rear Display | 3.0-inch vari-angle touchscreen (1.04M dots) |
| Video Recording | 4K up to 30p (8-bit) |
| HDMI Output | 4:2:2 8-bit micro HDMI |
| Storage Interface | 1x SDXC slot (UHS-II compliant) |
| Wired Connectivity | USB-C (charging and streaming), micro HDMI, 3.5mm microphone input, 3.5mm headphone output |
| Wireless Connectivity | Wi-Fi, Bluetooth |
| Battery Model | BLS-50 rechargeable lithium-ion |
| Body Dimensions | 3.4 x 4.9 x 2.0 in (86.4 x 124.5 x 50.8 mm) |
| Body Weight | 14.7 oz (417 g) |
Primary Sources & Audited Citations
Recommended Alternatives in Cameras & Photography
At a Glance
How reliable is the OM SYSTEM OM-5 Mark II w/ M.ZUIKO Digital 14-150mm f4.0-5.6 II Review: Weatherproof Agility Meets Legacy Limits according to Mizex audits?
An exceptional weather-resistant travel kit for outdoor stills photographers who prioritize IP53 sealing and 5-axis stabilization over advanced subject-tracking autofocus and extended battery endurance.
What are the known quirks or drawbacks of the OM SYSTEM OM-5 Mark II w/ M.ZUIKO Digital 14-150mm f4.0-5.6 II Review: Weatherproof Agility Meets Legacy Limits?
Our reliability audit identified the following documented caveats:
- Autofocus subject recognition is restricted to human subjects, omitting animal and vehicle tracking
- Underwhelming battery life from the legacy BLS-50 rechargeable lithium-ion pack
- Spongy and indistinct tactile feedback on the physical shutter release button
What are the key engineering highlights of the OM SYSTEM OM-5 Mark II w/ M.ZUIKO Digital 14-150mm f4.0-5.6 II Review: Weatherproof Agility Meets Legacy Limits?
The top strengths recorded in our evaluation include:
- Official IP53 weather resistance rating provides class-leading dust and moisture protection
- High-performance 5-axis in-body image stabilization enables sharp handheld shooting
- Modernized USB-C connectivity supports convenient in-camera charging and video streaming
- Compact and lightweight form factor weighing just 14.7 oz (417 g) for effortless travel
